Marine horizontal self-priming centrifugal pump CZY Series

1. General

CZY Series marine horizontal self-priming centrifugal pump is based on the technical information at home and abroad as digestion, absorption, and improved pumps developed from the latest products, widely used in the oil, gas stations, oil tankers, terminals, respectively transportation gasoline, kerosene, diesel, jet fuel, such as the use of mechanical seals and corrosion resistant stainless steel can also be applied to chemical, pharmaceutical, brewing, electroplating, printing and dyeing, paper, electricity, such as mines, transmission medium temperature -20°C-80°C, the viscosity of 100 cp, solid content of up to 30 percent.

2. Main technical parameter

No. Pump type Flow (m³/h) Head (m) Speed (r/min) NPSH (r/m) Shaft power (kW) Motor power (kW)
1 25CZY-20 3.2 20 2900 3.5 0.935 1.1kW, Y80M2-2-H
2 25CZY-32 3.2 32 2900 3.5 1.27 1.5kW, Y90S-2-H
3 40CZY-20 6.5 20 2900 3.5 0.935 1.1kW, 80M2-2-H
4 40CZY-25 6.5 25 2900 3.5 1.87 2.2kW, Y90L-2-H
5 40CZY-32 6.5 32 2900 3.5 1.87 2.2kW, Y90L-2-H
6 40CZY-40 6.5 42 2900 3.5 3.4 4kW, Y112M-2-H
7 50CZY-25 12.5 25 2900 3.5 1.87 2.2kW, Y90L-2-H
8 50CZY-32 12.5 32 2900 3.5 2.55 3kW, Y100L-2-H
9 50CZY-35 14 35 2900 3.5 3.4 4kW, Y112M-2-H
10 50CZY-40 12.5 40 2900 3.5 3.4 4kW, Y112M-2-H
11 50CZY-50 12.5 50 2900 3.5 4.67 5.5kW, Y132S-2-H
12 50CZY-60 15 60 2900 3.5 6.37 7.5kW, Y132S-2-H
13 50CZY-70 20 70 2900 3.5 9.35 11kW, Y160M-2-H
14 50CZY-75 20 75 2900 3.5 9.35 11kW, Y160M-2-H
15 50CZY-160 18 160 2900 3.5 18.7 22kW, Y180M-2-H
16 65CZY-15 30 15 2900 3.5 2.56 3kW, Y100L-2-H
17 65CZY-25 25 25 2900 3.5 3.4 4kW, Y112M-2-H
18 65CZY-32 25 32 2900 3.5 4.67 5.5kW, Y132S2-2-H
19 65CZY-40 25 40 2900 3.5 6.37 7.5kW, Y132S2-2-H
20 65CZY-50 25 50 2900 3.5 6.37 7.5kW, Y132S2-2-H
21 65CZY-63 25 63 2900 3.5 9.35 11kW, Y160M-2-H
22 65CZY-70 25 70 2900 3.5 12.75 15kW, Y160M-2-H
23 80CZY-13 35 13 2900 3.5 2.55 3kW, Y100L-2-H
24 80CZY-17 43 17 2900 3.5 3.4 4kW, Y112M-2-H
25 80CZY-22 40 22 2900 3.5 4.67 5.5kW, Y132S2-2-H
26 80CZY-25 50 25 2900 3.5 6.37 7.5kW, Y132S2-2-H
27 80CZY-32 50 32 2900 3.5 6.37 7.5kW, Y132S2-2-H
28 80CZY-40 50 40 2900 3.5 9.35 11kW, Y160M-2-H
29 80CZY-50 50 50 2900 3.5 12.75 15kW, Y160M-2-H
30 80CZY-55 60 55 2900 3.5 15.72 18.5kW, Y160L-2-H
31 80CZY-63 50 63 2900 3.5 15.72 18.5kW, Y160L-2-H
32 80CZY-70 60 70 2900 3.5 18.7 22kW, Y180M-2-H
33 80CZY-80 50 80 2900 3.5 18.7 22kW, Y180M-2-H
34 80CZY-120 70 120 2900 3.5 63.75 75kW, Y280S-2-H
35 80CZY-130 25 130 2900 3.5 46.75 55kW, Y250M-2-H
36 100CZY-20 100 20 2900 3.5 9.35 11kW, Y160M-2-H
37 100CZY-32 100 32 2900 3.5 12.75 15kW, Y160M-2-H
38 100CZY-40 100 40 2900 3.5 18.7 22kW, Y180M-2-H
39 100CZY-40 (1) 100 40 1450 3.5 18.7 22kW, Y180L-4-H
40 100CZY-40A 120 30 2900 3.5 18.7 22kW, Y180M-2-H
41 100CZY-42 100 42 2900 3.5 18.7 22kW, Y180M-2-H
42 100CZY-50 100 50 2900 3.5 25.5 30kW, Y200L1-2-H
43 100CZY-63 100 63 2900 3.5 25.5 30kW, Y200L1-2-H
44 100CZY-75 70 75 2900 3.5 25.5 30kW, Y200L1-2-H
45 100CZY-80 100 80 2900 3.5 38.25 45kW, Y225M-2-H
46 125CZY-120 70 120 2900 3.5 63.75 75kW, Y280S-2-H
47 125CZY-32 160 32 2900 3.5 25.5 30kW, Y200L1-2-H
48 125CZY-35 200 32 2900 3.5 31.45 37kW, Y200L2-2-H
49 125CZY-60 120 60 2900 3.5 31.45 37kW, Y200L2-2-H
50 125CZY-70 150 70 2900 3.5 46.75 55kW, Y250M-2-H
51 125CZY-125 200 125 2900 4 112.2 132kW, Y315M-2-H
52 150CZY-32 200 32 1450 4 31.45 37kW, Y225S-4-H
53 150CZY-45 170 45 2900 4 38.25 45kW, Y225M-2-H
54 150CZY-50 200 50 1450 4 46.75 55kW, Y250M-4-H
55 150CZY-55 170 55 2900 4 46.75 55kW, Y250M-2-H
56 150CZY-60 200 50 2900 4 63.75 75kW, Y280S-2-H
57 150CZY-63 200 63 1450 4 76.5 90kW, Y280S-4-H
58 150CZY-65 200 65 2900 4 63.75 75kW, Y280S-2-H
59 150CZY-70 150 70 2900 4 46.75 55kW, Y250M-2-H
60 150CZY-80A 160 80 2900 4 63.75 75kW, Y280S-2-H
61 150CZY-80 200 80 1450 4 93.5 110kW, Y315S-4-H
62 200CZY-30 300 30 1450 4 38.25 45kW, Y225M-4-H
63 200CZY-32 400 32 1450 4 46.75 55kW, Y280S-4-H
64 300CZY-33 200 33 1450 4 31.45 37kW, Y225S-4-H
65 200CZY-50 400 50 1450 5 76.5 90kW, Y280S-4-H
66 200CZY-50A 200 50 1450 5 46.75 55kW, Y250M-4-H
67 200CZY-63 400 63 1450 5 93.5 110kW, Y315S-4-H
68 200CZY-63A 280 63 1450 5 76.5 90kW, Y280S-4-H
69 200CZY-65 350 65 1450 5 93.5 110kW, Y315S-4-H
70 200CZY-75 400 75 1450 4 112.2 132kW, Y315M-4-H
71 200CZY-85 300 85 1450 5 136 160kW, Y315M-4-H
72 250CZY-32 550 32 1450 5.5 63.75 75kW, Y280S-4-H
73 250CZY-50 400 50 1450 5.5 76.5 90kW, Y280S-4-H
74 250CZY-55 450 55 1450 5.5 93.5 110kW, Y315S-4-H
75 250CZY-75 400 75 1450 5.5 112.2 132kW, Y315M-4-H
76 250CZY-85 300 85 1450 5.5 136 160kW, Y315L-4-H
77 250CZY-100 500 100 1450 5.5 267.7 315kW, Y355L2-4-H
78 300CZY-10 820 10 960 5.8 63.75 75kW, Y315S-6-H
79 300CZY-20 700 20 1450 5.8 63.75 75kW, Y280S-4-H
80 300CZY-32 600 32 1450 5.8 76.5 90kW, Y280M-4-H
81 300CZY-50 550 50 1450 5.8 112.2 132kW, Y315M-4-H
82 300CZY-55 550 50 1450 5.8 136 160kW, Y315M-4-H
83 300CZY-60 600 60 1450 5.8 136 160kW, Y315M-4-H
84 300CZY-100 550 100 1450 5.8 300 355kW, Y4001-4-H

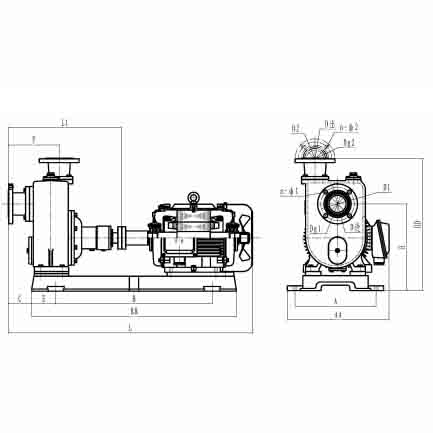

3. Contour and installation size of pump

Type L BB B F L1 AA A H HD D1 Dg n-φ1 DC D2 Dg2 n-φ2
25CZY-20 705 550 282 170 370 315 270 410 110 25 4-φ15 140 110 25 4-φ15
25CZY-32 705 550 282 170 370 315 270 410 110 25 4-φ15 140 110 25 4-φ15
40CZY-20 690 550 282 170 370 315 270 410 110 40 4-φ15 150 110 40 4-φ15
40CZY-25 705 550 2820 170 370 310 320 410 110 40 4-φ15 150 110 40 4-φ15
40CZY-32 705 550 282 170 370 315 270 410 100 40 4-φ15 140 100 40 4-φ15
40WZ-40 705 550 282 170 370 315 270 410 100 40 4-φ15 140 100 40 4-φ15
50CZY-25 705 550 2820 170 370 310 320 410 125 50 4-φ16 165 1255 50 4-φ16
50CZY-32 800 650 410 151 394 360 310 320 500 125 50 4-φ16 165 125 50 4-φ16
50CZY-35 800 650 410 151 394 360 310 320 500 125 50 4-φ16 165 125 50 4-φ16
50CZY-40 800 550 282 170 370 315 270 410 125 50 4-φ16 165 125 50 4-φ16
50CZY-50 868 750 490 250 400 360 320 310 525 125 50 4-φ16 165 125 50 4-φ16
50CZY-60 868 750 490 250 400 360 320 310 525 125 50 4-φ16 165 125 50 4-φ16
50CZY-70 868 750 490 250 400 360 320 310 525 125 50 4-φ16 165 125 50 4-φ16
50CZY-75 868 750 490 250 400 360 320 310 525 125 50 4-φ16 165 125 50 4-φ16
50CZY-160 1575 1235 920 250 850 456 320 310 525 125 50 4-φ16 165 125 50 4-φ16
65CZY-15 800 650 410 151 394 360 310 320 500 185 65 4-φ16 185 145 65 4-φ16
65CZY-25 800 650 410 151 394 360 310 320 500 185 65 4-φ16 185 145 65 4-φ16
65CZY-32 1023 805 565 260 537 450 378 307 535 185 65 4-φ18 185 145 65 4-φ18
65CZY-40 970 805 565 190 485 450 378 307 535 185 65 4-φ18 185 145 65 4-φ18
65CZY-50 970 805 565 190 485 450 378 307 535 185 65 4-φ18 185 145 65 4-φ18
65CZY-63 1095 936 724 191 485 466 378 410 508 185 65 4-φ18 200 185 65 4-φ18
65CZY-70 1095 936 724 191 485 466 378 410 508 185 65 4-φ18 200 185 65 4-φ18
80CZY-13 1016 802 562 265 531 435 369 375 570 160 80 8-φ18 200 160 80 8-φ18
80CZY-17 1016 802 562 265 531 435 369 375 570 160 80 8-φ18 200 160 80 8-φ18
80CZY-22 1016 802 562 265 531 435 369 375 570 160 80 8-φ18 200 160 80 8-φ18
80CZY-25 1016 802 562 265 531 435 369 375 570 160 80 8-φ18 200 160 80 8-φ18
80CZY-32 1016 802 562 265 531 435 369 374 564 160 80 8-φ18 200 160 80 8-φ18
80CZY-40 1144 955 725 241 535 500 420 400 614 160 80 8-φ18 200 160 80 8-φ18
80CZY-50 1188 955 725 241 535 500 420 400 614 160 80 8-φ18 200 160 80 8-φ18
80CZY-55 1190 986 725 235 535 500 420 400 620 160 80 8-φ18 200 160 80 8-φ18
80CZY-63 1139 936 725 192 485 500 420 407 595 160 80 8-φ18 200 160 80 8-φ18
80CZY-70 1212 1008 840 222 535 496 420 447 650 160 80 8-φ18 220 180 80 8-φ18
80CZY-80 1212 1008 840 222 535 496 420 447 650 160 80 8-φ18 220 180 80 8-φ18
80CZY-120 1212 1008 840 222 535 496 420 447 650 160 80 8-φ18 220 180 80 8-φ18
80CZY-130 1212 1008 840 222 535 496 420 447 650 160 80 8-φ18 220 180 80 8-φ18
100CZY-20 1158 966 725 251 548 480 400 385 594 160 100 8-φ18 220 180 100 8-φ18
100CZY-32 1150 960 725 251 535 500 420 400 620 210 100 8-φ18 250 210 100 8-φ18
100CZY-40 1150 960 725 251 535 500 420 400 620 210 100 8-φ18 250 210 100 8-φ18
100CZY-40 (1) 1150 960 725 251 535 500 420 400 620 210 125 8-φ18 250 210 100 8-φ18
100CZY-40A 1150 960 725 251 535 500 420 400 620 210 100 8-φ18 250 210 100 8-φ18
100CZY-42 1150 960 725 251 535 500 420 400 620 210 100 8-φ18 250 210 100 8-φ18
100CZY-50 1382 1144 845 261 603 550 490 442 646 180 100 8-φ18 250 210 100 8-φ18
100CZY-63 1382 1144 845 261 603 550 490 442 646 180 100 8-φ18 250 210 100 8-φ18
100CZY-75 1382 1144 845 261 603 550 490 442 646 180 100 8-φ18 250 210 100 8-φ18
100CZY-80 1443 1144 845 261 603 620 490 488 692 180 100 8-φ18 220 210 100 8-φ18
100CZY-120 1443 1144 845 261 603 620 490 488 692 180 100 8-φ18 220 210 100 8-φ18
125CZY-32 1382 1144 845 261 603 550 490 442 646 210 125 8-φ18 240 250 125 8-φ18
125CZY-35 1382 1144 845 261 603 550 490 442 646 210 125 8-φ18 240 250 125 8-φ18
125CZY-60 1557 1234 780 261 612 723 600 514 718 210 125 8-φ18 250 240 125 8-φ18
125CZY-70 1557 1234 780 261 612 723 600 514 718 210 125 8-φ18 250 240 125 8-φ18
125CZY-125 1557 1234 780 261 612 723 600 514 718 210 125 8-φ18 250 240 125 8-φ18
150CZY-32 1700 1235 780 235 676 550 460 540 755 240 150 8-φ18 285 240 150 8-φ18
150CZY-45 1898 1515 114 379 950 630 540 782 106 240 150 8-φ18 285 240 150 8-φ18
150CZY-50 1898 1515 114 379 950 630 540 782 106 240 150 8-φ18 285 240 150 8-φ18
150CZY-55 1898 1515 114 379 950 630 540 782 106 240 150 8-φ18 285 240 150 8-φ18
150CZY-60 1898 1515 114 379 950 630 540 782 106 240 150 8-φ18 285 240 150 8-φ18
150CZY-63 1990 1605 120 386 968 680 640 855 112 240 150 8-φ18 285 240 150 8-φ18
150CZY-65 1990 1605 120 386 968 680 640 855 112 240 150 8-φ18 285 240 150 8-φ18
150CZY-70 1990 1605 120 386 968 680 640 855 112 240 150 8-φ18 285 240 150 8-φ18
150CZY-80A 2112 1682 130 469 104 805 640 940 125 240 150 8-φ18 285 240 150 8-φ18
150CZY-80 2112 1682 130 469 104 805 640 940 125 240 150 8-φ18 285 240 150 8-φ18
200CZY-30 1898 1515 114 375 950 635 540 782 105 295 200 12-φ22 340 295 200 12-φ22
200CZY-32 1898 1515 114 375 950 635 540 782 105 295 200 12-φ22 340 295 200 12-φ22
200CZY-33 1898 1515 114 375 950 635 540 782 105 295 200 12-φ22 340 295 200 12-φ22
200CZY-50 2020 1611 114 375 950 635 540 782 105 295 200 12-φ22 340 295 200 12-φ22
200CZY-50A 1900 1515 114 375 950 635 540 782 105 295 200 12-φ22 340 295 200 12-φ22
200CZY-63 2260 1736 1300 479 1050 805 640 940 1256 295 200 12-φ22 340 295 200 12-φ22
200CZY-63A 2260 1736 1300 479 1050 805 640 940 1256

Note: The description may be different with the product, please contact us for quotation.
