Marine horizontal centrifugal pump CB Series

Marine horizontal centrifugal pump CB Series

Place of Origin: Made In China
Delivery Time: 15-30 days
Click here to send inquiry via whatsapp

Category:

Marine horizontal centrifugal pump CB Series

1. General

CB Series marine horizontal centrifugal pumps are applicable to fire control, cooling and sanitation and applied to industries, to city water supply and drain, and farming agricultural and orchard irrigation.

2. Main technical parameter

No. Pump Type Flow (m³/h) Head (m) Speed (r/min) NPSH (m) Shaft Power (kW) Motor Power (kW)
1 2CB-6 10 34.5 2900 4.0 3.4 4 kW, Y112M-2-H
20 30.8
30 24
2 2CB-6A 10 28.5 2900 4.0 2.5 3 kW, Y100L-2-H
20 25.2
30 20
3 2CB-9 11 21 2900 4.0 1.87 2.2kW, Y90L-2-H
20 18.5
25 16
4 2CB-9A 10 16.8 2900 4.0 1.87 2.2 kW, Y90L-2-H
17 15
22 13
5 3CB-6 30 62 2900 4.5 12.5 15kW, Y160M-2-H
45 57
60 50
70 44.5
6 3CB-6A 30 45 2900 4.5 9.35 11 kW, Y160M-2-H
40 41.5
50 37
60 30
7 3CB-9 30 35.5 2900 4.5 6.37 7.5 kW, Y132S-2-H
45 32.6
55 28.8
8 3CB-9A 25 21.5 2900 4.5 3.4 4 kW, Y112M-2-H
35 19.7
45 17.4
9 3CB-13 32.4 21.5 2900 4.5 3.4 4 kW, Y112M-2-H
45.0 18.8
52.2 15.6
10 3CB-13A 29.5 17.4 2900 4.5 3.4 4 kW, Y112M-2-H
39.6 15.0
48.6 12.0
11 4CB-6 65 98 2900 4.5 46.75 55 kW, Y250M-2-H
90 91
115 81
12 4CB-6A 135 72.5 2900 4.5 31.45 37 kW, Y200L2-2-H
65 82
85 76
13 4CB-8 70 59 2900 5.0 25.5 30kW, Y200L1-2-H
90 54.2
109 47.8
120 43
14 4CB-8A 70 48 2900 5.0 18.7 22 kW, Y180M-2-H
90 43
109 36.8
15 4CB-12 65 37.7 2900 5.0 12.75 15 kW, Y160M-2-H
90 34.6
120 28
16 4CB-12A 60 31.6 2900 5.0 9.35 11 kW, Y160M-2-H
85 28.6
110 23.3
17 4CB-18 65 22.6 2900 5.0 9.35 11 kW, Y160M-2-H
90 20
110 17.1
18 4CB-18A 60 17.2 2900 5.0 6.375 7.5 kW, Y132S-2-H
80 15.2
95 13.2
19 4CB-25 54 17.6 2900 5.0 4.675 5.5 kW, Y132S1-2-H
79 14.8
99 10
20 4CB-25A 50 14 2900 5.0 3.4 4 kW, Y112M-2-H
72 11
86 8.5
21 6CB-8 110 36.5 1450 5.2 25.5 30 kW, Y200L-4-H
140 35.9
170 32.5
200 29.2
22 6CB-8A 110 30.5 1450 5.5 18.7 22 kW, Y180L-4-H
140 28.6
170 25.8
200 21.3
23 6CB-12 110 22.7 1450 5.5 12.75 15 kW, Y160L-4-H
160 20.1
200 17.1
24 6CB-12A 95 17.8 1450 5.5 9.35 11 kW, Y160M-4-H
150 15
180 12.6
25 6CB-18 126 14.3 1450 5.5 6.375 7.5 kW, Y132M-4-H
162 12.5
187 9.6
26 6CB-18A 115 11 1450 5.5 6.375 7.5 kW, Y132M-4-H
144 9.5
162 8
27 8CB-12 220 32 1450 5.5 31.45 37 kW, Y225S-4-H
280 29.1
340 25.4
28 8CB-12A 220 26 1450 5.5 25.5 30 kW, Y200L-4-H
250 24
290 21.8
29 8CB-18 220 20 1450 5.5 18.7 22 kW, Y180L-4-H
285 18
360 14
30 8CB-18A 220 17.5 1450 5.5 12.75 15 kW, Y160L-4-H
260 15.7
320 12.7
31 8CB-25 216 14.5 1450 5.5 12.75 15 kW, Y160L-4-H
270 12.7
324 11.0
32 8CB-25A 191 11.4 1450 5.5 6.35 11 kW, Y160M-4-H
238 9.9
285 8.6
33 10CB-22 400 22.5 1450 6.0 38.25 45 kW, Y225M-4-H
550 20
670 16
34 10CB-5 450 9.5 1450 6.0 38.25 45 kW, Y225M-4-H
680 8
860 5.5

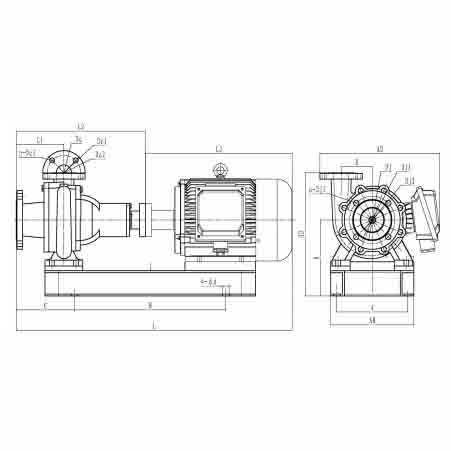

3. Contour and installation size of pump

Type L L1 L2 L3 AB A AD B C H HD E
2CB-6 756 134 349 407 250 225 353 400 162 200 343 104
2CB-6A 726 134 349 387 250 225 353 400 162 200 343 104
2CB-9 664 115 303 359 206 181 307 370 140 190 315 80
2CB-9A 664 115 303 359 206 181 307 370 140 190 315 80
3CB-6 1054 158 444 607 320 295 436 600 198 235 428 124
3CB-6A 1054 158 444 607 320 295 436 600 198 235 428 124
3CB-9 913 158 428 484 275 235 396 500 193 240 387 103
3CB-9A 913 158 428 484 275 235 396 500 193 240 387 103
3CB-13 747 140 340 407 245 220 349 440 166 215 345 90
3CB-13A 747 140 340 407 245 220 349 440 166 215 345 90
4CB-6 1418 166 503 913 490 440 615 900 194 350 590 158
4CB-6A 1333 166 503 828 490 440 615 900 194 350 590 158
4CB-8 1200 147 421 777 382 350 528 740 187 300 525 135
4CB-8A 1125 147 421 702 382 350 528 740 187 300 525 135
4CB-12 1088 170 469 618 350 325 468 600 218 230 415 117
4CB-12A 1088 170 469 618 350 325 468 600 218 230 415 117
4CB-18 1050 160 443 607 320 290 442 640 177 250 400 108
4CB-18A 930 160 443 487 320 290 442 640 177 250 400 108
4CB-25 920 160 437 483 275 250 414 520 187 210 360 98
4CB-25A 920 160 437 483 275 250 414 520 187 210 360 98
6CB-8 1296 168 517 777 430 390 592 800 189 350 600 180
6CB-8A 1221 168 517 702 430 390 592 800 189 350 600 180
6CB-12 1220 176 565 652 430 390 527 710 226 319 567 177
6CB-12A 1220 176 565 652 430 390 527 710 226 319 567 177
6CB-18 986 176 499 485 400 360 502 560 191 320 537 164
6CB-18A 986 176 499 485 400 360 502 560 191 320 537 164
8CB-12 1342 187 537 803 480 440 708 800 222 400 690 220
8CB-12A 1342 187 537 803 480 440 708 800 222 400 690 220
8CB-18 1263 191 544 717 410 370 576 700 210 350 640 175
8CB-18A 1173 191 544 627 410 370 576 700 210 350 640 175
8CB-25 1256 203 602 652 500 460 552 700 247 355 632 168
8CB-25A 1256 203 602 652 500 460 552 700 247 355 632 168
10CB-22 1597 203 701 892 574 534 692 900 298 416 765 235
10CB-5 1597 203 701 892 574 534 692 900 298 416 765 235
Type 4-Ød Dj Dj1 Dj2 n-dDj3 Dc Dc1 Dc2 n-dDc3
2CB-6 4-Ø14 140 110 50 4-Ø14 130 100 40 4-Ø14
2CB-6A 4-Ø14 140 110 50 4-Ø14 130 100 40 4-Ø14
2CB-9 4-Ø14 140 110 50 4-Ø14 130 100 40 4-Ø14
2CB-9A 4-Ø14 140 110 50 4-Ø14 130 100 40 4-Ø14
3CB-6 4-Ø14 185 150 80 4-Ø18 140 110 50 4-Ø14
3CB-6A 4-Ø14 185 150 80 4-Ø18 140 110 50 4-Ø14
3CB-9 4-Ø22 185 150 80 4-Ø18 140 110 50 4-Ø14
3CB-9A 4-Ø22 185 150 80 4-Ø18 140 110 50 4-Ø14
3CB-13 4-Ø14 185 150 80 4-Ø18 160 130 65 4-Ø14
3CB-13A 4-Ø14 185 150 80 4-Ø18 160 130 65 4-Ø14
4CB-6 4-Ø22 205 170 100 4-Ø18 185 150 80 4-Ø18
4CB-6A 4-Ø22 205 170 100 4-Ø18 185 150 80 4-Ø18
4CB-8 4-Ø22 205 170 100 4-Ø18 185 150 80 4-Ø18
4CB-8A 4-Ø22 205 170 100 4-Ø18 185 150 80 4-Ø18
4CB-12 4-Ø22 205 170 100 4-Ø18 185 150 80 4-Ø18
4CB-12A 4-Ø22 205 170 100 4-Ø18 185 150 80 4-Ø18
4CB-18 4-Ø22 205 170 100 4-Ø18 185 150 80 4-Ø18
4CB-18A 4-Ø22 205 170 100 4-Ø18 185 150 80 4-Ø18
4CB-25 4-Ø14 205 170 100 4-Ø18 185 150 80 4-Ø18
4CB-25A 4-Ø14 205 170 100 4-Ø18 185 150 80 4-Ø18
6CB-8 4-Ø22 260 225 150 8-Ø18 205 170 100 4-Ø18
6CB-8A 4-Ø22 260 225 150 8-Ø18 205 170 100 4-Ø18
6CB-12 4-Ø22 260 225 150 8-Ø18 205 170 100 4-Ø18
6CB-12A 4-Ø22 260 225 150 8-Ø18 205 170 100 4-Ø18
6CB-18 4-Ø22 260 225 150 8-Ø18 235 200 125 8-Ø18
6CB-18A 4-Ø22 260 225 150 8-Ø18 235 200 125 8-Ø18
8CB-12 4-Ø22 315 280 200 8-Ø18 260 225 150 8-Ø18
8CB-12A 4-Ø22 315 280 200 8-Ø18 260 225 150 8-Ø18
8CB-18 4-Ø22 315 280 200 8-Ø18 260 225 150 8-Ø18
8CB-18A 4-Ø22 315 280 200 8-Ø18 260 225 150 8-Ø18
8CB-25 4-Ø22 315 280 200 8-Ø18 260 225 150 8-Ø18
8CB-25A 4-Ø22 315 280 200 8-Ø18 260 225 150 8-Ø18
10CB-22 4-Ø22 400 335 250 12-Ø18 340 295 200 8-Ø18
10CB-5 4-Ø22 400 335 250 12-Ø18 340 295 200 8-Ø18

Note: The description may be different with the product, please contact us for quotation.
