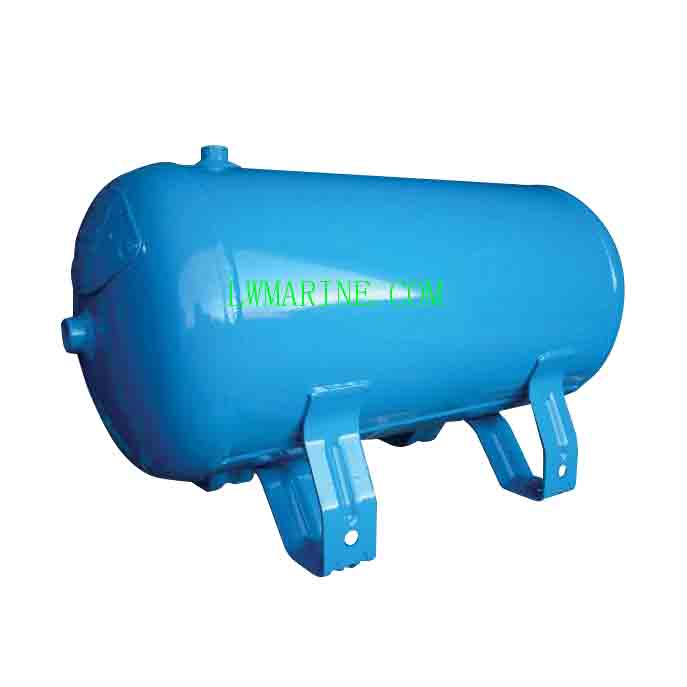

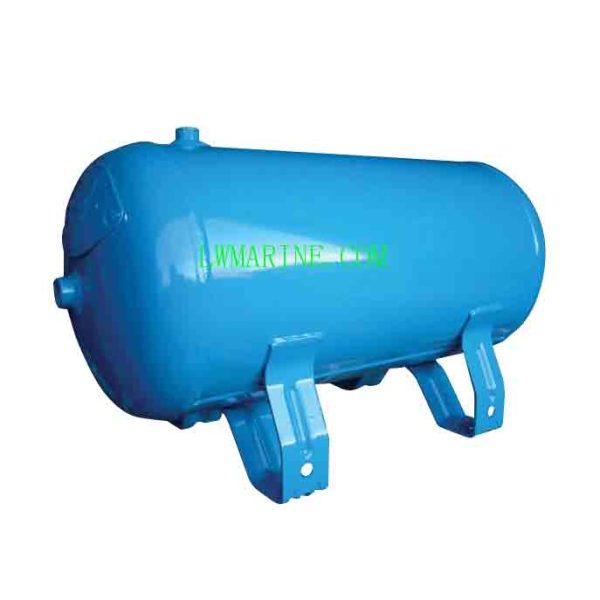

Marine Horizontal Air Receiver | Class-Certified Compressed Air Storage Tank
High-Capacity Horizontal Air Receivers for Marine Applications
Our marine horizontal air receiver is classification society-approved pressure vessels designed specifically for shipboard compressed air systems. These robust horizontal tanks provide critical air storage, moisture separation, and pressure stabilization for various marine applications while ensuring complete compliance with international marine standards.
Key Features & Benefits
✔ Major Classification Certifications – ABS, CCS, BV, LR, RINA and other class approvals
✔ Advanced Moisture Separation – Removes impurities to protect downstream equipment
✔ Premium Sealing Technology – Zero-leak performance with food-grade natural rubber diaphragm
✔ Extended Service Life – 200,000+ cycle rating for long-term reliability
✔ Pressure Stabilization – Eliminates pulsation and ensures consistent air delivery
Technical Specifications
| Model | Capacity (m³) | Design Pressure (MPa) | Working Pressure (MPa) | Temperature Rating | Dimensions (D×L×H mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| B0.63-3.0 | 0.63 | 3.3 | 3.0 | 100°C | 700×1800×1470 | 655 |
| B0.8-3.0 | 0.8 | 3.3 | 3.0 | 100°C | 700×2270×1470 | 780 |
| B1.0-3.0 | 1.0 | 3.3 | 3.0 | 100°C | 800×2200×1580 | 950 |
| B1.6-3.0 | 1.6 | 3.3 | 3.0 | 100°C | 900×2740×1680 | 1180 |
| B2.5-3.0 | 2.5 | 3.3 | 3.0 | 100°C | 1100×2890×1940 | 1925 |
| B4.0-3.0 | 4.0 | 3.3 | 3.0 | 100°C | 1200×3815×2040 | 2650 |
| B6.3-3.0 | 6.3 | 3.3 | 3.0 | 100°C | 1400×4400×2265 | 4230 |
| B8.0-3.0 | 8.0 | 3.3 | 3.0 | 100°C | 1500×4850×2365 | 4936 |
| B10-3.0 | 10 | 3.3 | 3.0 | 100°C | 1600×5320×2505 | 5785 |
| B12-3.0 | 12 | 3.3 | 3.0 | 100°C | 1700×6220×2605 | 7500 |
| B14-3.0 | 14 | 3.3 | 3.0 | 100°C | 1800×5880×2750 | 8770 |
Custom configurations and sizes available to meet specific vessel requirements
Applications & Marine Functions
Critical Shipboard Applications:
-
Main engine starting systems
-
Pneumatic tool operations
-
Control air and instrumentation
-
Air brake systems
-
Emergency system activation
System Performance Benefits:
-
Buffer capacity for intermittent air demands
-
Moisture and contaminant removal for cleaner air
-
Pressure regulation and system stability
-
Reduced compressor cycling for energy efficiency
The description/sizes may be different with goods, please check with us when order.
