Marine Helm Chair

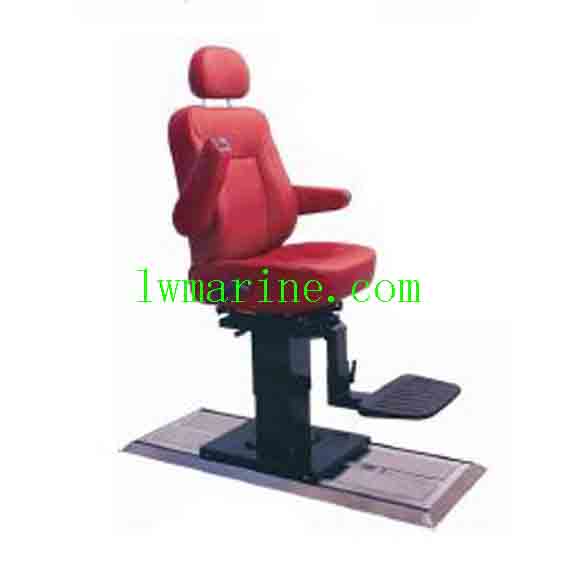

Marine Helm Chair & Marine Pilot Chair with Square Steel Column – Model No: TR-005

Elevate your maritime experience with our top-tier Marine Helm Chair and Marine Pilot Chair, featuring a robust square steel column design (Model No: TR-005). This premium chair is engineered to provide unparalleled comfort, durability, and functionality, making it an ideal choice for both professional marine pilots and boat enthusiasts.

Key Features:

1. Square Steel Pillar Pedestal: Equipped with an air-operated lifting system for effortless height adjustments.
2. Wire Control Guide Rail Type: Ensures smooth and precise movements.
3. Ergonomic Design: Tailored to fit the natural contours of your body, reducing fatigue during long voyages.
4. Strong Slideway: The seat moves seamlessly along a sturdy slideway, enhancing maneuverability.
5. Adjustable Backrest and Headrest: Customize your seating position for optimal comfort.
6. Seat Height and Angle Adjustment: Fine-tune your seat height and angle for the perfect driving posture.
7. Movable Seat: Forward and backward movement capability for added flexibility.
8. Foldable/Angle Adjustable Armrests: Comfortable armrests that can be folded or adjusted to your preferred angle.
9. 360° Swivel Mechanism with Multi-Point Positioning: Allows for easy rotation and secure locking in multiple positions.
10. Height Adjustable/Foldable Footrest: Provides additional support and can be adjusted or folded away as needed.
11. Strong Lifting Column with Saltwater Resistance and Shock Absorber: Built to withstand harsh marine conditions and provide a smooth ride.

Materials:

• Slide Guide Rail and Positioning Base: Made of steel for durability.
• Mosaic Bevel Edge Decorative: Crafted from stainless steel for a sleek finish.
• Mobile Base and Lifting Columns: Constructed from steel and stainless steel products for strength and corrosion resistance.
• Seat Structure: Steel inner core with PU cold foaming sponge synthesis, covered by high-quality leather or fabric art.
• Foot Pedals: Steel inner core combined with environmental rubber products for a comfortable and secure grip.
• Air Pressure Lifting Core Components and Gas Spring: Imported from Germany (Stabilus) for reliable performance.
• Chair Face Material: Black high-quality PU imitation leather, customizable to true leather or fabric upon request. The chair face shape and color can also be tailored to customer specifications.

Function Data:

• Seat Movement: The upper part of the seat can move back and forth by 120mm, with a height adjustment range of 60mm and a seat inclination angle range of ±12°.
• Backrest and Headrest Adjustment: The seat backrest has an adjustable angle of 85°-150°, and the headrest can be adjusted up and down by 50mm. The handrest features multi-point positioning control.
• Pneumatic Lifting: The seat has a pneumatic lifting regulating range of 0-150mm.
• Rotation and Locking: The seat can rotate 360° and be locked in place with 4-point positioning control.
• Seat Rail Slide: The seat rail slide has a length of 0-6000mm, with a rail width of 500mm and a depth of 28mm.
• Seat Pedal Adjustment: The seat pedal can rotate 90° and regress, with an upper and lower position adjusting range of 0-50mm.
• Torsion Resistance: The seat can bear more than 150FT.LB torsion, reaching the AD grade standard.

Customization Options:

The standard slide-style driving seat track length is 1.2 meters, but it can be customized to longer lengths according to customer requirements.

FAQs:

1. Q: Can the Marine Helm Chair face material be customized?
   • A: Yes, the chair face material is black high-quality PU imitation leather by default, but it can be customized to true leather or fabric upon request. The shape and color can also be tailored to your preferences.
2. Q: Is the Marine Helm Chair suitable for saltwater environments?
   • A: Absolutely, the chair features a strong lifting column with saltwater resistance, making it ideal for marine applications.
3. Q: How adjustable is the seat?
   • A: The seat offers a wide range of adjustments, including height, angle, backrest, headrest, and armrests, ensuring you can find the perfect seating position for your needs.
4. Q: Can the Marine Helm Chair rotate and lock in place?
   • A: Yes, the chair has a 360° swivel mechanism with multi-point positioning control, allowing for easy rotation and secure locking in multiple positions.
5. Q: Is the chair durable enough for professional use?
   • A: Definitely, the chair is constructed from high-quality materials and meets the AD grade standard for torsion resistance, ensuring it can withstand the rigors of professional marine use.
