MARINE HEELING PUMPS EMC (H)
EMC(H) Series (50HZ)
| Model NO. | Motor kW | rpm | Bore Suc. Dis. | Dimension (mm) A | B | C | D | E | F | G | H | I | J | K | L | N | O | P | Q |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| EMC-300A | 90 | 1500 | 350 350 | 1110 | 640 | 820 | 760 | 50 | 250 | 520 | 1143 | 30 | 490 | 445 | 895 | 12 | 27 | 23 | 350 |
| 75 | 845 | ||||||||||||||||||
| 55 | 775 | ||||||||||||||||||
| 45 | 705 | ||||||||||||||||||
| 37 | 675 | ||||||||||||||||||
| EMC-400A | 200 | 1500 | 400 400 | 1198 | 640 | 820 | 760 | 50 | 250 | 520 | 1143 | 30 | 540 | 495 | 1185 | 16 | 27 | 23 | 400 |
| 132 | 1075 | ||||||||||||||||||
| 110 | 895 |
*All dimensions in mm. Not to be used for constructional purpose. Certified drawing will be supplied if required on receipt of official order.
EMC(H) Series (60HZ)
| Model NO. | Motor kW | rpm | Bore Suc. Dis. | Dimension (mm) A | B | C | D | E | F | G | H | I | J | K | L | N | O | P | Q |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| EMC-300A | 153 | 1800 | 350 350 | 1110 | 640 | 820 | 760 | 50 | 250 | 520 | 1143 | 30 | 490 | 445 | 1185 | 12 | 27 | 23 | 350 |
| 128 | 1075 | ||||||||||||||||||
| 104 | 845 | ||||||||||||||||||
| 87 | 775 | ||||||||||||||||||
| 64 | 705 | ||||||||||||||||||
| 52.4 | |||||||||||||||||||
| EMC-400A | 186 | 1800 | 400 400 | 1198 | 640 | 820 | 760 | 50 | 250 | 520 | 1143 | 30 | 540 | 495 | 1185 | 16 | 27 | 23 | 400 |
| 153 | |||||||||||||||||||
| 128 | |||||||||||||||||||
| 104 | |||||||||||||||||||
| 87 |
*All dimensions in mm. Not to be used for constructional purpose. Certified drawing will be supplied if required on receipt of official order.

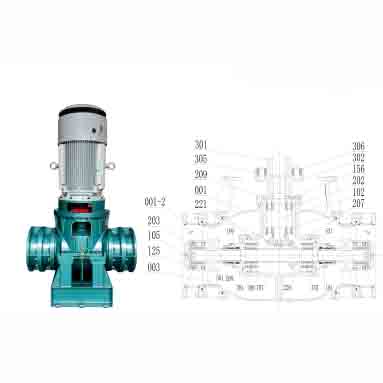

Structura & Materiel
| Part NO. | Name | Name Of Material | Req. NO. |
|---|---|---|---|
| 202 | BEARING 轴承 | BEARING STEEL 轴承钢 | 2 |
| 201 | BEARING 轴承 | BEARING STEEL 轴承钢 | 4 |
| 156 | BEARING NUT 轴承锁母 | MILD STEEL 碳钢 | 2 |
| 155 | BEARING NUT 轴承锁母 | MILD STEEL 碳钢 | 4 |
| 125 | SLEEVE NUT 轴套锁母 | STAINLESS STEEL 不锈钢 | 2 |
| 107 | SLEEVE 轴套 | STAINLESS STEEL 不锈钢 | 1 |
| 106 | SLEEVE 轴套 | STAINLESS STEEL 不锈钢 | 2 |
| 105 | SLEEVE 轴套 | STAINLESS STEEL 不锈钢 | 2 |
| 102 | SHAFT 副轴 | MILD STEEL 碳钢 | 1 |
| 101 | SHAFT 主轴 | DUPLEX STAINLESS STEEL 双相不锈钢 | 1 |
| 003 | IMPELLER 叶轮 | DUPLEX STAINLESS STEEL 双相不锈钢 | 2 |
| 001-2 | INLET AND OUTLET CASING 进出接口段 | DUPLEX STAINLESS STEEL 双相不锈钢 | 2 |
| 001 | CASING 泵体 | DUPLEX STAINLESS STEEL 双相不锈钢 | 1 |
| 531 | FRAMEWORK OIL SEAL 骨架油封 | RUBBER 橡胶 | 2 |
| 501 | MECH.SEAL 机械密封 | 1 | |
| 306 | COUPLING BOLT 联接螺栓 | MILD STEEL 碳钢 | 8 |
| 305 | COUPLING RING 弹性套 | RUBBER 橡胶 | 8 |
| 302 | PUMP COUPLING 泵联轴器 | DUTILE CAST IRON 球墨铸铁 | 1 |
| 301 | MOTOR COUPLING 电机联轴器 | DUTILE CAST IRON 球墨铸铁 | 1 |
| 221 | GEAR 齿轮2 | ALLOY STEEL 合金钢 | 1 |
| 220 | GEAR 齿轮1 | ALLOY STEEL 合金钢 | 1 |
| 209 | BEARING COVER 轴承压盖 | MILD STEEL 碳钢 | 1 |
| 208 | BEARING COVER 轴承压盖 | STAINLESS STEEL 不锈钢 | 2 |
| 207 | BEARING SLEEVE 轴承套 | MILD STEEL 碳钢 | 1 |
| 206 | BEARING SLEEVE 轴承套 | STAINLESS STEEL 不锈钢 | 2 |
| 203 | THORDON 套龙 | 2 |
Attention please: The description might be incorrect, please contact us for confirmation.
