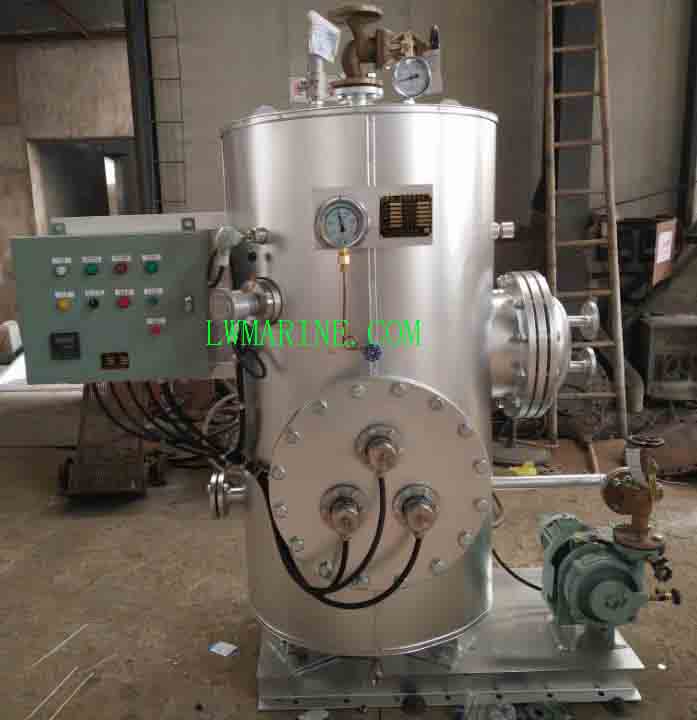

Marine Heating Water Tank | Shipboard Steam & Electric Hot Water System
Product Overview: Professional Marine Water Heating Solutions
Our Marine Heating Water Tank systems provide essential hot water supply for various vessel types, delivering reliably heated freshwater through steam or electric power methods. Designed specifically for maritime applications, these robust heating tanks ensure comfortable living conditions for all crew members by supplying consistent hot water for domestic use aboard ships and offshore installations.
Technical Specifications: Dual-Power Marine Water Heating Systems
Steam & Electric Combination Heating Tanks
| Volume (m³) | Steam Heating Capacity (kg/h) | Steam Consumption (kg/h) | Electric Heating Capacity (kg/h) | Power Requirement (kW) | Power Supply Options |
|---|---|---|---|---|---|
| 0.12 | 275 | 27.5 | 90 | 6 | 440V 60Hz, 380V 50Hz |
| 0.2 | 450 | 45 | 140 | 9 | |
| 0.3 | 750 | 75 | 180 | 12 | |
| 0.5 | 1200 | 120 | 280 | 18 | |
| 1.0 | 3250 | 325 | 360 | 24 |
Operating Parameters: Working Pressure 0.4MPa • Inlet Water Temperature 15°C • Outlet Water Temperature 65°C • Steam Pressure 0.3MPa
Electric-Powered Heating Tanks
| Volume (m³) | Electric Heating Capacity (kg/h) | Power Requirement (kW) | Power Supply Options |
|---|---|---|---|
| 0.12 | 180 | 12 | 440V 60Hz, 380V 50Hz |
| 0.2 | 300 | 24 | |
| 0.3 | 540 | 36 | |
| 0.5 | 900 | 60 |
Operating Parameters: Working Pressure 0.4MPa • Inlet Water Temperature 15°C • Outlet Water Temperature 65°C
Operation Guide: Marine Water Heater Startup Procedure
Step-by-Step Operational Method:
-
System Preparation: Open output valve and bottom release valve to drain residual water, then securely close release valve
-
Tank Filling: Open freshwater inlet valve to completely fill the heating water tank
-
Temperature Setting: Adjust thermal relay to automatically stop heating at 65°C and restart at 55°C for optimal energy efficiency
-
Operation Initiation: Open output valve to begin distribution of heated water for shipboard domestic use
Certification & Compliance:
-
Full classification society certification available
-
Compliance with international marine standards
-
Quality assurance documentation provided
-
Custom certification options upon request
Key Features & Benefits:
-
Dual Heating Options: Choose between steam or electric heating methods
-
Energy Efficient: Automatic temperature control reduces energy consumption
-
Marine-Grade Construction: Built to withstand harsh maritime environments
-
Easy Operation: Simple startup procedure with clear operational steps
-
Flexible Sizing: Multiple capacity options from 0.12 to 1.0 m³
-
Global Power Compatibility: 440V/60Hz and 380V/50Hz power supply options
The description/sizes may be different with goods, please check with us when order.
