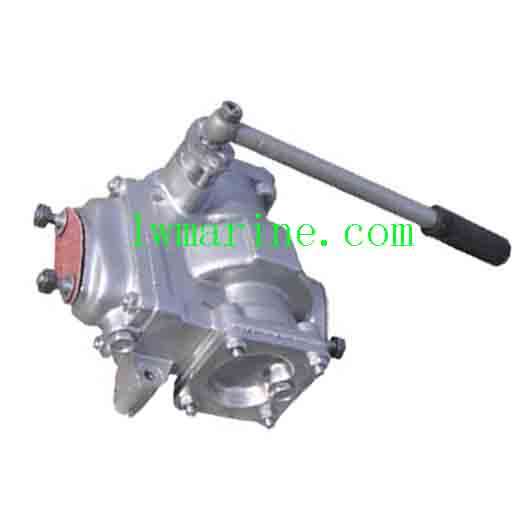

Marine Hand Pump General Description
The hand piston pump is designed for marine and industrial use, capable of transferring freshwater, seawater, lubricants, and oils (free of hard particles or fibers). It is suitable for various applications, including emergency, firefighting, well water extraction, and oily water transfer.
Maximum Fluid Temperature: 60°C (140°F)
Applications
✔ Marine Use – Bilge pumping, emergency water transfer
✔ Firefighting – Portable water supply
✔ Well Water – Manual extraction
✔ Kitchen & Sewage – Oily water drainage
✔ Transportation – Vehicle or equipment fluid transfer
Model Number Explanation
Example: CS-20Y/H
-
C → Marine-grade
-
S → Hand-operated piston pump
-
20 → Inlet/outlet diameter: 20mm (3/4″)
-
Y/H → Material option:
-
Y (CS-20Y/S-20) → Iron cylinder (for oil/water)
-
H (CS-20H/SH-20) → Copper alloy (for freshwater/seawater)
-
Main Specification
| Name | Unit | Type | |||
| CS-32Y/H | CS-40Y/H | CS-20Y/H | CS-25Y/H | ||
| S(SH)-32 | S(SH)-40 | S(SH)-20 | S(SH)-25 | ||
| Capacity | L/min | 48 | 65 | 20 | 32 |
| Delivery head | MPa | 0.25-0.3 | 0.25-03 | 0.25-0.3 | 0.25-0.3 |
| Suction vacuum height | MPa | 0.06 | 0.06 | 0.06 | 0.06 |
| Cylinder diameter | mm | 88 | 95 | 65 | 75 |
| Piston stroke | mm | 90 | 96 | 68 | 80 |
| Reciprocating times | Times/min | 50 | 50 | 50 | 50 |
| Weight | kg | 10.5 | 12 | 5.8 | 7.5 |
The description/sizes may be different with goods, please check with us when order.
