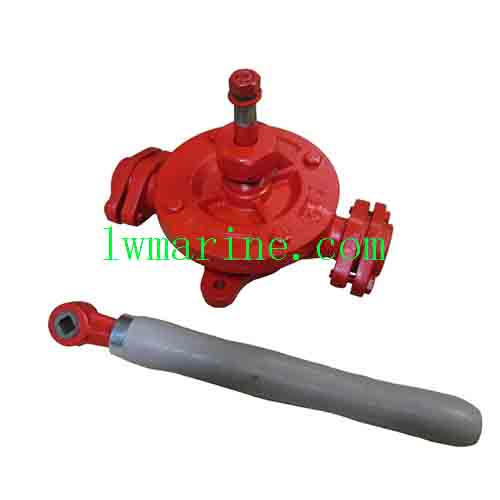

Marine Hand Oil Transfer Pump

CYL Series Marine Manual Semi-Rotary Hand Oil Transfer Pump – Reliable Fluid Management Solution

Product Overview
The CYL Series Marine Semi-Rotary Hand Oil Pump provides essential manual fluid transfer capability for various marine and industrial applications. Engineered with an efficient half-twist pumping action, this compact manual pump efficiently handles water, gasoline, kerosene, and other non-corrosive liquids compatible with iron and copper components. Ideal for environments without power access or for emergency operations, it offers reliable performance for clean fluids without solid particles or fibrous content at temperatures below 60°C.

Model Identification: CYL-15

CYL: Semi-Rotary Hand Operation Pump Series
15: Connection Size (15mm Inlet/Outlet Diameter)

Key Features & Benefits

Manual Operation: No external power required – ideal for remote and emergency applications
Compact & Portable: Lightweight design with easy transport and installation
Corrosion-Resistant Construction: Iron and copper materials for durability
User-Friendly Design: Ergonomic semi-rotary action for comfortable operation
Reliable Performance: Consistent flow rate with minimal maintenance requirements
Marine-Grade Quality: Suitable for vessel and offshore applications
Easy Maintenance: Simple design allows quick inspection and servicing

Technical Performance Specifications

Model	Flow Capacity (l/min)	Maximum Head (m)	Vacuum Height (m)	Weight (kg)
CYL-15	15	14	5	5.0
CYL-20	20	14	5	5.5
CYL-25	25	26	6	7.5
CYL-32	28	26	6	9.0
CYL-40	65	18	6.5	22.5
CYL-50	105	18	6.5	34.5

Operation & Compatibility

Fluid Compatibility: Water, gasoline, kerosene, and non-corrosive liquids
Temperature Range: Maximum 60°C operating temperature
Particle Restriction: Not suitable for fluids with fibers or solid particles
Operation: Manual semi-rotary action (50 cycles/minute for rated capacity)
Maintenance: Minimal requirements – occasional seal inspection
