KCB Series Marine Gear Fuel Oil Transfer Pump | High-Viscosity Fluid Handling Solutions
Product Overview

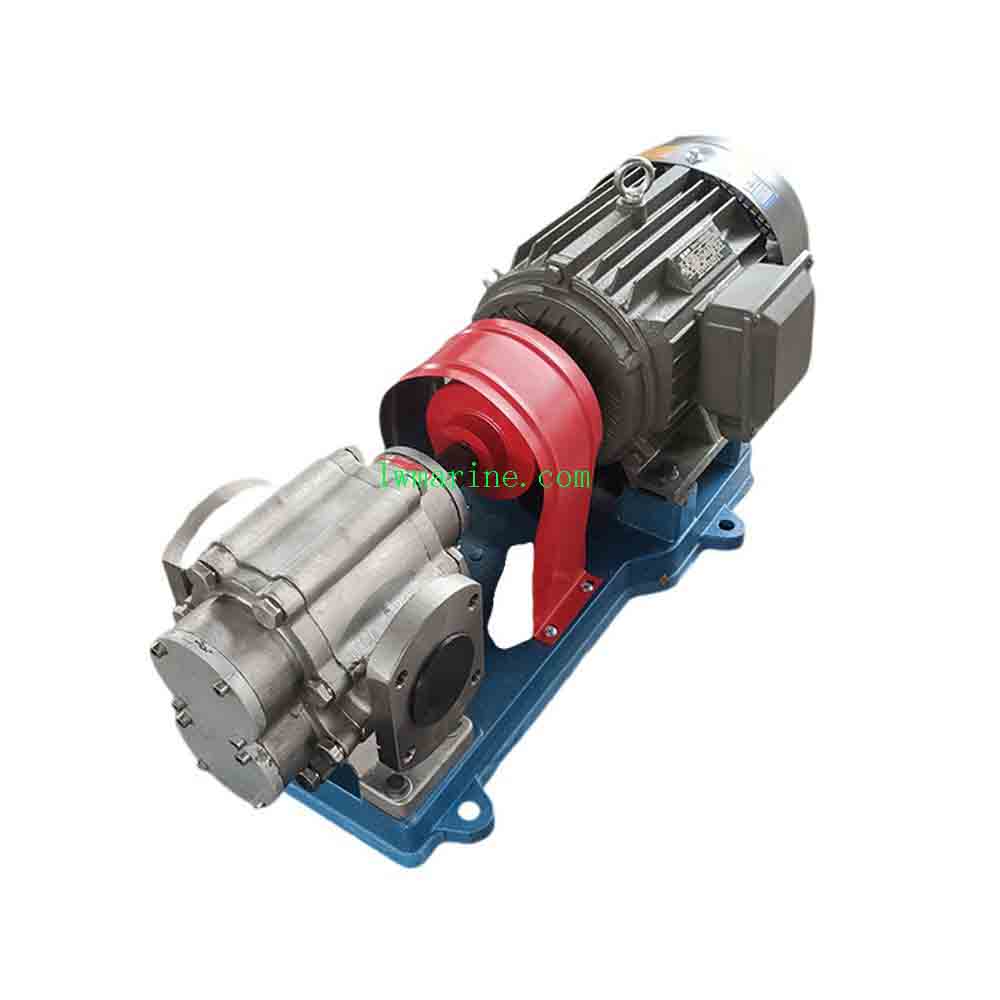

The KCB Series Marine Gear Fuel Oil Pump delivers exceptional performance in handling high-temperature, high-viscosity marine fuels and lubricants. Engineered as an advanced upgrade to 2CY type pumps, these robust gear pumps feature integrated safety reflux valves and handle temperatures up to 300°C. With exceptional viscosity capabilities from 5-1,500 cSt (extendable to 50,000 cSt at reduced speeds), KCB pumps efficiently transfer non-corrosive lubricating oils and equivalent fluids without solid particles or fibrous content.
Model Identification: KCB-300
-
KCB: Gear Pump with Safety Reflux Valve (2CY Series Upgrade)
-
300: Flow Capacity (300 L/min)
Technical Specifications
-
Flow Capacity: 1.1–684 m³/h (18.3–9,600 L/min)
-
Discharge Pressure: 0.28–1.45 MPa
-
Temperature Resistance: Up to 300°C
-
Viscosity Range: 5–50,000 cSt
-
Port Sizes: G¾” to φ350 mm
-
Motor Power: 1.5–250 kW
-
Efficiency Rating: Up to 59%
Performance Data Highlights
| Model | Capacity (m³/h) | Pressure (MPa) | Motor Power (kW) | Efficiency (%) |
|---|---|---|---|---|
| KCB-18.3 | 1.1–1.3 | 1.45 | 1.5–2.2 | 59–60 |
| KCB-300 | 18–21.6 | 0.36 | 5.5–7.5 | 42 |
| KCB-960 | 58–69.6 | 0.28 | 22–37 | 43 |
| KCB-2850 | 170–204 | 0.6 | 90–110 | 44 |
Key Features & Benefits
-
High-Temperature Performance: Handles fluids up to 300°C
-
Extended Viscosity Range: Manages 5–50,000 cSt fluids with speed adjustment
-
Integrated Safety Valve: Built-in reflux valve prevents system overpressure
-
Precision Gear Design: Ensures smooth, consistent flow delivery
-
Marine-Grade Construction: Corrosion-resistant materials for harsh environments
-
Energy Efficient Operation: Optimized gear geometry reduces power consumption
-
Easy Maintenance: Simple design with accessible components
-
Reliable Operation: Robust construction ensures continuous performance
The description/sizes may be different with goods, please check with us when order.
