ZC-FSHB Series Marine Fresh Water Generators | Reverse Osmosis Desalination System | IMO Certified
Advanced Reverse Osmosis Seawater Desalination System for Marine Applications

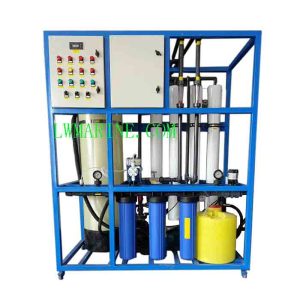

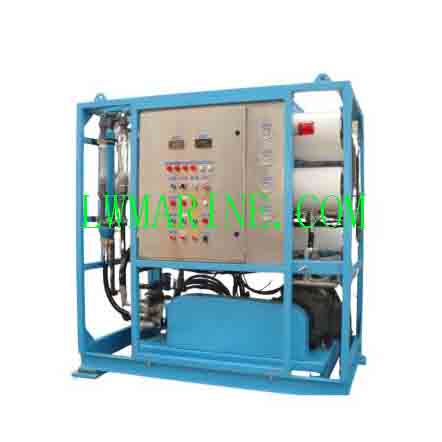

The ZC-FSHB Series Marine Fresh Water Generators utilize cutting-edge reverse osmosis membrane technology to transform seawater into high-quality drinking water that exceeds national GB5749-2006 standards. Specifically engineered for marine environments, this compact and efficient desalination system provides vessels with independent freshwater production capability, eliminating reliance on port water supplies and ensuring continuous freshwater availability during long voyages.
Key Features & Benefits
✔ Advanced RO Technology – ≥98.5% desalination rate producing water with ≤500 PPM salinity
✔ Compact Marine Design – Space-efficient footprint for installation in confined ship spaces
✔ Immediate Operation – Produces drinkable water immediately after startup
✔ Stainless Steel Construction – Corrosion-resistant framework for marine environments
✔ Low Power Consumption – Energy-efficient operation with minimal power requirements
Technical Specifications
| Model | ZC-FSHB-1.5 | ZC-FSHB-3 | ZC-FSHB-5 | ZC-FSHB-10 | ZC-FSHB-12 | ZC-FSHB-15 | ZC-FSHB-30 | ZC-FSHB-40 | ZC-FSHB-60 |
|---|---|---|---|---|---|---|---|---|---|
| Capacity (m³/day) | 1.25 | 3 | 5 | 10 | 12 | 15 | 30 | 40 | 60 |
| Power Consumption | 1.65KW | 2.05KW | 2.75KW | 9.7KW | 6.6KW | 13.5KW | 13.5KW | 22KW | 22KW |
| Recovery Rate | ≈28% | ≈22% | ≈28% | ≈25% | ≈34% | ≈36% | ≈36% | ≈36% | ≈36% |
| Dimensions L×W×H (mm) | 930×440×1600 | 940×440×1600 | 1080×440×1600 | 1080×440×1600 | 1600×1150×2000 | 1350×650×1750 | 2000×1500×2100 | 1800×1300×2100 | 2750×1800×2200 |
System Components & Technology
Pre-Filtration System:
-
Feed Pump: Provides consistent raw water supply
-
Multi-Medium Filter: Removes suspended particles with layered filtration media
-
Precision Filter: Final pre-treatment stage before RO membrane
Reverse Osmosis System:
-
High Pressure Pump: 5.0 MPa operating pressure for optimal separation
-
RO Membrane Elements: Advanced semi-permeable membranes for salt rejection
-
Pressure Control Valve: Precise pressure regulation for system protection
-
Rinse Tank: Product water storage for membrane flushing
Control & Protection:
-
IP55 Rated Control Cabinet: Water and dust protected for marine use
-
24V AC Control System: Safe low-voltage operation
-
F-Class Insulation Motors: High temperature resistance for reliable performance
Operation & Maintenance
Simple Startup Procedure:
-
Switch to “Filter” and “Product” positions
-
Feed pump initiates seawater intake
-
High pressure pump engages after reaching 0.05 MPa inlet pressure
-
Gradual pressure increase to 5.0 MPa operating pressure
-
Product water diversion to storage tanks after quality verification
Automatic Protection Features:
-
Pressure monitoring prevents membrane damage
-
Automatic rinse cycle protects system components
-
Low water level sensors prevent pump dry-running
-
Quality monitoring ensures drinking water standards
Performance Specifications
-
Feed Water Tolerance: ≤38,000 PPM TDS (typical seawater)
-
Temperature Range: 5-35°C operating temperature
-
pH Range: 3-10 pH value compatibility
-
Inlet Pressure: 0.1-1.0 Kg/cm² positive pressure
-
Product Water Pressure: ≤0.3 MPa output pressure
The description/sizes may be different with goods, please check with us when order.
