10 Ton Per Day Marine Fresh Water Generator: High-Efficiency Seawater Desalination System

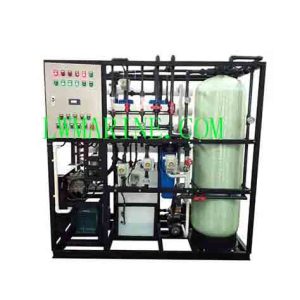

Our 10 Ton Per Day Water Maker Marine Fresh Water Generator is a cutting-edge seawater desalination system designed to provide ships and maritime vessels with a reliable and sustainable source of fresh drinking water. This advanced marine freshwater generator effectively removes organic salts, heavy metal ions, organic bacteria, germs, and other harmful contaminants from seawater, ensuring the production of clean, safe, and potable water.
Key Advantages:
- High-Quality Filtration: Utilizes world-class membrane components with stable properties to ensure safe and reliable water purification.
- International Brand Components: Features seawater desalination-specific RO high-pressure pumps and high-voltage protection devices from renowned international brands, guaranteeing the safe operation of the equipment.
- Automatic Flushing System: Equipped with automatic multi-way valves for large-flow forward and reverse flushing, enhancing system efficiency and longevity.
- Energy-Efficient: Low energy consumption and cost-effective water production, making it an economical choice for maritime applications.
- Compact Design: Small size, lightweight, and minimal floor space requirements, ideal for installation in narrow spaces on ships.
- Durable Construction: Rack pipeline system made from imported 316 stainless steel and corrosion-resistant materials, ensuring durability in harsh marine environments.
- User-Friendly: Simple operation, convenient utilization, and easy maintenance, with immediate water supply upon startup.
- Chemical-Free: Produces sweet and mellow drinking water without the need for any chemical additives.
Available Types and Specifications:
| Type | JBB-FSHB-3.0 | JBB-FSHB-5.0 | JBB-FSHB-8.0 | JBB-FSHB-10.0 |
|---|---|---|---|---|
| Product Water Output (m³/d) | 1~3 | 2~5 | 4~8 | 8~10 |
| Product Water Flow (L/h) | 50~60 | 100~130 | 150~180 | 200~250 |
| Stabilize Salt Rejection (%) | ≥98 | ≥98 | ≥98 | ≥98 |
| Product Water Concentration NaCl (mg/L) | ≤700 | ≤700 | ≤700 | ≤700 |
| Operate Pressure (Mpa) | 4~6.5 | 4~6.5 | 4~6.5 | 4~6.5 |
| Recovery (%) | 8~10 | 15~20 | 15~25 | 20~25 |
| Power (kw) | 1.5 | 1.5 | 2.2 | 2.2 |
| Operate Temperature (℃) | 5~40 | 5~40 | 5~40 | 5~40 |
| Feed Water Flow (m³/h) | 1.1 | 1.1 | 0.6~1 | 1.5 |
| Feed Water Pressure (MPa) | 0.1~0.3 | 0.1~0.3 | 0.1~0.3 | 0.1~0.3 |
| Feed Water Temperature (℃) | 5~40 | 5~40 | 5~45 | 5~40 |
| PH Range (Series Run) | 2~11 | 2~11 | 2~11 | 2~11 |
| PH Range (Short-term 30’ rinse) | 1~12 | 1~12 | 1~12 | 1~12 |
| Rinse Trunk Cubage (L) | 7.5 | 7.5 | 11 | 12 |
| Approx Weight (kg) | 110 | 120 | 140 | 140 |
Remark: Product Water Flow is the Product Water Output under qualification conditions: Feed Water Temperature at 25℃, Feed Water concentration NaCl at 35,000 mg/L, and Operate Pressure at 5 MPa.
FAQs:
Q1: How does the marine fresh water generator ensure the removal of harmful contaminants from seawater?
A1: Our marine fresh water generator utilizes world-class membrane components that effectively filter out organic salts, heavy metal ions, organic bacteria, germs, and other harmful substances, ensuring the production of clean and safe drinking water.
Q2: What makes the RO high-pressure pumps and high-voltage protection devices in this generator reliable?
A2: The RO high-pressure pumps and high-voltage protection devices are sourced from renowned international brands, known for their high quality and reliability, ensuring the safe and efficient operation of the desalination system.
Q3: Can the marine fresh water generator operate in narrow spaces on ships?
A3: Yes, the generator features a compact design with a small size, lightweight, and minimal floor space requirements, making it ideal for installation in narrow spaces on ships.
Q4: Is the water produced by the generator safe for direct consumption?
A4: Absolutely, the water produced by our marine fresh water generator is free from chemical additives and harmful contaminants, making it safe and suitable for direct consumption with a sweet and mellow taste.
Q5: What are the power requirements for the different types of marine fresh water generators?
A5: The power requirements vary depending on the type, with JBB-FSHB-3.0 and JBB-FSHB-5.0 requiring 1.5 kW, and JBB-FSHB-8.0 and JBB-FSHB-10.0 requiring 2.2 kW, ensuring energy-efficient operation across all models.
Attention please: The description was copied from different cooperating manufacturers. The description may be different with the goods, please check with us when order.
