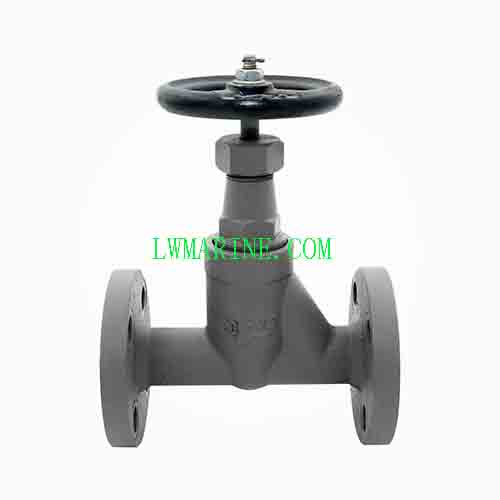

Marine Forged Steel Globe Valve | JIS F7336 & F7400 30K Rated for Ships & Offshore Platforms
Product Overview
Our JIS F7336 marine forged steel globe valve delivers superior performance and reliability for critical marine fluid control applications. Manufactured with premium forged steel construction and stainless steel trim, this valve meets rigorous JIS B2220 flange standards. Designed for shipbuilding, vessel maintenance, and offshore platform applications, it ensures precise flow regulation and shut-off capability in demanding marine environments with three distinct types (S, U, F) to match specific installation requirements.
Key Features & Benefits
-
Dual JIS Certification: Complies with both JIS F7336 and JIS F7400 standards for marine valves
-
Premium Material Construction: Forged steel body with stainless steel stem and disc for maximum corrosion resistance and durability
-
High-Pressure Rating: 30K pressure capacity for demanding marine applications
-
Multiple Configuration Options: Type S, U, and F designs for various installation needs
-
JIS B2220 Flange Compliance: Ensures perfect compatibility with marine piping systems
-
Custom Material Selection: Full range of body materials, packing, and gaskets available based on operational requirements
Technical Specifications
-
Standard: JIS F7336 & JIS F7400
-
Flange Standard: JIS B2220
-
Nominal Diameter: Type S: 6, 10 | Type U: 6, 10 | Type F: 15-25
-
Pressure Rating: 30K
-
Body Material: Forged Steel
-
Trim Materials: Stainless Steel (Stem, Disc)
Applications
-
High-pressure shipboard piping systems
-
Offshore platform fluid handling
-
Fuel and lubricating oil lines
-
Ballast and bilge systems
-
Marine engine room applications
Dimension Chart (IMPA Code Reference)
Type “S”
| IMPA Code | Size | L | L1 | L2 | L3 | K | H | B2 | D3 |
|---|---|---|---|---|---|---|---|---|---|
| 750731 | 6 | – | 42 | 38 | 51 | 12 | 130 | 30 | M20×1.5 |
| 750732 | 10 | – | 51 | 45 | 63 | 16 | 150 | 41 | M24×2 |
Type “U”
| IMPA Code | Size | L | L1 | H | B2 |
|---|---|---|---|---|---|
| 750736 | 6 | 84 | 102 | 130 | 30 |
| 750737 | 10 | 102 | 126 | 150 | 41 |
Type “F”
| IMPA Code | Size | L | H | D | C | n | h | t |
|---|---|---|---|---|---|---|---|---|
| 750741 | 15 | 150 | 200 | 115 | 80 | 4 | 19 | 18 |
| 750742 | 20 | 170 | 220 | 120 | 85 | 4 | 19 | 18 |
| 750743 | 25 | 200 | 250 | 130 | 95 | 4 | 19 | 20 |
Customization & Services
-
Material Flexibility: Custom material packages for specific pressure, temperature, and media conditions
-
Sample Orders: Small quantity and trial orders welcome
-
OEM Services: Custom manufacturing based on customer specifications
-
Global Export Ready: Experienced in international marine logistics
The description/sizes may be different with goods, please check with us when order.
