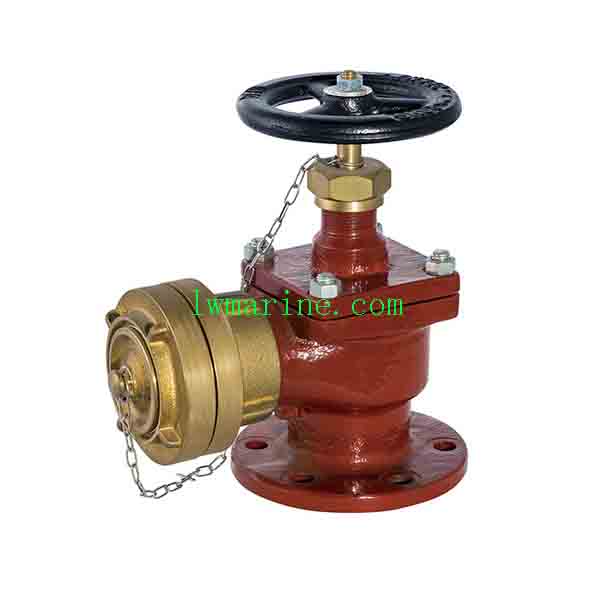

GB T2032-93 Marine Flanged Fire Hydrant | IACS Certified for Shipbuilding & Repair
The GB T2032-93 Marine Flanged Fire Hydrant is a critical safety component designed for reliable firefighting water supply on ships and offshore platforms. Certified to the GB T2032-93 national standard, this robust flanged hydrant ensures immediate and dependable access to seawater or freshwater in emergency situations. Its durable bronze construction and flanged connections provide superior corrosion resistance and easy integration into marine piping systems, making it an essential fitting for new shipbuilding and vessel repair.
🔥 Product Features & Benefits
-
Marine Fire Safety Compliance: Meets GB T2032-93 standards for use in marine fire protection systems with seawater and freshwater.
-
Corrosion-Resistant Materials: Features a cast tin bronze body, cover, and disc, an aluminum bronze stem, and cast silicon brass seal faces for maximum durability in saltwater environments.
-
IACS Certification Supported: Products are certified with major IACS certificates including CCS, ABS, LR (Lloyd’s Register), and more, ensuring international compliance and acceptance.
-
Flanged Connection for Secure Installation: Designed with standardized flanges for sturdy, leak-free connection to ship fire mains.
-
Custom Material Options: Special materials available upon request to meet specific project or classification society requirements.
-
Reliable Performance: Nominal pressure of 1.0 MPa and available in DN40 to DN65 sizes suitable for standard marine fire line layouts.
📐 Technical Specifications
-
Product Standard: GB T2032-93
-
Nominal Pressure: 1.0 MPa
-
Nominal Diameter (DN): 40, 50, 65 mm
-
Applicable Media: Sea Water, Fresh Water
-
Body/Cover/Disc Material: Cast Tin Bronze
-
Stem Material: Aluminum Bronze
-
Seal Face Material: Cast Silicon Brass
-
Certifications: IACS (CCS, ABS, LR, etc.)
📏 Dimension Tables
Type A/B Dimensions (Partial):
| DN | L | H1 | D | D1 | D2 | Bolt (n-Th) | Weight |
|---|---|---|---|---|---|---|---|
| 40 | 240 | 85 | 125 | 93 | 74 | 6-M14 | – |
| 50 | 258 | 85 | 135 | 103 | 84 | 6-M14 | – |
| 65 | 294 | 100 | 155 | 123 | 104 | 6-M14 | – |
Type AS/BS Dimensions (Partial):
| DN | L | H1 | D | D1 | D2 | Bolt (n-Th) |
|---|---|---|---|---|---|---|
| 40 | 225 | 80 | 150 | 110 | 88 | 4-M16 |
| 50 | 238 | 85 | 165 | 125 | 102 | 4-M16 |
| 65 | 284 | 100 | 185 | 145 | 122 | 4-M16 |
3MPa Working Pressure Dimensions (Partial):
| DN | L | H | D | D1 | D2 | Bolt | Handwheel (D0) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| 40 | 62 | 90 | 125 | 93 | 74 | 6-M14 | 120 | 7.6 |
| 50 | 75 | 95 | 135 | 103 | 84 | 6-M14 | 140 | 9.8 |
| 65 | 80 | 115 | 170 | 132 | 110 | 8-M16 | 160 | 12.6 |
Full dimensional details and CAD drawings available upon request.
The description/sizes may be different with goods, please check with us when order.
