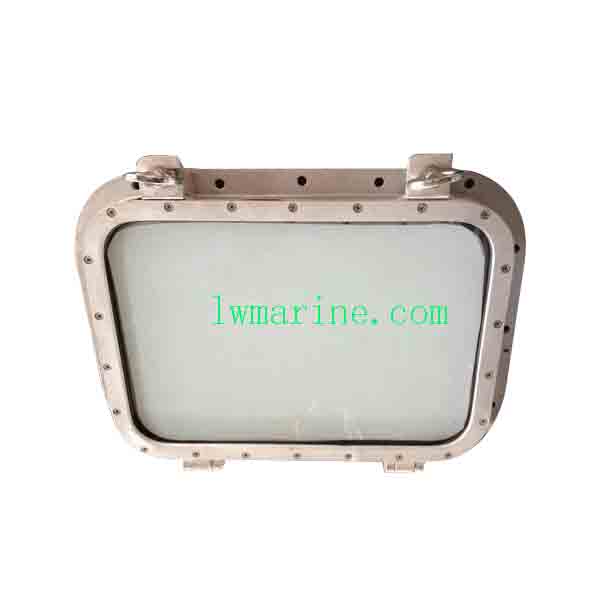

Marine Fire Windows – Certified Fire Protection for Vessels
SOLAS-Compliant Fire-Rated Windows for Ship Safety
Our marine fire windows provide critical compartmentalization to prevent fire and smoke spread throughout vessels. Engineered to meet strict IMO SOLAS requirements, these fire-rated rectangular windows combine advanced materials with proven safety technology to protect crew and passengers.
Key Safety Features
✔ Fire-Rated Glass – Withstands extreme heat without breaking (A60/A30/A15 ratings available)
✔ Steel or Aluminum Frames – Maintains structural integrity during fires
✔ Intumescent Seals – Automatically expands when heated to block smoke
✔ Thermal Insulation – Reduces heat transfer to adjacent areas
✔ Watertight Design – Prevents water ingress during firefighting
Certifications & Compliance
-
IMO SOLAS certified
-
Classification Society Approved: ABS, DNV, LR, CCS, BV
-
Fire Tested to international standards
-
Pressure Tested for watertight integrity
Technical Specifications
| Component | Material Options | Fire Performance |
|---|---|---|
| Glass | Ceramic fire-rated | Up to 60 minutes protection |
| Wired glass | 30-90 minute ratings | |
| Frame | Marine-grade steel | Maintains integrity at 1000°C+ |
| Fire-resistant aluminum | Lightweight alternative | |
| Seals | Intumescent strips | Expands 5-10x when heated |
The description/sizes may be different with goods, please check with us when order.
