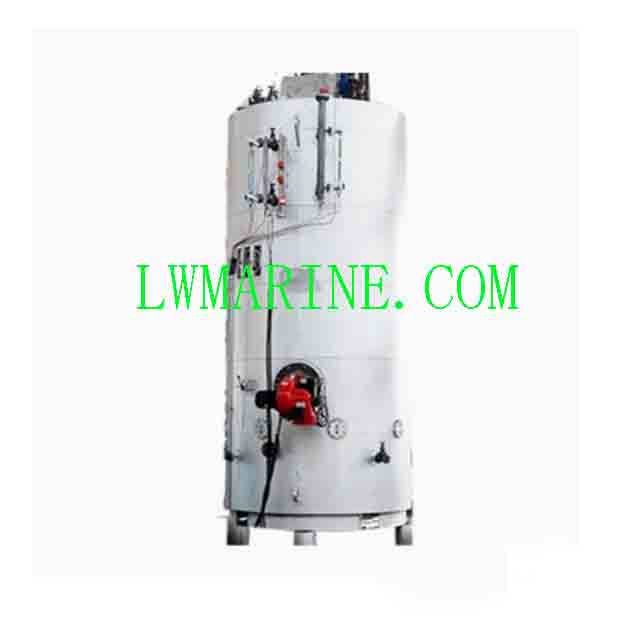

Marine Vertical Smoke Tube Exhaust Gas Boiler │ High-Efficiency Waste Heat Recovery System for Ships
Product Overview
Our Marine Vertical Smoke Tube Exhaust Gas Boiler is designed to recover waste heat from main and auxiliary diesel engine exhaust gases. It efficiently generates saturated steam for heating heavy fuel oil, warming main engine cylinders, maintaining tank temperatures, supplying domestic hot water, and supporting air conditioning systems across various marine vessels. This supports significant fuel savings and enhanced energy efficiency on board.
Key Features & Benefits
-
Energy Saving Solution: Captures and repurposes exhaust heat from marine engines, reducing fuel consumption and operational costs.
-
Fully Automated Operation: Features an advanced control system with comprehensive safety interlocks, ensuring reliable performance and compliance with unmanned engine room requirements.
-
Dual Operation Modes: Supports both full automatic control and manual operation for emergency flexibility.
-
Robust Welded Construction: Built with an all-welded structure; the space between the shell and inner container holds water and steam, while heat exchange occurs through efficient smoke tubes (smooth or screw pipe designs).
-
Versatile Steam Applications: Ideal for fuel oil heating, cabin heating, domestic hot water, and other thermal duties on cargo ships, tankers, container vessels, and offshore platforms.
Technical Specifications
| Model | Evap. Capacity (kg/h) | Working Pressure (MPa) | Outline Dimensions (mm) | Weight (kg) | Water Capacity (m³) |
|---|---|---|---|---|---|
| LFP 1.3-2 | 1.3 | 0.2 | 666x1130xφ472 | 190 | 0.05 |
| LFP2.6-2 | 2.6 | 0.2 | 850x1350xφ632 | 450 | 0.12 |
| LFRQ4-0.1 | 4 | 0.1 | 970x1520xφ592 | 500 | 0.22 |
| … | … | … | … | … | … |
| GFL220-0.7 | 220 | 0.7 | 4205x5770xφ2350 | 13000 | 6.5 |
The description/sizes may be different with goods, please check with us when order.
