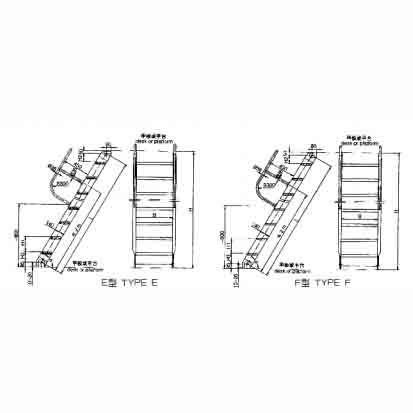

MARINE ENGINE ROOM INCLINED LADDER
-
Application: Applicable to ladders for engine rooms of steel ships. May also be used for inclined ladders in other compartments or on open decks.
-
Product Types
| TYPE | FRAME TYPE | STEP TYPE | HEIGHT H (mm) | INCLINATION A (°) | LADDER WIDTH B (mm) | |
|---|---|---|---|---|---|---|
| A | AF | 2×L50×50×4 (for inland ships) | Square bar | 500–2800 | 55 | 450 |
| B | BF | 2×L50×50×6 (for sea-going ships) | XPM steel grid | 60 | 600 | |
| C | CF | 140×58×6 (for inland ships) | Square bar | 2900–6500 | 65 | 750 |
| D | DF | 140×60×8 (for sea-going ships) | XPM steel grid / Pressure-welded steel grating |
Note: The addition of “F” in the type designation indicates a ladder with a dust-proof plate.
Note: The description may be different with the product, please contact us for quotation.
