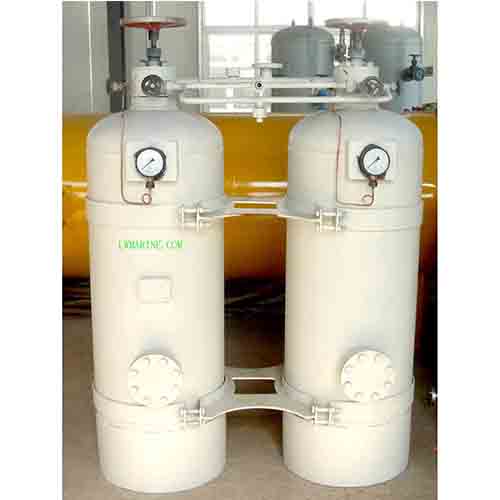

Marine Emergency Air Receiver
Our Marine Emergency Air Receiver is a high-performance pressure vessel engineered for reliability and efficiency in industrial compressed air systems. Built from certified carbon steel and designed to meet ASME standards, it ensures safe storage, condensation separation, and stable air supply—reducing compressor cycling and energy costs.
Key Advantages
-
Moisture & Contaminant Separation: Effectively cools compressed air and reduces liquid and particulate carryover, protecting downstream equipment and air tools.
-
Stable Air Buffer Capacity: Smoothes pressure fluctuations and handles peak demand effortlessly, minimizing compressor wear and saving energy.
-
Robust & Long-Lasting: Corrosion-resistant construction combined with high-quality sealing ensures extended service life with minimal maintenance.
-
Compact Footprint: Vertical design ideal for limited spaces, offering large air storage capacity without occupying excessive floor area.
-
Comprehensive Service Support: We provide customized solutions and professional technical support from pre-sales consultation to after-sales service.
Technical Specifications
| Model | Capacity (m³) | Design Pressure (MPa) | Working Pressure (MPa) | Temperature (°C) | Diameter (mm) | Height (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| A0.05-3.0 | 0.05 | 3.3 | 3.0 | 100 | 350 | 910 | 74 |
| A0.08-3.0 | 0.08 | 3.3 | 3.0 | 100 | 350 | 1260 | 95 |
| A0.10-3.0 | 0.10 | 3.3 | 3.0 | 100 | 400 | 1280 | 106 |
| A0.16-3.0 | 0.16 | 3.3 | 3.0 | 100 | 400 | 1650 | 138 |
| A0.25-3.0 | 0.25 | 3.3 | 3.0 | 100 | 500 | 1660 | 267 |
| A0.32-3.0 | 0.32 | 3.3 | 3.0 | 100 | 520 | 2050 | 165 |
| A0.40-3.0 | 0.40 | 3.3 | 3.0 | 100 | 600 | 1950 | 335 |
| A0.50-3.0 | 0.50 | 3.3 | 3.0 | 100 | 600 | 2290 | 420 |
Attention please: The description was copied from different cooperating manufacturers. The description may be different with the goods, please check with us when order.
