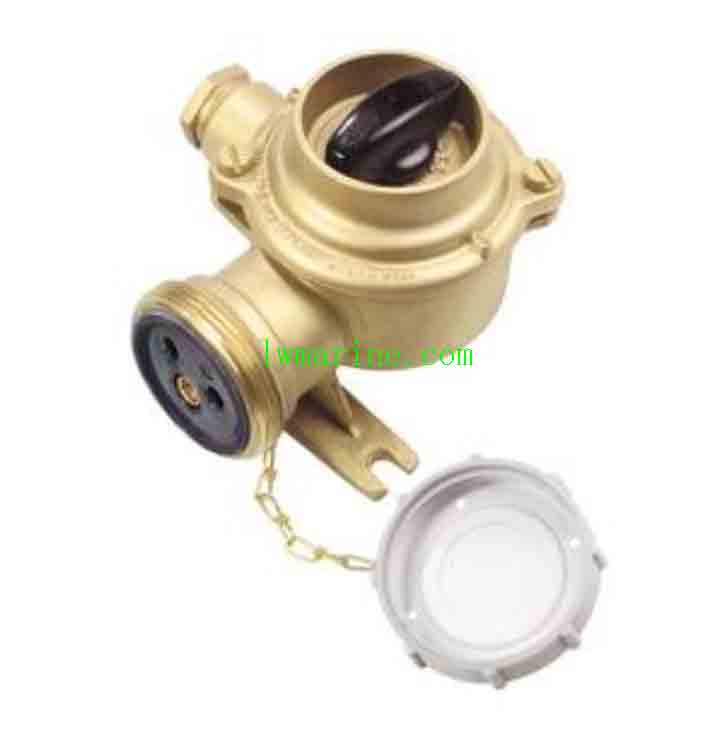

Marine Brass Electrical Switch with Socket: HNA Series for Reliable Marine Power Control
Our marine – grade brass electrical switch with sockets, part of the HNA series, are expertly crafted to meet the rigorous demands of marine electrical systems. These switches are specifically designed to connect, cut on, or cut off appliance circuits operating on either AC (alternating current) or DC (direct current) low – voltage power sources. Whether you’re on a small fishing boat, a luxury yacht, or a large commercial vessel, our marine brass socket with switch provides a dependable solution for your electrical control needs.
Technical Specifications
- Protection Class: IP56 – This high – level protection rating ensures that our marine brass socket with switch is well – shielded against dust ingress and can withstand powerful water jets from any direction. This makes it highly suitable for the harsh and wet marine environment, where exposure to water, salt, and debris is a constant concern. It offers long – lasting protection, reducing the risk of electrical failures due to environmental factors.
- Adopted Standard: DIN89263 – By adhering to the DIN89263 standard, our marine electrical switches with sockets guarantee a high level of quality, safety, and compatibility. This standard ensures that the product meets specific requirements for marine electrical components, giving you peace of mind regarding its performance and reliability.
- Cable Outside Diameter: Φ14~φ16 – The specified cable outside diameter range allows for easy and secure connection of appropriate cables. This ensures a stable electrical connection, minimizing the risk of loose connections that could lead to electrical arcing or power disruptions in the marine environment.
Product Specifications
1144 Series Marine Brass Socket with Switch
| Code | General Cable Type | Shield Cable Type | Weight |
|---|---|---|---|
| 1144 – CZKH101 – 1 | CZKH101 – 1 | CZKH111 – 1 | 1.50kg |
| 1144 – CZKH101 – 2 | CZKH101 – 2 | CZKH111 – 2 | 1.60kg |
| 1144 – CZKH101 – 3 | CZKH101 – 3 | CZKH111 – 3 | 1.60kg |
| 1144 – CZKH101 – 4 | CZKH101 – 4 | CZKH111 – 4 | 1.60kg |
| 1144 – CZKH101 – 5 | CZKH101 – 5 | CZKH111 – 5 | 1.70kg |
The 1144 series marine brass socket with switch offers a range of options to suit different cable requirements. With weights ranging from 1.50kg to 1.70kg, these switches are relatively lightweight yet robust enough to withstand the vibrations and movements common in marine applications. The general cable type and shield cable type options provide flexibility in connecting various types of marine electrical cables, ensuring a secure and reliable electrical connection.
1144\R Series Marine Brass Socket with Switch
| Code | General Cable Type | Shield Cable Type | Weight |
|---|---|---|---|
| 1144\R – CZKH109 – 1 | CZKH109 – 1 | CZKH119 – 1 | 1.50kg |
| 1144\R – CZKH109 – 2 | CZKH109 – 2 | CZKH119 – 2 | 1.60kg |
| 1144\R – CZKH109 – 3 | CZKH109 – 3 | CZKH119 – 3 | 1.60kg |
| 1144\R – CZKH109 – 4 | CZKH109 – 4 | CZKH119 – 4 | 1.60kg |
| 1144\R – CZKH109 – 5 | CZKH109 – 5 | CZKH119 – 5 | 1.70kg |
The 1144\R series marine brass socket with switch is similar to the 1144 series but may offer some additional features or improvements. It also provides a variety of cable connection options with weights in the same range as the 1144 series. These switches are designed to handle the electrical demands of marine appliances while providing a user – friendly interface for easy operation.
1144\D Series Marine Brass Socket with Switch
| Code | General Cable Type | Shield Cable Type | Weight |
|---|---|---|---|
| 1144\D – CZKH201 – 1 | CZKH201 – 1 | CZH211 – 1 | 1.70kg |
| 1144\D – CZKH201 – 2 | CZKH201 – 2 | CZH211 – 2 | 1.80kg |
| 1144\D – CZKH201 – 3 | CZKH201 – 3 | CZH211 – 3 | 1.80kg |
| 1144\D – CZKH201 – 4 | CZKH201 – 4 | CZH211 – 4 | 1.80kg |
| 1144\D – CZKH201 – 5 | CZKH201 – 5 | CZH211 – 5 | 1.90kg |
The 1144\D series marine brass socket with switch is engineered for more demanding marine electrical applications. With slightly higher weights compared to the previous series, these switches may offer enhanced durability and performance. The different cable type options ensure compatibility with a wide range of marine electrical cables, making them suitable for powering various marine appliances and equipment.
1144\2 Series Marine Brass Socket with Switch
| Code | General Cable Type | Shield Cable Type | Weight |
|---|---|---|---|
| 1144\2 – CZKH202 – 1 | CZKH202 – 1 | CZKH212 – 1 | 1.70kg |
| 1144\2 – CZKH202 – 2 | CZKH202 – 2 | CZKH212 – 2 | 1.80kg |
| 1144\2 – CZKH202 – 3 | CZKH202 – 3 | CZKH212 – 3 | 1.80kg |
| 1144\2 – CZKH202 – 4 | CZKH202 – 4 | CZKH212 – 4 | 1.80kg |
| 1144\2 – CZKH202 – 5 | CZKH202 – 5 | CZKH212 – 5 | 1.90kg |
The 1144\2 series marine brass socket with switch is another option in our HNA series, offering similar features to the 1144\D series. It provides a reliable and secure electrical connection for marine appliances, with a range of cable type options to meet different installation requirements. The weights of these switches ensure stability and durability in the marine environment.
Each of our marine brass socket with switch models comes with detailed technical drawings, which can be provided upon request. These drawings offer in – depth information about the physical dimensions, pin configurations, and installation requirements, ensuring a seamless integration into your marine electrical setup. Choose our HNA series marine brass socket with switch for a high – quality, reliable, and safe electrical control solution for your marine vessels.
The description/sizes may be different with goods, please check with us when order.
