Marine Electric Heating Calorifier

0.12 m³ Marine Electric Heating Calorifier | IMO Certified Hot Water Heater for Ships & Offshore Platforms

Product Overview

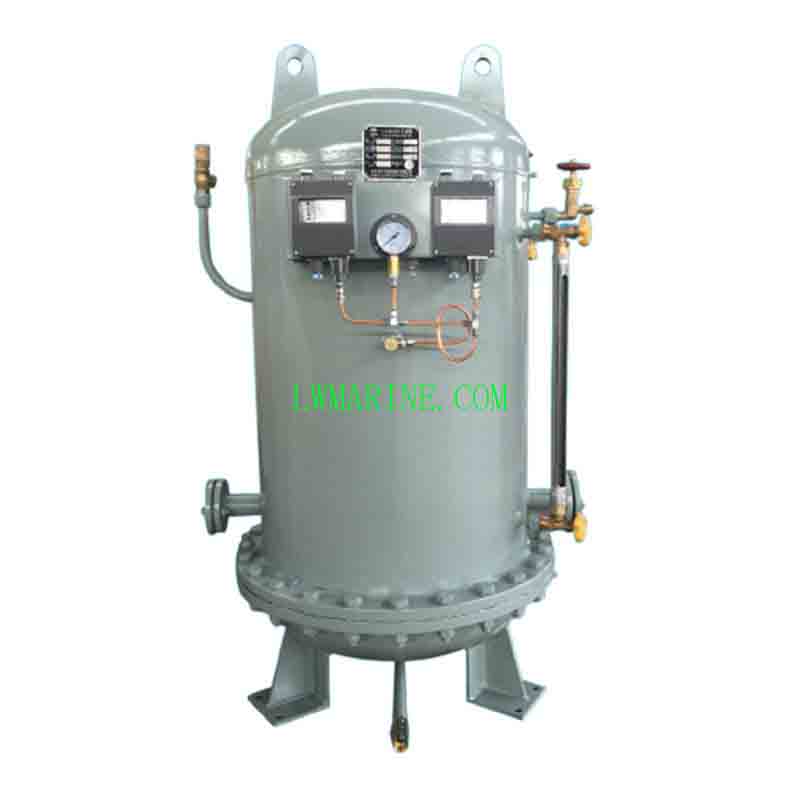

Our 0.12 m³ Marine Electric Heating Calorifier is a compact, efficient hot water storage and heating solution designed specifically for marine and offshore applications. This electric-powered water heater provides reliable hot water supply for crew accommodations, galley services, and sanitary facilities onboard vessels and platforms. Certified by major classification societies, it ensures safe and efficient operation in demanding marine environments.

Key Applications

Crew accommodation hot water supply for showers and sanitary facilities
Galley and kitchen hot water systems on ships and offshore platforms
Integrated hot water systems with freshwater pressure tanks
Marine sanitation and cleaning water heating
Offshore platform accommodation hot water services

Technical Specifications

Parameter	Specification
Model	0.12
Capacity	0.12 m³
Working Pressure	0.4 MPa (at 60°C)
Design Pressure	0.44 MPa
Test Pressure	0.66 MPa
Safety Valve Opening Pressure	0.42 MPa
Water Inlet Temperature	15°C
Water Outlet Temperature	65°C
Working Temperature Range	0~65°C
Design Temperature	80°C
Heating Capacity	180 kg/h
Electrical Heating Power	12 kW
Thermal Insulation Thickness	40 mm
Galvanized Steel Outer Thickness	0.7 mm
Electrical Supply	AC380V, 50Hz, 3φ / AC440V, 60Hz, 3φ

Operating Principle – Integrated Hot Water System
This electric heating calorifier works in combination with your vessel’s freshwater pressure tank system. Fresh water from the pressure tank automatically replenishes the calorifier, where it is efficiently heated by electric elements and distributed throughout the vessel for various hot water applications. The system maintains consistent temperature and pressure for reliable crew comfort and operational needs.

Key Features & Benefits
✅ Compact Marine Design: Space-efficient configuration ideal for vessel installation
✅ Electric Heating System: Clean, efficient heating without combustion risks
✅ Thermal Insulation: 40mm insulation layer minimizes heat loss and saves energy
✅ Safety Compliance: Pressure safety valve set at 0.42 MPa ensures system protection
✅ Corrosion-Resistant Construction: Galvanized steel outer casing for marine durability
✅ Automatic Operation: Seamless integration with existing freshwater systems
✅ Dual Voltage Compatibility: AC380V/50Hz or AC440V/60Hz operation

Certifications & Compliance
Our marine electric heating calorifiers meet international standards and hold certifications from major classification societies:
