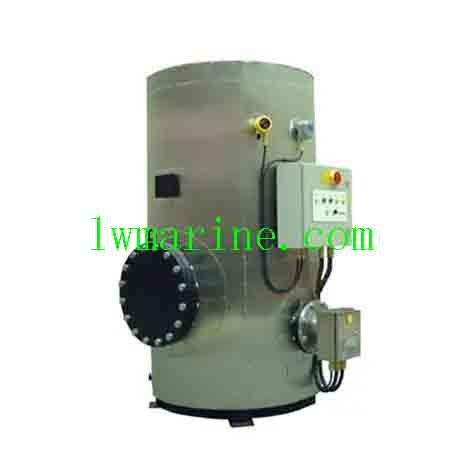

DZG Series Marine Electric Steam Heated Calorifier: High-Efficiency Marine Hot Water Solution
The DZG Series Marine Electric Steam Heated Calorifier is a premium marine electric water heater designed to meet the high-volume hot water demands of various maritime applications. This storage vessel is engineered to generate heat within a mass of stored water, ensuring a consistent and reliable supply of potable hot water. Operating on three-phase current and equipped with an IP56-rated electric control panel, this calorifier offers robust performance and durability.
Key Features and Benefits:
- High-Capacity Storage: Tank volumes range from 120 to 5000 liters (32-1320 gallons), catering to different hot water requirements.
- Versatile Heating Options: Operates with electricity, motor coolant water/oil, or steam, providing flexibility in energy sourcing.
- Premium Material Construction: Made from 316-304 quality stainless steel, ensuring corrosion resistance and longevity.
- Wide Voltage Range: Supports electrical heating powers between 10 – 300 KW and voltages from 208-480V, accommodating various power systems.
- Marine-Grade Durability: Specifically designed for harsh marine environments, ensuring reliable performance in all conditions.
Main Usage Areas:
The DZG Series Electric Steam Heating Calorifier is ideal for a wide range of maritime applications, including:
- Container Ships: Ensuring a steady supply of hot water for crew and operational needs.
- Naval Ships: Meeting the rigorous hot water demands of military vessels.
- Cruise Ships: Providing luxurious hot water services for passengers and crew.
- Petroleum Platforms: Supporting offshore operations with reliable hot water solutions.
- Mega Yachts, Tugboats, and Cruise Vessels: Enhancing onboard comfort and operational efficiency.
- Offshore Oil Plants: Supplying hot water for various industrial processes.
- Military Applications: Including naval assault boats, patrol boats, reinforcement boats, amphibian vessel groups, coast guard boats, rapid reaction boats, sailing school ships, salvage ships, replenishment vessels, and coast guard rescue boats.
Technical Data:
| Type | Volume (m³) | Working Pressure (Mpa) | Inlet Temp. (℃) | Outlet Temp. (℃) | Steam Press (Mpa) | Steam Heating Capacity (kg/h) | Steam Consume (kg/h) | Electric Heater Power (KW) | Power Supply | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| DZG-0.12 | 0.12 | 0.4 | 15 | 65 | 0.3 | – | – | – | – | – |
| DZG-0.2 | 0.2 | – | – | – | – | 275 | 27.5 | 90 | 3P/380V/50HZ, 3P/440V/60HZ | 210 |
| DZG-0.3 | 0.3 | – | – | – | – | 450 | 45 | 140 | – | 245 |
| DZG-0.5 | 0.5 | – | – | – | – | 750 | 75 | 180 | – | 330 |
| DZG-1.0 | 1.0 | – | – | – | – | 1200 | 120 | 280 | – | 400 |
| DZG-1.5 | 1.5 | – | – | – | – | 3250 | 325 | 360 | – | 590 |
| (Additional Model) | 4.9 (approx.) | – | – | – | – | 4900 | 490 | 540 | – | 760 |
FAQs:
Q1: What makes the DZG Series Electric Steam Heating Calorifier suitable for marine applications?
A1: The DZG Series is specifically designed for marine environments, featuring corrosion-resistant 316-304 stainless steel construction, a wide voltage range, and versatile heating options. Its robust design ensures reliable performance in harsh conditions, making it ideal for various maritime applications.
Q2: Can the DZG Series operate with different heating sources?
A2: Yes, the DZG Series can operate with electricity, motor coolant water/oil, or steam, providing flexibility in energy sourcing and ensuring consistent hot water supply regardless of available resources.
Q3: What is the capacity range of the DZG Series tanks?
A3: The DZG Series offers tank volumes ranging from 120 to 5000 liters (32-1320 gallons), catering to different hot water requirements for various vessel sizes and applications.
Q4: How does the IP56-rated electric control panel enhance the performance of the DZG Series?
A4: The IP56-rated electric control panel provides protection against dust and water ingress, ensuring reliable operation and longevity of the calorifier in marine environments. This feature enhances the overall durability and performance of the unit.
Q5: What are the power supply options for the DZG Series Electric Steam Heating Calorifier?
A5: The DZG Series supports electrical heating powers between 10 – 300 KW and voltages from 208-480V, accommodating various power systems and ensuring compatibility with different maritime electrical setups.
Attention please: The description was copied from different cooperating manufacturers. The description may be different with the goods, please check with us when order.
