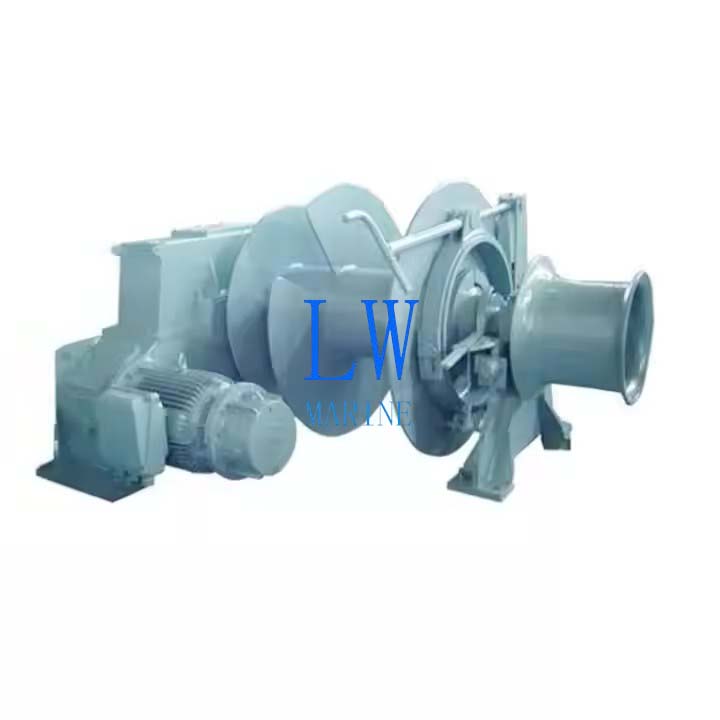

Marine Electric Dock Winch – Precision Docking Solution for Marine Applications
Product Description
The Marine Electric Dock Winch is a high-performance marine winching system designed to simplify and secure vessel docking operations. Engineered for reliable, smooth, and controlled movement of boats and watercraft, this electrically powered winch ensures safe and effortless docking/undocking in all marine environments.
Key Features & Benefits
✔ Superior Construction & Durability
-
High-Strength Materials: Aluminum, stainless steel, and carbon steel construction for optimal strength-to-weight ratio
-
Corrosion-Resistant Design: Built to withstand saltwater, UV exposure, and harsh marine conditions
-
Compact & Space-Saving: Ideal for dock installations with limited space
✔ Advanced Operation & Control
-
Dual Control Modes:
-
Local control panel (fixed on dock)
-
Wireless remote control (handheld for operator flexibility)
-
-
Programmable Operation: Adjustable speed and direction for precise boat positioning
-
Manual/Hydraulic Clutch & Brake Options: Ensures safe load handling and emergency stopping
✔ Low Maintenance & User-Friendly
-
Quick Installation: Simple mounting on docks, piers, or marine structures
-
Minimal Maintenance: Sealed components and easy-access design reduce upkeep
✔ Customization Options
-
Load Capacity & Drum Size: Tailored to vessel weight and docking needs
-
Motor Specifications: Standard or explosion-proof (for hazardous environments)
-
Special Finishes: Additional anti-corrosion coatings available
Parameters:
| Rated Pull | Drum Capacity | Motor Power | Rated Speed | |
| T | kN | φmm*m | kW | m/min |
| 0.5 | 5 | φ8*100 | 3/1.2 | ≥12 |
| 1 | 10 | φ10*150 | 4.3/1.7 | ≥12 |
| 2 | 20 | φ15*150 | 8.5/3.5 | ≥12 |
| 3 | 30 | φ17*150 | 11/11/7.5 | ≥12 |
| 4 | 40 | φ8*150 | 16/16/11 | ≥15 |
| 5 | 50 | φ20.5*180 | 22/22/16 | ≥15 |
| 7.5 | 75 | φ26*200 | 30/30/22 | ≥15 |
| 8 | 80 | φ26*200 | 30/30/22 | ≥15 |
| 10 | 100 | φ30*200 | 45/45/30 | ≥15 |
| 15 | 150 | φ30*200 | 45/45/30 | ≥15 |
| 16 | 160 | φ32*250 | 60/60/45 | ≥15 |
| 20 | 200 | φ40*250 | 45/45/30 | ≥9.6 |
| 25 | 250 | φ44*250 | 60/60/45 | ≥9.6 |
The description/sizes may be different with goods, please check with us when order.
