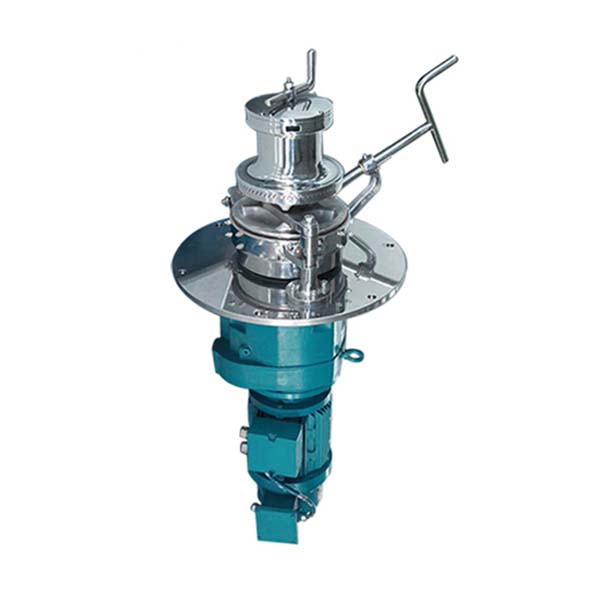

Marine Electric Anchor Capstan
Technical Specification & Product Description
1. Product Overview
The 16mm Marine Electric Anchor Capstan is a marine-grade vertical capstan designed for anchoring and mooring operations on small to medium vessels (fishing boats, yachts, pleasure crafts). Engineered to handle 16mm diameter ropes/cables, this 316L stainless steel unit combines compact size with high pulling force for reliable performance in harsh marine environments.
2. Technical Specifications
| Parameter | Specification |
|---|---|
| Rope Capacity | 16mm diameter (max) |
| Load Rating | 8KN–15KN (configurable) |
| Motor Options | 1/2/3-speed (0.75kW–3kW) |
| Brake System | Manual lever or hydraulic |
| Clutch Type | Manual/Hydraulic engagement |
| Gear Ratio | 20:1 helical gearbox |
| Mounting | Vertical (flange/base plate) |
| Control | Local + remote (waterproof pendant) |
Parameters:
| Chain diameter | Overload pull | Supporting load | Mooring load | Anchor speed | Chain working load | Mooring speed | Wire diameter |
| mm | KN | KN | KN | ≥m/min | KN | ≥m/min | mm |
| 16 | 16.4 | 67.5 | 5 | 12 | 10.9 | 15 | 9.3 |
The description/sizes may be different with goods, please check with us when order.
