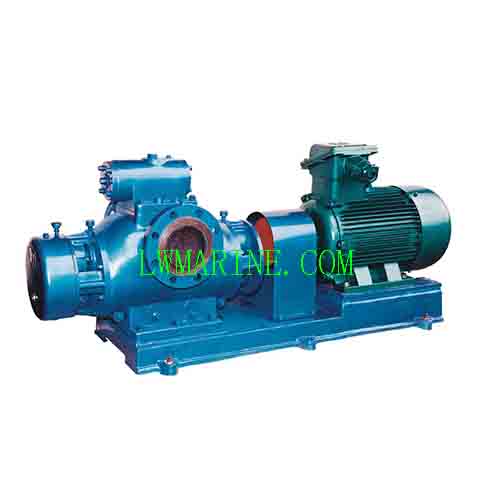

Marine Double Screw Cargo Oil Pump – High-Efficiency Fluid Transfer Solution for Demanding Applications
Product Overview
The Marine Double Screw Cargo Oil Pump represents advanced positive displacement technology engineered for superior performance in marine and industrial fluid transfer operations. This precision pump delivers exceptional efficiency in handling various viscosities, making it ideal for fuel oil transfer, hydraulic systems, and cargo operations. Its robust design ensures reliable performance in the most demanding environments, from ship engine rooms to industrial processing facilities.
Industry Applications
Marine & Offshore Operations
-
Marine fuel oil transfer and supply systems
-
Vessel lubrication oil circulation pumps
-
Shipboard hydraulic system pumps
-
Cargo oil loading and unloading operations
-
Marine fuel injection and booster pumps
-
Bilge and ballast water handling (compatible fluids)
Heating & Energy Sector
-
Fuel oil supply pumps for heating equipment
-
Burner fuel delivery and circulation systems
-
Thermal oil transfer and distribution
Industrial Machinery Applications
-
Hydraulic system power units
-
Industrial lubrication oil circulation
-
Remote control motor and power transmission systems
-
Machinery coolant and lubricant supply
Process Industries
-
Chemical processing and transfer pumps
-
Petrochemical loading and unloading systems
-
Food-grade fluid transfer applications
-
Industrial supply and conveyance systems
Key Features & Advantages
Superior Performance Characteristics
-
High Efficiency Operation: Optimized screw design minimizes energy consumption
-
Vibration-Free Performance: Hydraulically balanced rotors ensure smooth operation
-
Pulsation-Free Flow: Consistent output without pressure fluctuations
-
Exceptional Self-Priming Capability: Handles various fluid conditions reliably
-
Compact Modular Design: Space-saving footprint with multiple installation options
-
High-Speed Capability: Compact design enables operation at elevated speeds
-
Interchangeable Components: Standardized parts reduce maintenance costs
Technical Excellence
-
Solid Particle Tolerance: Handles particle-free media with exceptional reliability
-
Broad Viscosity Range: 1–3,000 cST (extendable to 3,000,000 cST with proper configuration)
-
Extended Pressure Capacity: 0–4 MPa operating pressure range
-
High Flow Capacity: 1–450 m³/h flow rate capabilities
-
Elevated Temperature Operation: Suitable for media temperatures up to 150°C
Performance Specifications
| Parameter | Specification Range |
|---|---|
| Viscosity Range | 1–3,000 cST (extendable to 3×10⁶ cST) |
| Pressure Range | 0–4 MPa |
| Flow Capacity | 1–450 m³/h |
| Temperature Limit | <150°C |
| Fluid Type | Non-abrasive, solid-free media |
The description/sizes may be different with goods, please check with us when order.
