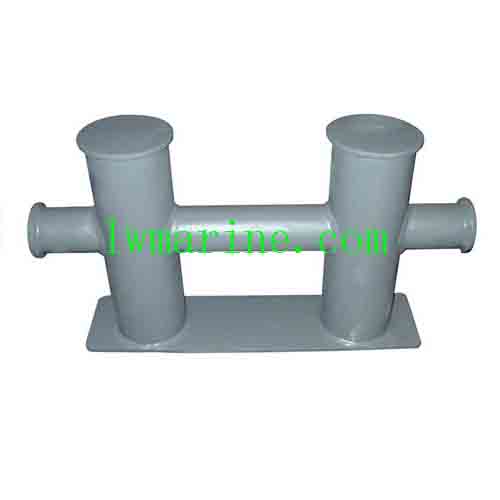

Marine Double Cross Bollard Type E (GBT554-96) – Ultimate Mooring Security
Heavy-Duty Bollard for Demanding Marine Environments
The GBT554-96 Type E Marine Double Cross Bollard represents the pinnacle of our marine bollard series, offering superior strength and versatility for critical mooring applications. Engineered to Chinese national standards and certified by China Classification Society (CCS), this robust solution ensures maximum vessel security in ports, docks, and offshore installations worldwide.
5 Maintenance Essentials for Long-Term Performance
1️⃣ Routine Visual Inspections
-
Monthly checks for surface corrosion or structural wear
-
Early detection prevents operational failures
2️⃣ Thorough Cleaning Protocol
-
Bi-monthly washing with mild detergent
-
Salt and debris removal prevents surface degradation
3️⃣ Precision Lubrication
-
Quarterly application of marine-grade lubricant
-
Maintains smooth operation of all moving components
4️⃣ Professional Refinishing
-
Annual paint inspection and touch-ups
-
Marine-grade coatings for maximum corrosion resistance
5️⃣ Expert Replacement Service
-
Certified technicians available for installation
-
Seamless upgrades when required
Key Advantages
✔ Unmatched Load Capacity
-
Double cross design distributes mooring forces evenly
-
Handles extreme tension from large vessels
✔ Durable Construction
-
Heavy-duty steel plate fabrication
-
Optional corrosion-resistant treatments available
✔ Global Compliance
-
Certified to CCS, ABS, BV, LR, NK, RINA standards
-
Full compliance with GBT554-96 requirements
✔ Versatile Applications
-
Ideal for heavy commercial ports
-
Suitable for offshore platforms
-
Perfect for naval installations
Complete Bollard Series Comparison
| Type | Design | Best For |
|---|---|---|
| A | Twin Horn | Standard mooring |
| B | Inserted | Space-constrained areas |
| C | Simple | Light to medium duty |
| D | Single Cross | Enhanced security |
| E | Double Cross | Heavy-duty applications |
Technical Specifications
-
Model: Double Cross Bollard Type E
-
Material: High-Grade Steel Plate
-
Standard: GBT554-96 Compliant
-
Certifications: CCS, ABS, BV, LR, NK, RINA
Parameters:
| Nominal Dia. | D | D1 | h2 | t | h | h1 | r | A | A1 | A2 | Max. Dia. | Screw | Weight | |||
| Steel Rope | Hemp Rope | Synthetic Carbon Fiber Rope | (kg) | |||||||||||||
| Screw Dia. | Quantity | |||||||||||||||
| 50 | 50 | 65 | – | 6 | 8 | 85 | 20 | 180 | 270 | 90 | 8.7 | 75 | 16 | M12 | 6 | 7 |
| 75 | 75 | 95 | – | 7 | 10 | 130 | 25 | 275 | 400 | 125 | 11.5 | 90 | 20 | M16 | 6 | 16 |
| 100 | 100 | 120 | – | 7 | 12 | 160 | 28 | 350 | 494 | 144 | 13.5 | 100 | 24 | M18 | 6 | 27 |
| 125 | 125 | 145 | – | 9 | 14 | 195 | 35 | 425 | 590 | 170 | 15.5 | 125 | 28 | M22 | 6 | 49 |
| 150 | 150 | 170 | – | 9 | 16 | 210 | 35 | 500 | 700 | 200 | 17.5 | 150 | 30 | M22 | 6 | 71 |
| 175 | 180 | 200 | – | 10 | 18 | 240 | 38 | 530 | 774 | 244 | 19.5 | 175 | 36 | M24 | 6 | 103 |
| 200 | 203 | 225 | 60 | 12 | 145 | 275 | 20 | 600 | – | – | 22.5 | 200 | 40 | – | – | 181 |
| 250 | 245 | 280 | 60 | 14 | 155 | 350 | 25 | 750 | – | – | 26 | 225 | 48 | – | – | 310 |
| 300 | 290 | 330 | 73 | 16 | 180 | 420 | 30 | 900 | – | – | 30.5 | 250 | 56 | – | – | 576 |
The description/sizes may be different with goods, please check with us when order.
