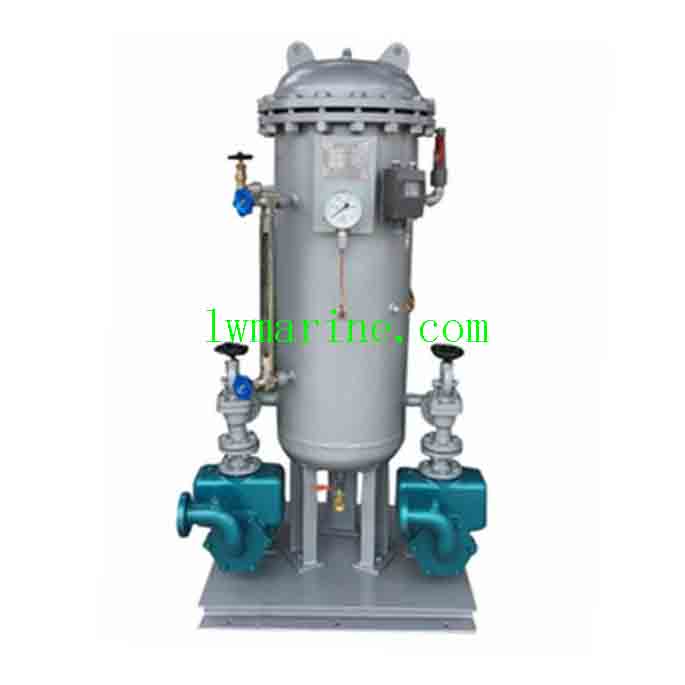

YLG-0.30 High-Efficiency Marine Domestic Water Pressure System for Reliable Onboard Water Supply
The YLG-0.30 Marine Domestic Water Pressure System is a premium solution designed specifically for the water supply systems on ships and marine vessels, catering to both fresh water and seawater applications. This robust and reliable pressure tank ensures a consistent and pressurized water supply, meeting the demanding requirements of marine environments.
Technical Requirements & Specifications:
- Flange Standard: Compliant with CB/T46-1999 PN1.0, ensuring secure and leak-proof connections.
- Shell Cover Thickness: Designed with consideration for forming thinning, ensuring structural integrity and durability.
- Security Settings: The system incorporates comprehensive safety features to protect against overpressure and ensure safe operation.
Principle & Operation:
The YLG-0.30 system utilizes a pressure water pump to compress air within the tank, maintaining the water under optimal pressure for onboard use. This ensures a steady and reliable water supply, enhancing living conditions and operational efficiency on ships.
Key Components & Functions:
- Liquid Level Meter: Clearly displays the water level within the tank, allowing for easy monitoring and timely refilling.
- Pressure Gauge: Indicates the current pressure inside the tank, ensuring safe and efficient operation.
- Pressure Controller: Automatically controls the start and stop of the water pump. When the tank pressure drops below 0.4 MPa, the pump activates to refill the tank until the pressure reaches 0.6 MPa.
- Safety Valve: Opens to release excess pressure when the tank pressure exceeds 0.63 MPa, preventing potential damage and ensuring crew safety.
- Charge Valve: Used to introduce compressed air into the tank, maintaining the desired pressure levels.
- Discharging Valve: Facilitates the emptying of the tank during maintenance procedures, ensuring hassle-free servicing.
Outer Joint Specifications:
| Mark | Name | Size | Standard |
|---|---|---|---|
| a | Relief Outlet | 3/4′ | |
| b | Water Inlet | DN32 | CB/T46-1999 PN1.0 |
| c | Compressor Air Inlet | 3/8′ | CB*53-80 |
| d | Water Outlet | DN32 | CB/T46-1999 PN1.0 |
Design Data:
- Working Pressure: 0.6 MPa
- Design Pressure: 0.7 MPa
- Working Temperature: 0~45℃
- Design Temperature: 50℃
- Main Materials: CCS-B/SS304/SS316, ensuring corrosion resistance and longevity.
- Corrosion Allowance: 0.75mm
- Welded Joint Coefficient: 0.6
- Capacity: 0.3m³
- Relief Valve Pressure Jump: 0.63 MPa
- Gross Weight (G.W.): 265 Kgs (with standard export wooden case)
- Net Weight (N.W.): 215 Kgs
FAQs:
Q1: How does the YLG-0.30 Marine Domestic Water Pressure System ensure a consistent water supply on ships?
A1: The system uses a pressure water pump to compress air within the tank, maintaining optimal pressure levels for a steady and reliable water supply to onboard facilities.
Q2: What safety features are incorporated into the YLG-0.30 system?
A2: The system includes a safety valve that opens to release excess pressure when it exceeds 0.63 MPa, preventing potential damage and ensuring the safety of the crew and vessel.
Q3: Can the YLG-0.30 system be used with both fresh water and seawater on ships?
A3: Yes, the YLG-0.30 Marine Domestic Water Pressure System is designed to cater to both fresh water and seawater applications, making it versatile for various marine environments.
Q4: What materials are used in the construction of the YLG-0.30 pressure tank?
A4: The tank is constructed using high-quality materials such as CCS-B, SS304, and SS316, ensuring corrosion resistance and longevity even in harsh marine conditions.
Q5: How easy is it to maintain the YLG-0.30 Marine Domestic Water Pressure System?
A5: The system is designed with ease of maintenance in mind, featuring a discharging valve for emptying the tank during servicing and clear indicators for monitoring water level and pressure. Additionally, the use of standard flange connections simplifies installation and replacement of components.
Attention please: The description was copied from different cooperating manufacturers. The description may be different with the goods, please check with us when order.
