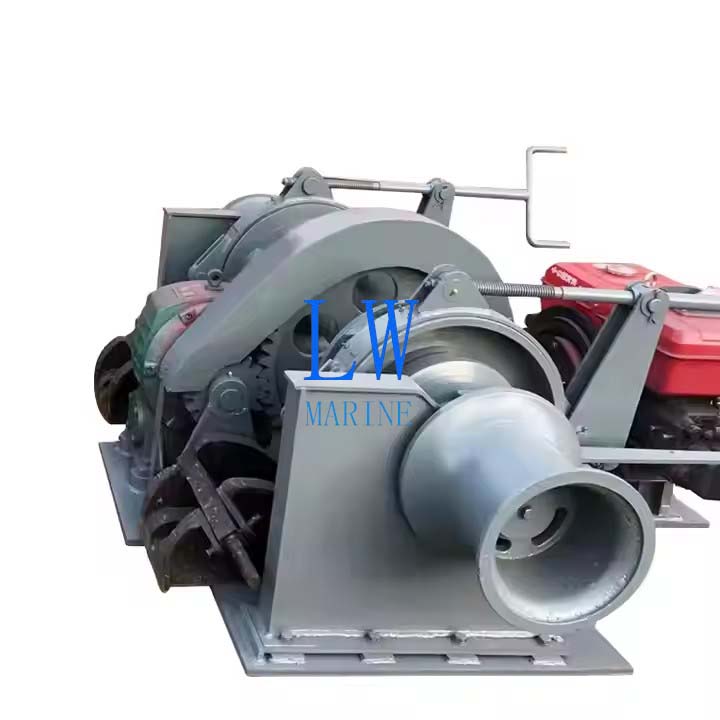

32mm Single Gypsy Marine Diesel Windlass
Application
The 32mm Marine Diesel Windlass Single Gypsy is a heavy-duty anchoring system designed for commercial vessels requiring reliable performance in demanding sea conditions.
Key Features:
-
Powered by a high-torque diesel engine
-
Designed for 32mm anchor chains
-
Single gypsy wheel configuration
-
Integrated warping head for mooring operations
Superior to Electric/Hydraulic Models:
-
Greater power output
-
Enhanced structural stability
-
Optimal performance in extreme weather
Material Specifications
-
Main structure: High-grade cast steel
-
Critical components: 316L stainless steel (marine-grade)
Technical Advantages
✔ Robust Construction
-
Compact yet heavy-duty design
-
Corrosion-resistant materials
✔ Operational Control
-
Local and remote operation
-
Manual brake and clutch system
✔ Maintenance Benefits
-
Easy installation
-
Simplified servicing requirements
✔ Certified Quality
-
LR, RINA, BV approved
✔ Custom Options
-
Configurable to vessel specifications
| Main Technical Data Of Windlass | ||||||
| Chain Dia. | Supporting Load | Working Speed | Speed | Working Load | Overload pull | Motor Power |
| mm | KN | m/min | r/min | KN | KN | kW |
| 32 | 261 | ≥9 | 2000 | 43.5 | 65.3 | 21 |
The description/sizes may be different with goods, please check with us when order.
