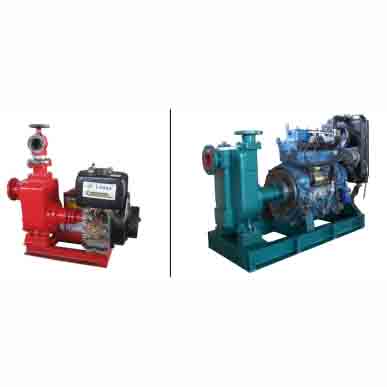

Marine diesel emergency fire pump CWY Series
1. General
CWY-type Marine diesel emergency fire pump is developed in accordance with relevant provisions of the rules and regulations for the construction of sea-going steel ships-2006, issued by china classification society (CCS), and the international Convention on the safety of life at sea. It is mainly applied in emergency fire protection for vessels, and additionally, in industrial and mining enterprises, ports and docks, warehouse or freight yard etc.
The pump integrates widely acclaimed features such as light weight, small size, flexibility in moving, rapid starting, rapid discharge, large capacity of fuel tank, anti-corrosion, reliability and ease of maintenance etc. As two type of pumps are available for sale, user should note his/her preference when making an order.
2. Main technical parameter
| No. | Pump Type | Flow (m³/h) | Head (m) | Speed (r/min) | Suction height (m) | Shaft Power (kW) | Motor Type |
|---|---|---|---|---|---|---|---|
| 1 | 40CWY-25 | 20 | 25 | 3500 | 6-7 | 5.3 | KM-186F-6.3KW |
| 2 | 40CWY-30 | 15 | 30 | 3500 | 6-7 | 5.3 | KM-186F-6.3KW |
| 3 | 40CWY-60 | 14.6 | 60 | 3500 | 6-7 | 5.3 | KM-186F-6.3KW |
| 4 | 50CWY-25 | 20 | 25 | 3500 | 6-7 | 5.3 | KM-186F-6.3KW |
| 5 | 50CWY-43 | 25.5 | 43 | 3500 | 6-7 | 5.3 | KM-186F-6.3KW |
| 6 | 65CWY-25 | 20 | 25 | 3500 | 6-7 | 5.3 | KM-186F-6.3KW |
| 7 | 65CWY-30 | 25 | 30 | 3500 | 6-7 | 5.3 | KM-186F-6.3KW |
| 8 | 65CWY-40 | 30 | 40 | 3500 | 6-7 | 5.3 | KM-186F-6.3KW |
| 9 | 65CWY-45 | 20 | 45 | 3500 | 6-7 | 5.3 | KM-186F-6.3KW |
| 10 | 80CWY-55 | 60 | 55 | 2000 | 5-6 | 30 | ZH495C-35.3KW |
| 11 | 80CWY-60 | 50 | 60 | 2000 | 5-6 | 30 | ZH495C-35.3KW |
| 12 | 80CWY-80 | 60 | 80 | 2000 | 5-6 | 30 | ZH495C-35.3KW |
| 13 | 100CWY-75 | 72 | 75 | 2000 | 5-6 | 30 | ZH495C-35.3KW |
| 14 | 150CWY-80 | 200 | 80 | 2000 | 5-6 | 120 | HD6135K-120KW |
3. Installation and Contour Dimensions
| Type | L | L1 | L2 | L3 | L4 | F | A | M | N | B1 | B2 | H1 | H2 | H3 | D | Ø | * | Ø * | Ø * | Ø * | G | n-Ød | n-ØD |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 40CWY-25 | 751 | 903 | 370 | 361 | 348 | 174 | 266 | 230 | 410 | 232 | 351 | 801.5 | 550 | 150 | 40 | 84 | 110 | 40 | 76 | 4-Ø18 | 4-Ø18 | ||
| 40CWY-30 | 751 | 903 | 370 | 361 | 348 | 174 | 266 | 230 | 410 | 232 | 351 | 801.5 | 550 | 150 | 40 | 84 | 110 | 40 | 76 | 4-Ø18 | 4-Ø18 | ||
| 40CWY-60 | 792 | 525 | 370 | 370 | 419 | 182 | 300 | 230 | 465 | 276 | 436 | 884 | 589 | 150 | 40 | 84 | 110 | 40 | 98 | 4-Ø18 | 4-Ø18 | ||
| 50CWY-25 | 751 | 903 | 370 | 361 | 348 | 174 | 266 | 230 | 410 | 232 | 351 | 801.5 | 550 | 150 | 50 | 99 | 125 | 50 | 76 | 4-Ø18 | 4-Ø18 | ||
| 50CWY-43 | 751 | 903 | 370 | 370 | 419 | 182 | 300 | 230 | 465 | 276 | 436 | 884 | 589 | 165 | 50 | 99 | 125 | 50 | 98 | 4-Ø18 | 4-Ø18 | ||
| 65CWY-25 | 751 | 903 | 370 | 361 | 348 | 174 | 266 | 230 | 410 | 232 | 351 | 801.5 | 550 | 165 | 65 | 110 | 145 | 65 | 76 | 4-Ø18 | 4-Ø18 | ||
| 65CWY-30 | 751 | 903 | 370 | 361 | 348 | 174 | 266 | 230 | 410 | 232 | 351 | 801.5 | 550 | 165 | 65 | 110 | 145 | 65 | 76 | 4-Ø18 | 4-Ø18 | ||
| 65CWY-40 | 822 | 542 | 380 | 401 | 419 | 207.5 | 300 | 230 | 465 | 276 | 436 | 824.5 | 613.5 | 185 | 65 | 110 | 145 | 65 | 98 | 4-Ø18 | 4-Ø18 | ||
| 65CWY-45 | 822 | 542 | 380 | 401 | 419 | 207.5 | 300 | 230 | 465 | 276 | 436 | 824.5 | 613.5 | 185 | 65 | 110 | 145 | 65 | 98 | 4-Ø18 | 4-Ø18 | ||
| 80CWY-55 | 792 | 525 | 370 | 370 | 419 | 182 | 300 | 230 | 465 | 276 | 436 | 884 | 589 | 185 | 65 | 110 | 145 | 65 | 98 | 4-Ø18 | 4-Ø18 | ||
| 80CWY-60 | 1632 | 1230 | 900 | 692 | 950 | 264 | 600 | 540 | 725 | 450 | 720 | 924.5 | 1095 | 200 | 80 | 132 | 160 | 80 | 160 | 4-Ø26 | 4-Ø18 | ||
| 80CWY-80 | 1632 | 1230 | 900 | 692 | 950 | 264 | 600 | 540 | 725 | 450 | 720 | 924.5 | 1095 | 200 | 80 | 132 | 160 | 80 | 160 | 4-Ø26 | 4-Ø18 | ||
| 100CWY-75 | 1848 | 1230 | 1200 | 895 | 950 | 325 | 600 | 540 | 725 | 450 | 812 | 1099 | 1095 | 220 | 100 | 156 | 180 | 100 | 200 | 4-Ø26 | 4-Ø18 | ||
| 150CWY-80 | 2500 | 2000 | 1600 | 882 | 1618 | 362.5 | 900 | 700 | 975 | 655 | 1017 | 1250 | 1425 | 285 | 150 | 211 | 240 | 125 | 200 | 4-Ø26 | 4-Ø22 |
Note: The description may be different with the product, please contact us for quotation.
