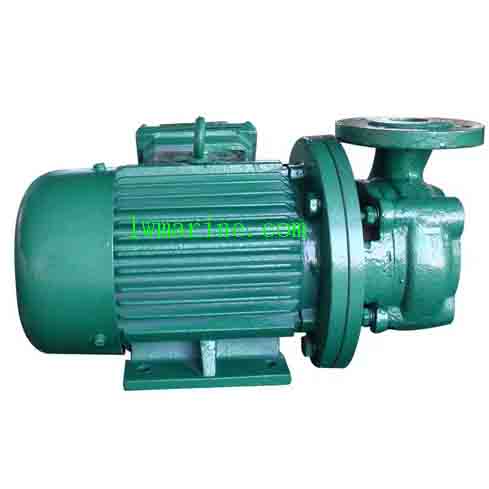

Marine Crushing Pump
The CWF Series Marine Crushing Pump is a specialized open-impeller centrifugal pump engineered for simultaneous grinding and pumping applications in marine environments. Designed to handle challenging fluid-solid mixtures with superior particle reduction capabilities.
Key Features & Benefits
✔ Integrated Grinding Mechanism – Effectively processes soft solids to ≤5mm particle size
✔ High-Temperature Capability – Handles fluids up to 85°C continuously
✔ Dual-Function Design – Combines cutting, grinding, and pumping in one operation
✔ Heavy Oil Processing – Specialized for low-temperature solidified oil grinding and atomization
Parameters:
| Model | Lift(m) | Cavitation(m) | Efficiency (%) | Weight(Kg) | Flow(m3/h) | Motor(KW) |
| 0.5CWF-10B | 10 | 5 | 21 | 26 | 5 | 1.1KW y802-2H |
| 1CWF-11B | 11 | 5 | 21 | 32 | 10 | 1.5KW y90s-2H |
| 2CWF-11B | 11 | 5 | 25 | 42 | 20 | 2.2KW y90L-2H |
| 3CWF-10B | 10 | 5 | 45 | 75 | 30 | 4KW y112m-2H |
Attention please: The description was copied from different cooperating manufacturers. The description may be different with the goods, please check with us when order.
