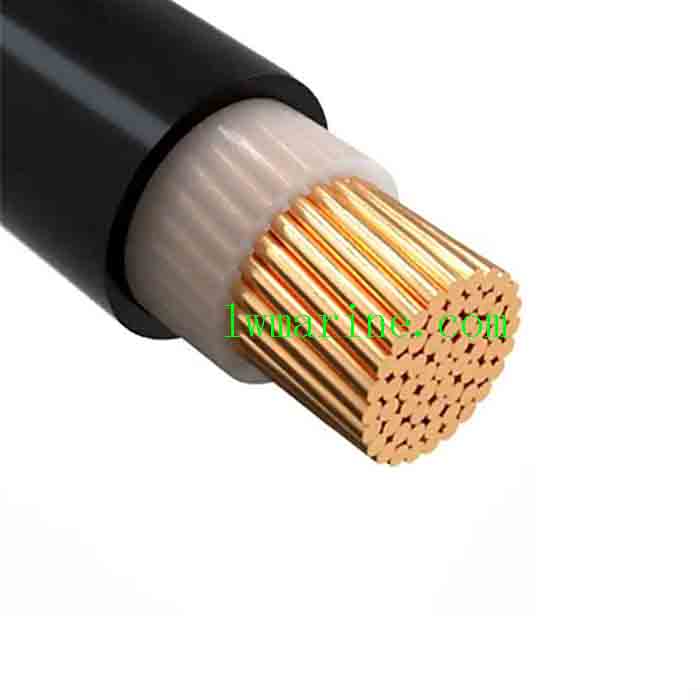

Marine Copper Power Cable
Application
For fixed installation on marine craft above and below decks.
Colour code for cores
All sizes and dimensions are colour coded
Properties
Oil resistant and flame retardant
Conductor operating temperature max. +85 °C
Min. installation temperature -10 °C
Nominal voltage 250 V
Cable structure
Stranded (7) tinned copper conductor to
Stranded (7) tinned copper conductor to
Halogen-free insulating layer
Overall tinned copper, braided screen
Polyester foil seperator
Overall polyester taped inner covering
Tinned copper, braided overall screen
Polyester foil separator
Elastomere based outer sheath
Sheath colour black
Sheath colour black
Cross-linked polyolefin-insulation
Core stranded to pairs with optimal lay-length
Tinned copper, braided screening over each pair
Marine Copper Power Cable Specification:
| Part no. | Cop. | No.cores x | Outer Ø | AWG-No. | Weight |
| weight kg / km | cross-sec. mm² | min. – max. mm | app. kg / km | ||
| 59360 | 89,0 | 2 x 1,5 | 7,0 – 8,0 | 16 | 100,0 |
| 59361 | 105,0 | 3 x 1,5 | 7,2 – 8,4 | 16 | 120,0 |
| 59362 | 131,0 | 4 x 1,5 | 7,8 – 9,4 | 16 | 145,0 |
| 59363 | 146,0 | 5 x 1,5 | 8,3 – 9,6 | 16 | 165,0 |
| 59364 | 180,0 | 7 x 1,5 | 9,3 – 10,8 | 16 | 215,0 |
| 59365 | 244,0 | 10 x 1,5 | 10,8 – 12,5 | 16 | 285,0 |
| 59366 | 276,0 | 12 x 1,5 | 12,0 – 13,5 | 16 | 320,0 |
| 59367 | 310,0 | 14 x 1,5 | 12,7 – 14,2 | 16 | 375,0 |
| 59368 | 342,0 | 16 x 1,5 | 13,2 – 14,8 | 16 | 400,0 |
| 59369 | 401,0 | 19 x 1,5 | 13,9 – 15,3 | 16 | 475,0 |
| 59370 | 494,0 | 24 x 1,5 | 15,5 – 17,5 | 16 | 595,0 |
| 59371 | 539,0 | 27 x 1,5 | 16,6 – 18,3 | 16 | 645,0 |
| 59372 | 633,0 | 33 x 1,5 | 17,5 – 19,5 | 16 | 790,0 |
The description/sizes may be different with goods, please check with us when order.
