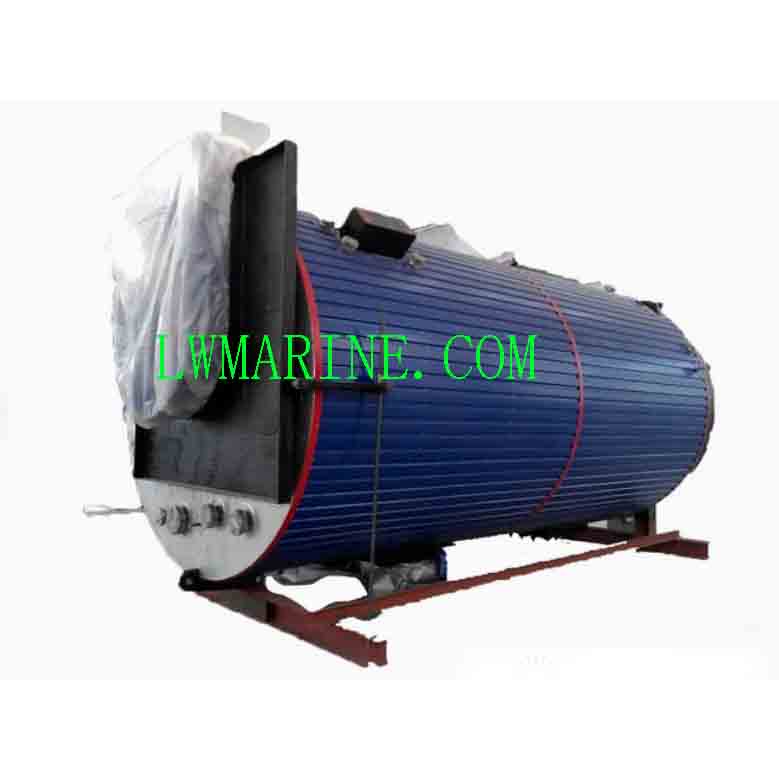

Marine Combined Boiler │ Integrated Oil-Fired & Exhaust Gas Boiler System for Ships
Product Overview
The Marine Combined Boiler is an advanced, space-saving solution that integrates an oil-fired boiler and an exhaust gas boiler into a single, high-efficiency unit. Designed for modern vessels, it captures waste heat from main and auxiliary engine exhaust to generate steam, significantly reducing fuel consumption and improving overall energy efficiency. It is ideal for a wide range of heating and operational needs on board.
Key Features & Benefits
-
Dual-Function Design: Combines oil-fired and exhaust gas boiler operations into one compact system, reducing space requirements and simplifying installation.
-
Energy Efficient Performance: Maximizes thermal efficiency by utilizing exhaust gas heat recovery, lowering fuel consumption and operational costs.
-
Continuous Operation: Maintains a near-constant hot state, minimizing heat loss during start-up and shutdown phases.
-
Simplified System Layout: Requires fewer accessories and reduces overall piping complexity, leading to easier maintenance and enhanced reliability.
-
Automated & Safe: Designed with modern control systems for safe, automated operation in manned or unmanned engine rooms.
Technical Specifications
| Model | Evap. Capacity (kg/h) | Exhaust Gas Heating Area (m²) | Working Pressure (MPa) | Weight (kg) | Water Capacity (m³) | Outline Dimensions (mm) |
|---|---|---|---|---|---|---|
| WZY0.3/25-0.7 | 300 | 25 | 0.7 | 4300 | 2.8 | 2004xDN250xDN400… |
| WZY03/40-0.7 | 300 | 40 | 0.7 | 6300 | 4.2 | 2204xDN250xDN500… |
| WZY03/60-0.7 | 300 | 60 | 0.7 | 7100 | 5.1 | 2404xDN250xDN500… |
| ZYW0.5/15-0.5 | 500 | 15 | 0.5 | 3500 | 1.5 | 1650xDN200xDN250… |
| WZY0.7/40-0.7 | 700 | 40 | 0.7 | 5500 | 4.1 | 2204xDN300xDN500… |
| ZYW1.0/36-0.5 | 1000 | 36 | 0.5 | 5300 | 2.8 | 2000xDN300xDN350… |
| ZYW1.0/36-0.7 | 1000 | 36 | 0.7 | 5500 | 2.8 | 2000xDN300xDN350… |
The description/sizes may be different with goods, please check with us when order.
