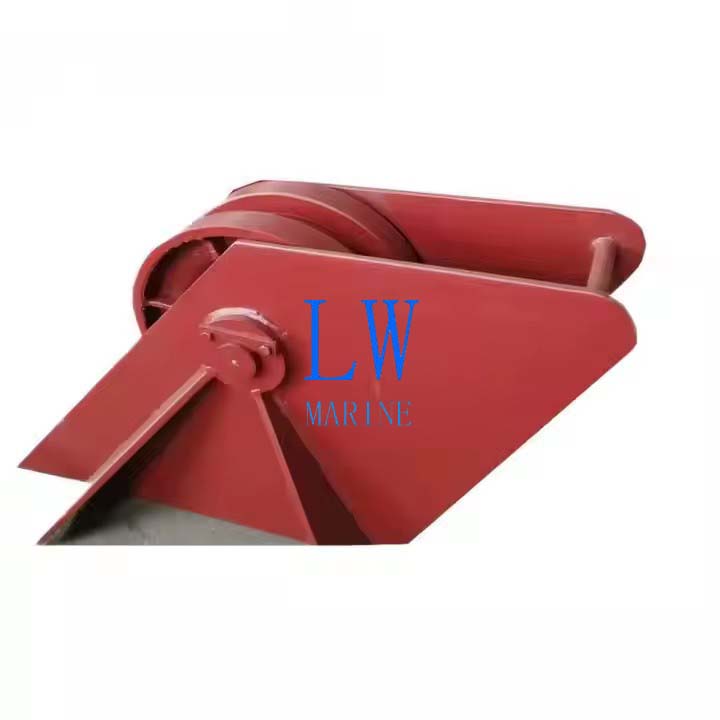

CB/T 290 – 95 Marine Chain Wheel – Ultimate Solution for Anchor Chain Preservation
Superior Performance for Secure and Efficient Anchoring Procedures
Our Marine Chain Wheel, strictly adhering to the CB/T 290 – 95 standard, is meticulously crafted to deliver the following outstanding advantages for your anchoring operations:
✔ Friction – Free Anchoring: Effectively eradicates friction between the anchor chain and the hawse pipe, reducing wear and tear on both components during the anchoring process.
✔ Chain Integrity Maintenance: Safeguards the structural integrity of the anchor chain throughout its deployment and retrieval, preventing premature damage and extending its service life.
✔ Smooth Anchoring Operations: Features a defect – free construction that ensures seamless and trouble – free operation, enhancing the overall efficiency of your anchoring system.
Key Features and Advantages
• High – Grade Materials: Constructed from premium cast steel and steel plate, providing exceptional strength and durability to withstand the harsh marine environment.
• Extensive Size Compatibility: Designed to accommodate a wide range of anchor chain diameters, from 12.5mm to 68mm, making it suitable for various types of vessels.
• Impeccable Build Quality: Free from air holes or cracks that could potentially compromise its strength, ensuring reliable performance under heavy loads.
• Global Industry Approvals: Holds certifications from leading international classification societies, including CCS, ABS, BV, NK, LR, and RINA, guaranteeing its compliance with global safety and quality standards.
Technical Specifications
- Standard Compliance: CB/T 290 – 95
- Nominal Diameter Range: 14 – 68mm
- Recommended Installation Position: Positioned between the hawse pipe and the chain stopper for optimal performance.
Detailed Parameters Table
| Type | D (mm) | d (mm) | L (mm) | B (mm) | H (mm) | Applicable Diameter of Anchor Chain (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| 14 | 154 | 26 | 164 | 94 | 150 | 12.5 – 14 | 6.5 |
| 17.5 | 192 | 32 | 186 | 108 | 170 | 16 – 17.5 | 10.1 |
| 20.5 | 226 | 38 | 208 | 122 | 210 | 19 – 20.5 | 16.4 |
| 24 | 264 | 42 | 236 | 142 | 240 | 22 – 24 | 24.3 |
| 28 | 308 | 48 | 262 | 160 | 280 | 26 – 28 | 38.7 |
| 32 | 352 | 54 | 292 | 178 | 310 | 30 – 32 | 53.4 |
| 36 | 396 | 58 | 319 | 201 | 360 | 34 – 36 | 76.4 |
| 40 | 440 | 64 | 349 | 219 | 390 | 38 – 40 | 97.3 |
| 44 | 484 | 70 | 377 | 239 | 430 | 42 – 44 | 126.9 |
| 48 | 528 | 74 | 405 | 259 | 470 | 46 – 48 | 153.8 |
| 52 | 572 | 78 | 430 | 280 | 510 | 50 – 52 | 191.4 |
| 56 | 616 | 82 | 466 | 302 | 540 | 54 – 56 | 226.9 |
| 60 | 660 | 88 | 492 | 320 | 580 | 58 – 60 | 286.1 |
| 64 | 704 | 94 | 526 | 342 | 620 | 62 – 64 | 330.3 |
| 68 | 748 | 98 | 552 | 360 | 660 | 66 – 68 | 396.6 |
This CB/T 290 – 95 Marine Chain Wheel is an indispensable component for any marine anchoring system, offering unparalleled protection, compatibility, and reliability.
The description/sizes may be different with goods, please check with us when order.
