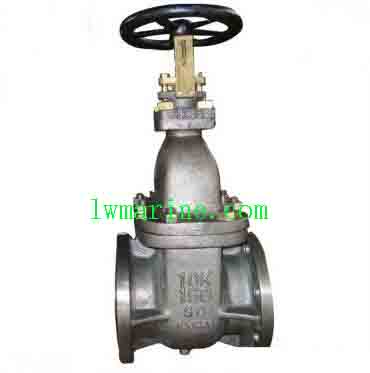

JIS F7363C Marine Cast Steel Gate Valve – 10K Flanged Ship Gate Valve for Marine Applications
Overview
Our JIS F7363C Marine Cast Steel Gate Valve is a high-performance flanged gate valve designed for rigorous marine service applications. Manufactured to exact Japanese Industrial Standard F7363C specifications, this 10K pressure rated gate valve features a robust cast steel body with full stainless steel trim for superior corrosion resistance. Compliant with JIS B2220 steel pipe flange dimensions, it ensures perfect integration into ship piping systems for both newbuilding projects and vessel repairs across commercial shipping and offshore industries.
Key Features & Benefits
-
JIS F7363C Standard Compliance: Precision-engineered to Japanese Industrial Standard specifications for guaranteed marine performance
-
10K Pressure Rating: Reliable operation in medium-pressure marine applications (approximately 100 psi)
-
Full Stainless Steel Trim: Seat, disc, and stem manufactured from stainless steel for exceptional corrosion resistance
-
Cast Steel Construction: Robust body material withstands harsh marine environments and mechanical stress
-
JIS B2220 Flange Compatibility: Standard flange dimensions ensure easy installation and system integration
-
Bidirectional Sealing: Provides reliable shut-off in both flow directions
-
Rising Stem Design: Visual position indication for easy operation status monitoring
-
Full Certification Available: Manufactured to meet ABS, BV, CCS, LR, DNV, RINA classification society requirements
Technical Specifications
-
Design Standard: JIS F7363C
-
Flange Standard: JIS B2220
-
Pressure Rating: 10K (100 psi)
-
Temperature Range: -20°C to 425°C
-
Body Material: Cast Steel (SCPH2/WCB equivalent)
-
Trim Materials: Stainless Steel (Seat, Disc, Stem – SS304/SS316)
-
Nominal Diameter: DN50 to DN200 (2″ to 8″)
-
Operation: Handwheel Operated, Rising Stem
-
Media: Sea Water, Fresh Water, Oil, Steam, Air, and various marine fluids
Dimension Table (JIS F7363C 10K Standard)
| Model | L | D | C | Bolt Holes | h | t | H | D2 |
|---|---|---|---|---|---|---|---|---|
| 7363C 10K050 | 180 | 130 | 105 | 4 | 15 | 16 | 285 | 125 |
| 7363C 10K065 | 190 | 155 | 130 | 4 | 15 | 18 | 330 | 140 |
| 7363C 10K080 | 200 | 180 | 145 | 4 | 19 | 18 | 380 | 160 |
| 7363C 10K100 | 230 | 200 | 165 | 8 | 19 | 20 | 430 | 180 |
| 7363C 10K125 | 250 | 235 | 200 | 8 | 19 | 20 | 495 | 200 |
| 7363C 10K150 | 270 | 265 | 230 | 8 | 23 | 22 | 560 | 224 |
| 7363C 10K200 | 290 | 320 | 280 | 8 | 23 | 24 | 680 | 280 |
The description/sizes may be different with goods, please check with us when order.
