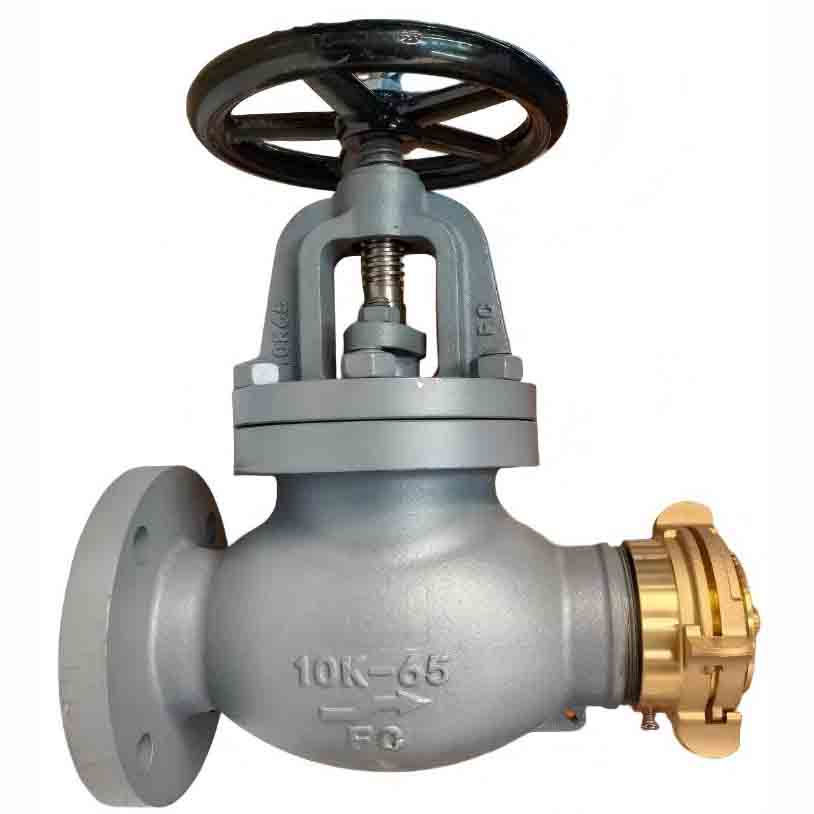

Marine Cast Iron Straight Through Fire Valve
(JIS Standard)
Cast Iron 5K Straight-through Fire Valve
| Code | Standard Number | Flange Distance (L) (mm) | Flange Outer Diameter (D) (mm) | Center Distance (C) (mm) | Bolt Holes (mm) | Weight (G) (kg) |
|---|---|---|---|---|---|---|
| 751731 | F7333A 5K50 | 130 | 105 | – | 4×Ф15 | 14.7 |
| – | F7333A 5K65 | 155 | 130 | – | 4×Ф15 | 21.2 |
Cast Iron 10K Straight-through Fire Valve
| Code | Standard Number | Flange Distance (L) (mm) | Flange Outer Diameter (D) (mm) | Center Distance (C) (mm) | Bolt Holes (mm) | Weight (G) (kg) |
|---|---|---|---|---|---|---|
| 751732 | F7333A 10K50 | 155 | 120 | – | 4×Ф19 | 18.9 |
| 751733 | F7333A 10K65 | 175 | 140 | – | 4×Ф19 | 28.2 |
Attention please: The description may be different with the product, please contact us for quotation.
