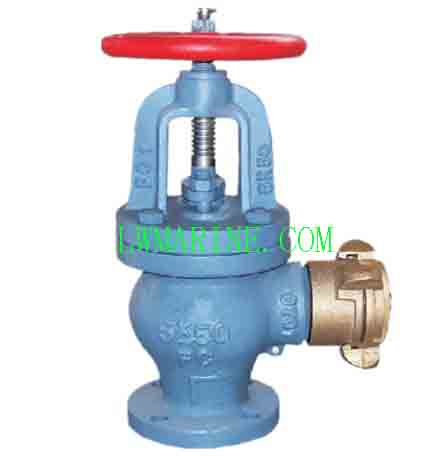

Marine Cast Iron Hose Valve JIS F7333B

Marine Cast Iron Hose Valve JIS F7333B

Certificate: CCS, GL, BV certificate, etc.
Delivery Time: 15 days
Place of Origin: China
Packing Details: Export standard packaging.

Category:

JIS F7333B Marine Cast Iron Hose Valve – Reliable Fluid Control for Marine & Offshore Applications

Product Overview
The JIS F7333B Marine Cast Iron Hose Valve is a robust and versatile valve designed for shipbuilding, vessel repair, and offshore platform operations. Engineered to meet rigorous JIS standards with JIS B2220 flange compatibility, this valve is available in both 5K and 10K pressure ratings, making it suitable for a wide range of marine hose connection applications. Featuring a durable cast iron body with corrosion-resistant SUS stainless steel or bronze internals, it ensures reliable performance in seawater, fuel, and other demanding marine environments.

Key Features & Benefits

  • ✅ JIS F7333B Certified – Complies with Japanese marine valve standards

  • ✅ Dual Pressure Ratings – Available in 5K and 10K versions for flexible applications

  • ✅ Corrosion-Resistant Internals – SUS stainless steel or bronze seat, disc, and stem options

  • ✅ JIS B2220 Flange Compatibility – Easy integration with standard marine piping systems

  • ✅ Hose Connection Ready – Ideal for temporary connections and fluid transfer operations

  • ✅ Robust Cast Iron Construction – Durable and cost-effective for marine environments

  • ✅ OEM/ODM Services – Customization available to meet specific requirements

Material Composition

Component Material Options Advantage
Body Cast Iron High strength and excellent durability
Seat SUS Stainless Steel/Bronze Superior corrosion resistance and longevity
Disc SUS Stainless Steel/Bronze Reliable sealing and wear resistance
Stem SUS Stainless Steel/Bronze Smooth operation and corrosion protection

Technical Specifications

  • Nominal Diameter: DN50-DN65

  • Pressure Ratings: 5K / 10K

  • Standards: JIS F7333B, JIS B2220 Flange

  • Media: Sea Water, Fuel, Oil, Marine Fluids

  • Applications: Shipbuilding, Ship Repair, Offshore Platforms, Hose Connections

Dimension Table

IMPA Code Size Pressure L D C n-d
751735 50 5K 155 130 105 4×φ15
– 65 5K 180 155 130 4×φ15
751736 50 10K 170 155 120 4×φ19
751737 65 10K 185 175 140 4×φ19

The description/sizes may be different with goods, please check with us when order.
