Marine Captain's Chair

Marine Captain’s Chair

Certificate: CCS, GL, BV or other.
Delivery Time: 15-30days
Place of Origin: China
Packing Details: Standard Packing

Category:

Marine Captain’s Chair – Customizable, Ergonomic & High-Performance Seating Solution

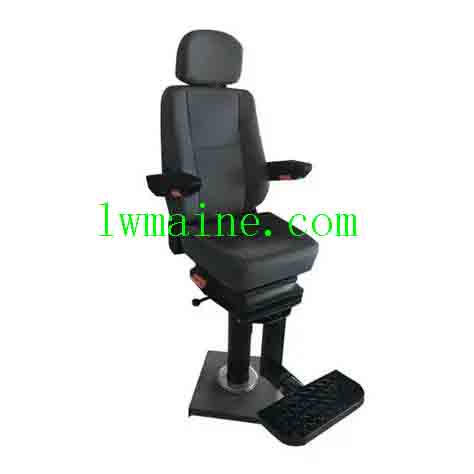

Marine Captain’s Chair

Elevate your maritime command with our premium Marine Captain’s Chair, designed for superior comfort, durability, and functionality. This chair is meticulously crafted to meet the rigorous demands of marine environments while offering extensive customization options to suit your specific needs.

Key Features & Customization Options:

  • Standard Rail Length: The chair comes with a standard rail length of 1.2 meters, which can be customized according to your vessel’s layout and requirements.
  • Seat Surface Customization: Choose from a variety of high-quality materials for the seat surface, including black PU imitation leather, genuine leather, or fabric, all customizable to match your preferred color and style.
  • Ergonomic Design: Engineered for maximum comfort during long voyages, featuring an ergonomic design that supports proper posture and reduces fatigue.

Functionality Highlights:

  1. High-Strength Double-Slide Rail: The seat can move smoothly along a high-strength double-slide rail, ensuring stability and ease of movement.
  2. Adjustable Backrest & Headrest: The backrest and headrest are adjustable, allowing you to find the perfect position for relaxation or focused navigation.
  3. Seat Height & Angle Adjustment: The seat height and angle can be easily adjusted to accommodate different users and seating preferences.
  4. 360-Degree Rotation & Multi-Point Positioning: The seat can rotate a full 360 degrees and be locked in place at multiple points, providing flexibility and convenience.
  5. Adjustable Foot Pedal: The foot pedal is height-adjustable and can be folded away when not in use, saving space and enhancing safety.
  6. Vertically Lifting Column: The column can be vertically lifted to adjust the seat height, accommodating different users and operational needs.

Material Specifications:

  1. Slide Rail & Positioning Base: Made of high-strength aluminum alloy with stainless steel decorative mosaics for added durability and aesthetics.
  2. Lifting Column: Constructed from a steel and stainless steel synthesis for robust support and longevity.
  3. Steel Structure: The seat lifting, tilting, and back angle adjustment mechanisms are built with a steel structure for reliability and strength.
  4. Seat Back & Cushion: Features a steel inner core and PU cold foam forming disposable sponge synthesis,外包 (outsourced) with leather or cloth for comfort and durability.
  5. Pedal Steel Plate: Combines a steel inner core with environmentally friendly rubber for a non-slip and comfortable footrest.
  6. Pneumatic Lifting Core: Utilizes German-imported Stabilus pneumatic bars for smooth and precise height adjustments.

Function Data:

  • Seat Movement: The upper part of the seat can move back and forth by 120mm, with a height adjustment range of 60mm and a seat inclination angle range of ±12°.
  • Backrest & Headrest Adjustment: The backrest angle is adjustable from 85° to 150°, with the headrest adjustable up and down by 50mm. The handrest features multi-point positioning control.
  • Pneumatic Lifting Range: The seat’s pneumatic lifting regulating range is 0-150mm, providing ample height adjustment options.
  • 360-Degree Rotation & Locking: The seat can rotate a full 360 degrees and be locked in place at 4-point positions for stability.
  • Rail Slide & Dimensions: The seat rail slides within a 0-6000mm range, with a rail width of 500mm and depth of 28mm.
  • Pedal Adjustment: The seat pedal can rotate 90° and regress, with an upper and lower position adjusting range of 0-50mm.
  • Torsion Resistance: The seat can bear more than 150FT.LB torsion, reaching the AD grade standard for marine seating.

Frequently Asked Questions (FAQs):

Q1: Can I customize the color and material of the Marine Captain’s Chair?
A1: Yes, absolutely! You can choose from a variety of high-quality materials, including black PU imitation leather, genuine leather, or fabric, and customize the color to match your vessel’s interior design.

Q2: Is the Marine Captain’s Chair suitable for all types of boats?
A2: Our Marine Captain’s Chair is designed to be versatile and can be customized to fit various boat types and layouts. Its robust construction makes it suitable for both commercial and recreational vessels.

Q3: How does the pneumatic lifting system work?
A3: The pneumatic lifting system utilizes German-imported Stabilus pneumatic bars, allowing for smooth and precise height adjustments with minimal effort. Simply press the control lever to raise or lower the seat to your desired height.

Q4: Can the seat be locked in place after rotation?
A4: Yes, the seat can rotate a full 360 degrees and be locked in place at 4-point positions, ensuring stability and safety during operation.

Q5: What is the torsion resistance of the Marine Captain’s Chair?
A5: The seat is designed to bear more than 150FT.LB torsion, reaching the AD grade standard for marine seating, ensuring durability and reliability even under heavy use.
