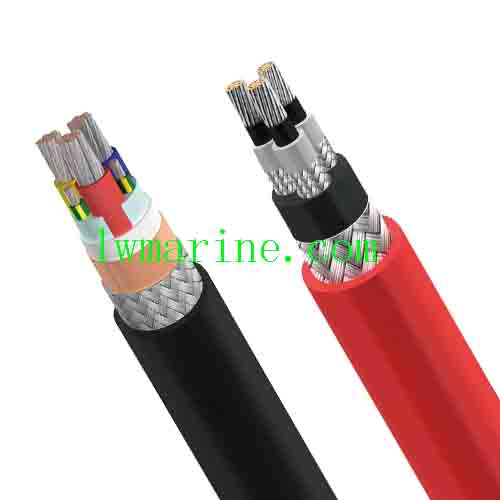

Marine Cable
Our marine cable is built to withstand the harshest conditions with:
✔ Tinned Copper Conductors – Superior corrosion resistance
✔ EPR Insulation (JIS C 3410) – High-temperature endurance
✔ Galvanized Steel Armor – Maximum mechanical protection
✔ PVC Outer Sheath – Oil, chemical & UV resistant
Key Performance Features:
• Flame Retardant – Meets strict marine fire safety standards
• -40°C to +90°C operational range
• Drilling mud & petrochemical resistant
• Sunlight & saltwater protected
Specification:
| Conductor | (FA-) SPYCY， SPYCBY | Thick.of insulation | Dia.over bedding | Dia.of armor | ||||
| Size | Construction | O.D | Thick.of Sheath | Nominal overall dia | Cable weight (Approx.) | |||
| mm² | No./mm | mm | mm | mm | Kg/Km | mm | mm | mm |
| 1.5 | 7/0.53 | 1.59 | 0.8 | 9 | 135 | 1 | 5.9 | 0.3 |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 9.4 | 150 | 1 | 6.3 | 0.3 |
| 4 | 7/0.85 | 2.55 | 0.8 | 10 | 175 | 1 | 6.9 | 0.3 |
| 6 | 7/1.04 | 3.12 | 0.8 | 10.5 | 205 | 1 | 7.4 | 0.3 |
| 10 | 7/1.35 | 4.05 | 0.8 | 11.7 | 270 | 1 | 8.6 | 0.3 |
| 16 | 7/1.70 | 5.1 | 0.9 | 12.9 | 350 | 1 | 9.6 | 0.3 |
| 25 | 7/2.14 | 6.42 | 0.9 | 14.8 | 485 | 1.2 | 11.5 | 0.3 |
| 35 | 7/2.52 | 7.56 | 1 | 16.2 | 605 | 1.2 | 12.7 | 0.3 |
| 50 | 19/1.78 | 8.9 | 1 | 18.1 | 775 | 1.4 | 14.6 | 0.3 |
| 70 | 19/2.14 | 10.7 | 1.1 | 20.9 | 1060 | 1.6 | 17.2 | 0.3 |
| 95 | 19/2.52 | 12.6 | 1.1 | 23 | 1360 | 1.6 | 19.3 | 0.3 |
| 120 | 37/2.03 | 14.2 | 1.2 | 24.8 | 1650 | 1.6 | 20.9 | 0.3 |
| 150 | 37/2.25 | 15.8 | 1.2 | 27 | 1980 | 1.8 | 23.1 | 0.3 |
| 185 | 37/2.52 | 17.6 | 1.3 | 29.6 | 2420 | 2 | 25.5 | 0.3 |
| 240 | 61/2.25 | 20.3 | 1.4 | 33.1 | 3110 | 2.2 | 28.8 | 0.3 |
| 300 | 61/2.52 | 22..7 | 1.4 | 36.6 | 3910 | 2.4 | 31.8 | 0.4 |
The description/sizes may be different with goods, please check with us when order.
