Marine bulkhead drive device CGC Type
1. General
The CGC type marine bulkhead drive device is suitable to vessels in flammable and explosive place carrying chemicals, liquefied gas, raw petroleum and commodity petroleum. Through this device, the marine motor installed in the engine room drives the mechanical equipment (e.g. Liquid pump, ballast pump) in flammable and explosive place.
The CGC type bulkhead drive device meets the specification requirements of the classification society and features in simple structure and reliable drive.
2. Main technical parameter
| Type | Cooling Water (m³/h) | Allowable Torque (N.m) | Allowable Revolution (r/min) | Weight (kg) |
|---|---|---|---|---|
| CGC-30/S GB/T25014-2010 | 1 | 72 | 3000 | 73 |
| CGC-40/S GB/T25014-2010 | 1 | 165 | 3000 | 80 |
| CGC-50/S GB/T25014-2010 | 1 | 360 | 3000 | 92 |
| CGC-60/S GB/T25014-2010 | 1 | 600 | 3000 | 98 |
| CGC-70/S GB/T25014-2010 | 1 | 700 | 3000 | 110 |
| CGC-80/S GB/T25014-2010 | 1.5 | 850 | 3000 | 132 |
| CGC-90/S GB/T25014-2010 | 1.5 | 900 | 3000 | 168 |
| CGC-100/S GB/T25014-2010 | 1.5 | 1000 | 3000 | 190 |

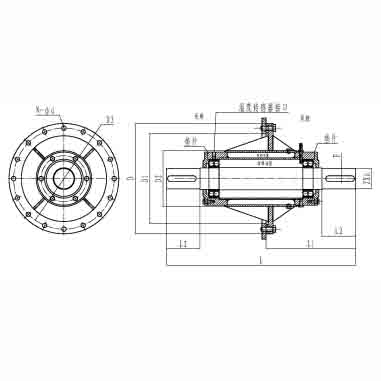

3. Installation and external dimensions
| Type | D | D1 | D2 | 2×d | L | L1 | L2 | F |
|---|---|---|---|---|---|---|---|---|
| CGC-30/S GB/T25014-2010 | 420 | 340 | 219 | Φ30 | 580 | 240 | 58 | 10 |
| CGC-40/S GB/T25014-2010 | 420 | 340 | 219 | Φ40 | 640 | 270 | 82 | 12 |
| CGC-50/S GB/T25014-2010 | 420 | 340 | 219 | Φ50 | 680 | 290 | 82 | 16 |
| CGC-60/S GB/T25014-2010 | 420 | 340 | 245 | Φ60 | 720 | 310 | 105 | 18 |
| CGC-70/S GB/T25014-2010 | 420 | 340 | 245 | Φ70 | 760 | 340 | 105 | 20 |
| CGC-80/S GB/T25014-2010 | 420 | 340 | 245 | Φ80 | 800 | 350 | 130 | 22 |
| CGC-90/S GB/T25014-2010 | 420 | 340 | 245 | Φ90 | 880 | 370 | 130 | 25 |
| CGC-100/S GB/T25014-2010 | 540 | 440 | 273 | Φ100 | 930 | 440 | 165 | 28 |
Note: The description may be different with the product, please contact us for quotation.
