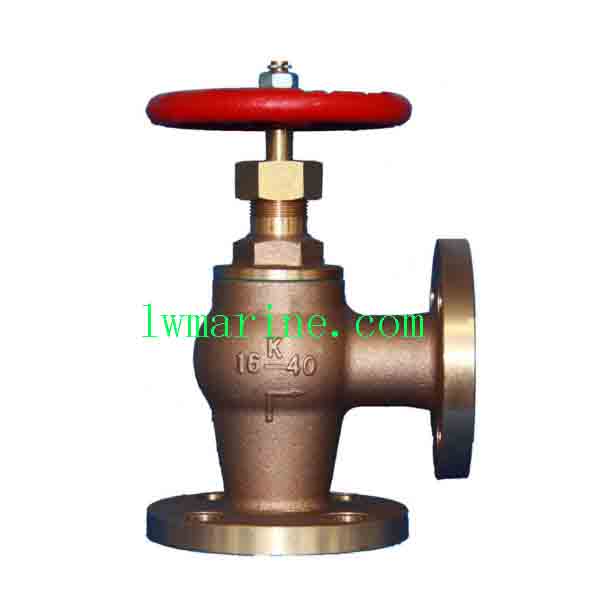

The Marine Bronze SDNR Valve (Stop Check Non-Return Valve) is a precision-engineered fluid control solution designed for the demanding environments of the maritime and offshore industries. Expertly manufactured to strict Japanese Industrial Standard (JIS) F7413, this high-performance valve integrates the functionality of both a manual stop valve and an automatic check valve into a single, compact, inline unit.

Crafted from high-grade marine bronze, this valve offers exceptional corrosion resistance against seawater, fuel oil, and lubricating systems. It is designed to provide reliable backflow prevention while allowing operators to manually control or stop flow when necessary. Featuring flanges that conform to JIS B2220, this valve ensures seamless integration into existing Japanese-standard piping systems aboard vessels, shipyards, and offshore platforms.

As a trusted component for critical marine fluid control, our SDNR valves are manufactured to meet the rigorous testing and quality standards required for certification by major classification societies worldwide.

Key Features & Benefits

• Dual-Function Design (2-in-1): Combines the duties of a manual stop valve and an automatic check valve, saving space and reducing the need for additional fittings in the pipeline.

• JIS F7413 Compliance: Manufactured precisely to Japanese Industrial Standards, guaranteeing dimensional accuracy and interchangeability for marine applications.

• Superior Marine-Grade Bronze: Constructed from corrosion-resistant bronze (CAC401/BC6), ideal for handling seawater, fresh water, oil, and air in harsh marine atmospheres.

• Multiple Pressure Ratings: Available in both 5K (50 psi) and 16K (160 psi) pressure classes to suit different system requirements.

• JIS B2220 Flange Compatibility: Features standard flange dimensions (Bolt hole diameter, PCD) for easy installation and retrofitting in ships built to Japanese standards.

• Reliable Non-Return Protection: The integrated check mechanism automatically prevents dangerous backflow, protecting pumps and machinery while the manual override allows for positive isolation.

• Certification Ready: Designed and tested to meet the approval standards of major classification societies, including ABS, BV, CCS, LR, DNV, and RINA.

---

Technical Specifications

Material Composition
All components are selected for maximum durability and corrosion resistance in marine environments:

• Body & Bonnet: Marine Bronze

• Disc: Bronze / Brass

• Stem, Disc Nut, Packing Gland: Brass

• Handwheel: Cast Iron

• Packing: Non-Asbestos (Environmentally safe)

• Bonnet Nut, Split Pin, Indicator Plate: Bronze / Brass

---

Dimension Table (JIS F7413 16K Standard)

Our SDNR valves are available in standard IMPA codes for easy ordering and inventory management.

---

Frequently Asked Questions (FAQ)

1. What does “SDNR” stand for in valve terminology?
SDNR stands for Stop, Check, Non-Return. It describes a valve that combines three functions:

• Stop: It can act as a manual isolation valve to stop flow.

• Check: It automatically prevents reverse flow.

• Non-Return: It serves as a backflow preventer.
  This design is crucial in marine piping systems to protect equipment like pumps from damage caused by backflow while still allowing the operator to manually shut off the line when needed.

2. What is the difference between a 5K and a 16K rated valve?
The “K” rating refers to the pressure class under Japanese Industrial Standards (JIS).

• 5K valves are rated for a maximum working pressure of approximately 5 kgf/cm² (around 50 psi / 0.5 MPa). They are suitable for low-pressure applications like gravity tanks or low-pressure return lines.

• 16K valves are rated for a maximum working pressure of approximately 16 kgf/cm² (around 160 psi / 1.6 MPa). They are used in higher-pressure systems such as engine fuel lines, cooling water circuits, and hydraulic systems. The 16K valve also features a thicker wall and larger flange dimensions to handle the increased stress.

3. Why is bronze the preferred material for marine valves?
Marine bronze (such as CAC401 or BC6) is the preferred material for seawater applications because of its excellent corrosion resistance. Unlike steel, bronze does not rust when exposed to oxygen and saltwater. It also resists dezincification (a type of corrosion that affects brass) and biofouling. This ensures a long service life, tight sealing, and reliable operation in the harsh, corrosive environment found aboard ships and offshore platforms.

4. Can these valves be used for fuel oil systems as well as seawater?
Yes, the Marine Bronze SDNR Valve is suitable for a wide range of media commonly found on ships. The bronze construction and non-asbestos packing make it compatible with sea water, fresh water, fuel oil, and lubricating oil. However, it is always best practice to confirm the specific chemical compatibility based on the exact temperature and pressure of your fuel oil system.

5. Do you provide classification society certification for these valves?
Yes. We understand that marine equipment often requires third-party verification. We can supply these JIS F7413 valves with inspection certificates and material test reports that meet the requirements of major classification societies, including ABS, BV, CCS, DNV, LR, and RINA. Please specify your certification needs (e.g., ABS Type Approval, DNV certificate) when requesting a quote.

Attention please: The description was copied from different cooperating manufacturers. The description may be different with the goods, please check with us when order.
