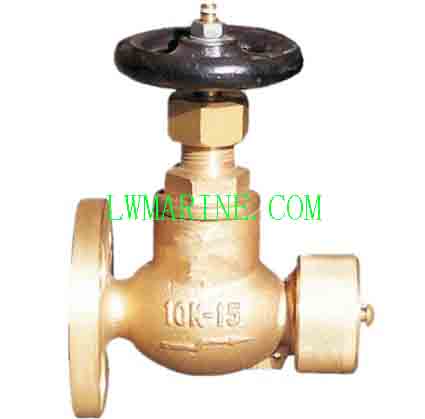

JIS F7334A Marine Bronze Hose Valve | JIS B2220 Standard 5K/10K Bronze Shipboard Hose Connection Valve
Product Overview
The JIS F7334A Marine Bronze Hose Valve is a specialized marine-grade valve designed for safe and reliable hose connections in shipbuilding, vessel repair, and offshore platform applications. Manufactured from premium bronze components in compliance with JIS standards, this hose valve ensures exceptional corrosion resistance and durability in demanding marine environments. Featuring JIS B2220 standard flange dimensions, it guarantees perfect compatibility with shipboard piping systems while providing versatile service for water, fuel, and air applications.
Key Features & Benefits
-
JIS F7334A Compliance: Manufactured to Japanese Industrial Standards for guaranteed marine compatibility and performance
-
Dual Pressure Ratings: Available in both 5K and 10K configurations to meet various system requirements
-
Premium Bronze Construction: Superior corrosion resistance for seawater, fuel, and chemical applications
-
Complete Material Customization: Body materials, packing, and gaskets can be matched to specific working conditions
-
Multiple Size Options: DN15 to DN65 sizes accommodate various flow requirements and hose connections
-
OEM/ODM Services: Custom manufacturing available to meet specific project requirements and special requests
-
Rigorous Quality Control: Ensures reliability and longevity in the most demanding marine environments
-
Universal Application: Suitable for various pressure, temperature, and medium conditions aboard vessels and platforms
Material Specification
-
Body: Bronze
-
Disc: Bronze
-
Stem: Brass
-
Coupling: Bronze
Technical Specifications
-
Standard: JIS F7334A
-
Flange Standard: JIS B2220
-
Nominal Diameter: DN15-DN65
-
Pressure Ratings: 5K / 10K
-
Type: Hose Connection Valve
-
Operation: Manual
Main Dimensions (mm) – 5K Series
| IMPA Code | Size | L | L1 | D | C | No. | h | t | H | D2 |
|---|---|---|---|---|---|---|---|---|---|---|
| 751701 | 15 | 73 | 50 | 80 | 60 | 4 | 12 | 9 | 130 | 80 |
| 751703 | 25 | 78 | 60 | 85 | 75 | 4 | 12 | 10 | 160 | 125 |
| – | 40 | 128 | 80 | 120 | 95 | 4 | 15 | 12 | 190 | 140 |
| – | 50 | 160 | 105 | 130 | 105 | 4 | 15 | 14 | 255 | 160 |
Main Dimensions (mm) – 10K Series
| IMPA Code | Size | L | L1 | D | C | No. | h | t | H | D2 |
|---|---|---|---|---|---|---|---|---|---|---|
| 751702 | 15 | 73 | 55 | 95 | 70 | 4 | 15 | 12 | 130 | 80 |
| 751704 | 25 | 73 | 65 | 125 | 90 | 4 | 19 | 14 | 160 | 125 |
| – | 40 | 133 | 90 | 140 | 105 | 4 | 19 | 16 | 190 | 140 |
| – | 50 | 165 | 110 | 155 | 120 | 4 | 19 | 16 | 270 | 160 |
| – | 65 | 200 | 135 | 175 | 140 | 4 | 19 | 19 | 295 | 200 |
The description/sizes may be different with goods, please check with us when order.
