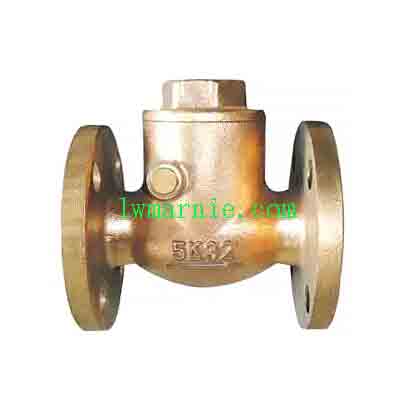

JIS F7417 Marine Bronze Check Valve – High-Pressure 16K Non-Return Valve for Marine Applications
Product Overview
The JIS F7417 Marine Bronze Check Valve is a premium-quality non-return valve specifically engineered for high-pressure marine applications. Manufactured in full compliance with JIS B2220 flange standards, this robust check valve prevents backflow in critical fuel oil and lubrication piping systems. Featuring all-bronze construction and 16K pressure rating, it delivers exceptional reliability and corrosion resistance in demanding shipboard environments, offshore platforms, and vessel operations.
Key Features & Benefits
✔ All-Bronze Construction
-
Body, Disc & Stem: High-grade bronze for superior corrosion resistance
-
Marine-Grade Materials: Excellent performance in saltwater environments
-
Durable Design: Long service life with minimal maintenance requirements
✔ High-Pressure Performance
-
Pressure Rating: 16K for demanding marine applications
-
Size Range: DN15 to DN40 comprehensive coverage
-
JIS B2220 Flange Compliance: Perfect integration with marine piping systems
✔ Reliable Non-Return Operation
-
Prevents backflow in fuel oil and lubrication systems
-
Ensures unidirectional flow in critical piping networks
-
Automatic operation without external power requirements
✔ Certified Quality Assurance
-
Manufactured to JIS quality standards
-
10+ years of marine valve manufacturing expertise
-
OEM and custom manufacturing services available
Technical Specifications: JIS F7417 16K Check Valve Series
| IMPA Code | Model | L (mm) | L1 (mm) | D (mm) | C (mm) | Bolt Holes | h (mm) | t (mm) | H (mm) | H1 (mm) | D2 (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 751361 | 7417 16K15 | 110 | 70 | 95 | 70 | 4 | 15 | 12 | 66 | 56 | 55 |
| 751362 | 7417 16K20 | 120 | 75 | 100 | 75 | 4 | 15 | 14 | 71 | 59 | 55 |
| 751363 | 7417 16K25 | 130 | 85 | 125 | 90 | 4 | 19 | 14 | 81 | 67 | 60 |
| 751364 | 7417 16K32 | 160 | 95 | 135 | 100 | 4 | 19 | 16 | 83 | 65 | 70 |
| 751365 | 7417 16K40 | 180 | 100 | 140 | 105 | 4 | 19 | 16 | 91 | 69 | 80 |
The description/sizes may be different with goods, please check with us when order.
