JIS F7352 Marine Bronze Angle SDNR Valve | Screw-Down Non-Return Valves for Marine Fuel Systems
Product Overview

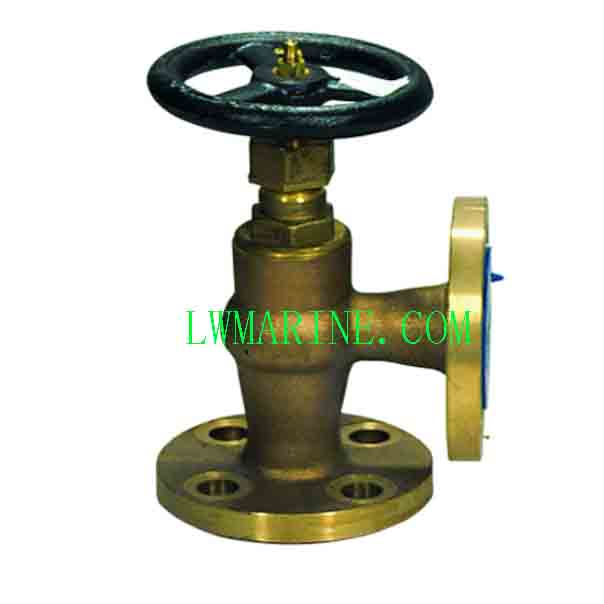

The JIS F7352 Marine Bronze Angle SDNR Valve is a precision-engineered screw-down non-return valve designed for critical applications in marine fuel oil and lubrication piping systems. Manufactured to Japanese Industrial Standard JIS F7352 with flange dimensions conforming to JIS B2220, this angle pattern valve combines a bronze body with brass stem for optimal corrosion resistance and reliable performance in demanding marine environments. Ideal for preventing backflow while allowing manual flow control in shipboard systems.
Key Features & Benefits
-
✅ JIS F7352 & JIS B2220 Compliant: Full compliance with Japanese marine standards
-
✅ Bronze Body with Brass Stem: Excellent corrosion resistance for seawater applications
-
✅ Screw-Down Non-Return Design: Prevents backflow while allowing manual control
-
✅ 5K Pressure Rating: Suitable for standard pressure marine systems
-
✅ Angle Pattern Configuration: Saves space and reduces piping complexity
-
✅ OEM/ODM Services: Custom branding and specification modifications available
-
✅ Pneumatic Actuation Ready: Compatible with automated control systems
Technical Specifications
-
Design Standard: JIS F7352
-
Flange Standard: JIS B2220
-
Body Material: Bronze
-
Disc: Bronze (excellent sealing properties)
-
Stem: Brass (good machinability and corrosion resistance)
-
Pressure Rating: 5K
-
Nominal Diameter: DN15-DN65
Dimensions & Specifications
| IMPA Code | Model | L | D | C | No. | h | t | H | D2 |
|---|---|---|---|---|---|---|---|---|---|
| 751051 | 7352 5K15 | 55 | 80 | 60 | 4 | 12 | 9 | 120 | 80 |
| 751052 | 7352 5K20 | 60 | 85 | 65 | 4 | 12 | 10 | 130 | 100 |
| 751053 | 7352 5K25 | 65 | 95 | 75 | 4 | 12 | 10 | 145 | 125 |
| 751054 | 7352 5K32 | 80 | 115 | 90 | 4 | 15 | 12 | 150 | 125 |
| 751055 | 7352 5K40 | 85 | 120 | 95 | 4 | 15 | 12 | 165 | 140 |
| – | 7352 5K50 | 100 | 130 | 105 | 4 | 15 | 14 | 200 | 140 |
| – | 7352 5K65 | 115 | 155 | 130 | 4 | 15 | 14 | 220 | 160 |
The description/sizes may be different with goods, please check with us when order.
