JIS F7334B Marine Bronze Angle Hose Valve – 5K/10K Bronze 90° Deck Connection Valve
Overview

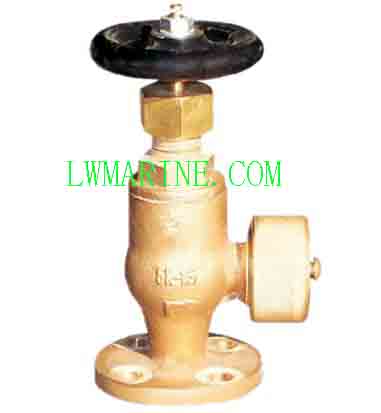

Our JIS F7334B Marine Bronze Angle Hose Valve is a specialized 90-degree angle pattern hose connection valve designed for marine and offshore applications. Manufactured to exact Japanese Industrial Standard F7334B specifications, this marine-grade bronze valve is available in both 5K and 10K pressure ratings, providing reliable service in various shipboard systems. Featuring compliance with JIS B2220 steel pipe flange dimensions, it ensures perfect integration into marine piping networks for deck connections, utility services, and emergency applications.
Key Features & Benefits
-
JIS F7334B Standard Compliance: Precision-engineered to Japanese Industrial Standard specifications
-
Dual Pressure Ratings: Available in 5K (50 psi) and 10K (100 psi) pressure classes
-
90-Degree Angle Design: Space-saving configuration ideal for deck mounting and hose connections
-
Marine-Grade Bronze Construction: Superior corrosion resistance for seawater and marine environments
-
JIS B2220 Flange Compatibility: Standard flange dimensions ensure easy installation and maintenance
-
Hose Connection Ready: Perfect for deck wash, tank cleaning, and emergency connection points
-
Material Flexibility: Custom material configurations available for specific working conditions
-
Full Certification Available: Manufactured to meet ABS, BV, CCS, LR, DNV, RINA requirements
Technical Specifications
-
Design Standard: JIS F7334B
-
Flange Standard: JIS B2220
-
Pressure Ratings: 5K (50 psi) and 10K (100 psi)
-
Temperature Range: -20°C to 200°C
-
Body Material: Marine Bronze (CAC401/BC6)
-
Disc Material: Bronze
-
Stem Material: Brass
-
Nominal Diameter: DN15 to DN65 (½” to 2½”)
-
Operation: Manual Handwheel Operation
-
Media: Sea Water, Fresh Water, Oil, Air, Deck Wash Water
Dimension Table (JIS F7334B Standard)
5K Series:
| IMPA Code | Size | L | L1 | D | C | Bolt Holes | h | t | H | D2 |
|---|---|---|---|---|---|---|---|---|---|---|
| 751706 | 15 | 68 | 55 | 80 | 60 | 4 | 12 | 9 | 120 | 80 |
| 751708 | 25 | 78 | 65 | 95 | 75 | 4 | 12 | 10 | 145 | 125 |
| – | 40 | 124 | 85 | 120 | 95 | 4 | 15 | 12 | 165 | 140 |
| – | 50 | 155 | 100 | 130 | 105 | 4 | 15 | 14 | 255 | 160 |
10K Series:
| IMPA Code | Size | L | L1 | D | C | Bolt Holes | h | t | H | D2 |
|---|---|---|---|---|---|---|---|---|---|---|
| 751707 | 15 | 73 | 70 | 95 | 70 | 4 | 15 | 12 | 120 | 80 |
| 751709 | 25 | 83 | 85 | 125 | 90 | 4 | 19 | 14 | 145 | 125 |
| – | 40 | 124 | 100 | 140 | 105 | 4 | 19 | 16 | 165 | 140 |
| – | 50 | 160 | 120 | 155 | 120 | 4 | 19 | 16 | 270 | 160 |
| – | 65 | 180 | 130 | 175 | 140 | 4 | 19 | 19 | 295 | 200 |
The description/sizes may be different with goods, please check with us when order.
