Marine Bilge Water Separator

1 m³/h Marine Bilge Water Separator | IMO MEPC.107(49) Certified | 15ppm Oil in Water | IACS Type Approved (BV, ABS, CCS, DNV, LR, NK, RINA)

Product Overview

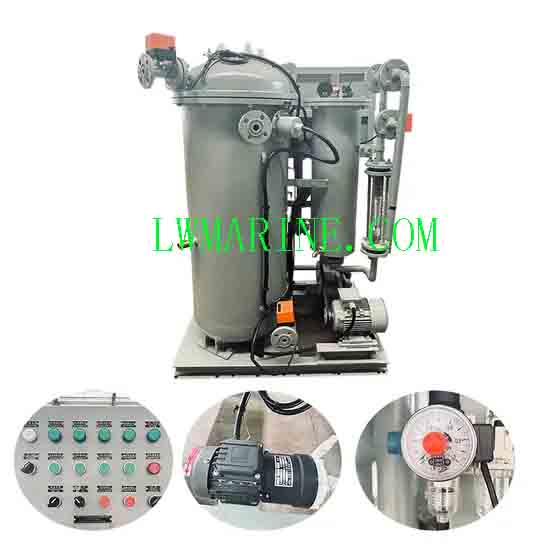

Meet international compliance with our high-efficiency 1 m³/h Marine Bilge Water Separator. This CYSC107-type 15ppm oily water separator is engineered to IMO MEPC.107(49) standards, providing reliable and automatic treatment of bilge water from vessels, oil depots, ports, and industrial facilities. Ensure environmental protection and regulatory adherence with our compact, robust, and fully-certifiable system.

Key Features & Benefits

IMO MEPC.107(49) Certified Design: Developed in full compliance with the latest international maritime environmental regulations.
Consistent High Performance: Guarantees treated water output with less than 15 ppm oil content, meeting strict discharge standards.
Robust Multi-Stage Separation: Integrates primary separation, secondary fine filtration, and monitoring in one compact unit.
Flexible Control Options: Features both automatic and manual oil discharge control for adaptable operation.
Built-In Electric Heating: Includes 2kW heater for optimized viscosity control to maintain efficiency in cold conditions.
IACS Type Approval Available: Certifiable by all major classification societies, including BV, CCS, DNV, ABS, LR, NK, RINA, and more.

Technical Specifications

Parameter	Specification
Model	CYSC107-1
Treatment Capacity	1 m³/h
Discharge Standard	<15 ppm
Pump Type	Plunger Pump
Motor Power	0.55 kW
Pump Head	5 m
Power Supply	AC380V, 50Hz, 3Φ
Control Mode	Automatic & Manual
Heater	Electric, 2 kW
Certifications	IMO MEPC.107(49)
