Marine Azimuth Thrusters – High-Efficiency & Reliable Propulsion System
Product Overview

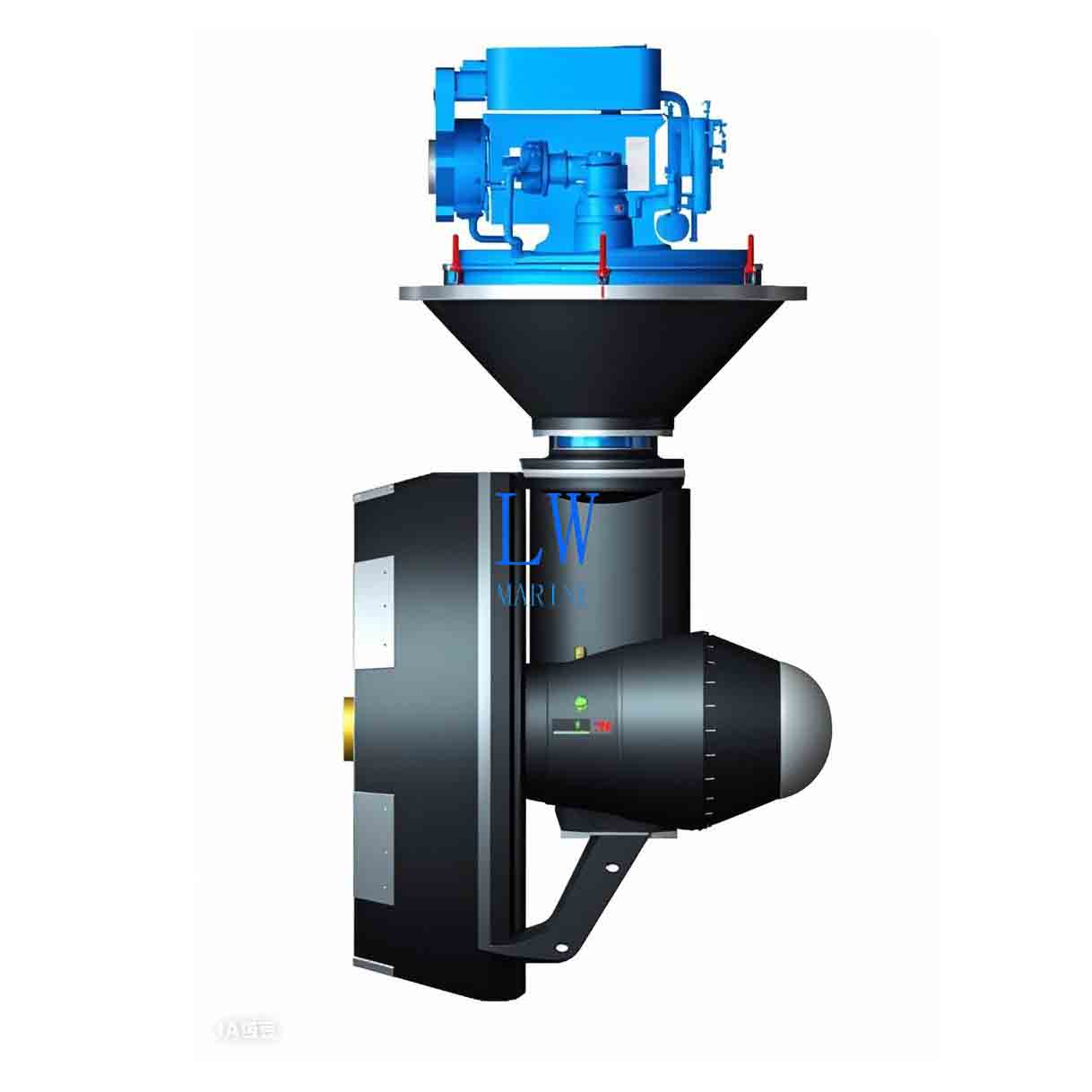

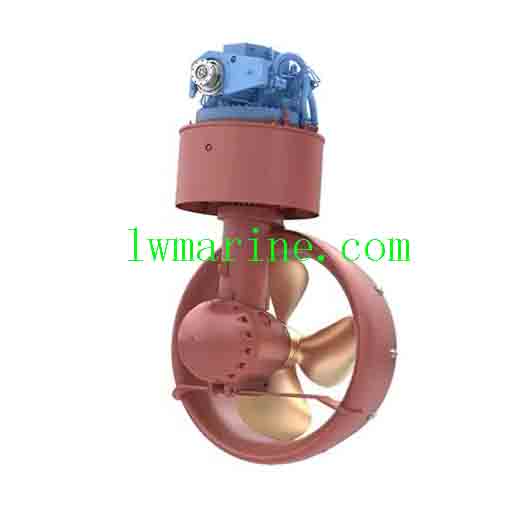

Our Marine Azimuth Thrusters are engineered for maximum reliability and performance, offering 360° steering capability for superior maneuverability. Suitable for tugboats, workboats, ferries, and offshore vessels, they are available in Z-drive or L-drive configurations, powered by electric or hydraulic motors, and certified by major classification societies (ABS, BV, DNV, CCS, etc.).
Key Features & Benefits
✔ High Thrust Efficiency – Propeller-nozzle combination increases thrust while reducing RPM
✔ Optimized Steering – Low-torque rudder design minimizes vibration & energy loss
✔ Durable Construction – High-strength gears, bearings, and seals for long service life
✔ Flexible Drive Options – Electric or hydraulic motor steering
✔ Multiple Propeller Configurations – FPP with nozzle / CPP with nozzle / Nozzle-free
✔ Retractable Option – Adjustable depth for shallow water or maintenance
Technical Specifications
| Parameter | Specification |
|---|---|
| Drive Types | Z-drive / L-drive |
| Power Source | Electric motor / Hydraulic motor |
| Propeller Options | FPP (nozzle) / CPP (nozzle) / Nozzle-free |
| Steering Mechanism | Electric or hydraulic actuation |
| Certifications | ABS, BV, DNV, CCS, NK, KR, GL, RINA |
| Retractable Option | Available upon request |
Parameters:
| Type | Normal Propeller Ф(mm) | Input power(kW) | Normal Input speed(rpm) | Max. bollard pull (T) |
| MRP50 | 700/800 | 90-147 | 1500-2500 | 1.8 |
| MRP90 | 800/900 | 164-240 | 1500-2350 | 2.8 |
| MRP100 | 1000/1100/1200 | 250-358 | 1200-2350 | 6.2 |
| MRP110 | 1300/1400 | 372-480 | 1200-2350 | 8.1 |
| MRP130 | 1500/1600 | 522-675 | 830-1800 | 11.5 |
| MRP165 | 1700/1800 | 700-970 | 830-1800 | 16.5 |
| MRP185 | 2000/2100 | 1030-1380 | 830-1500 | 23.1 |
| MRP200 | 2200/2300 | 1425-1780 | 750-1500 | 28.8 |
| MRP225 | 2500/2600 | 1920-2250 | 550-1200 | 36.4 |
| MRP245 | 2700 | 2300-2600 | 550-1200 | 40.1 |
| MRP300 | 3300/3500 | 2750-3400 | 550-1200 | 55.1 |
The description/sizes may be different with goods, please check with us when order.
