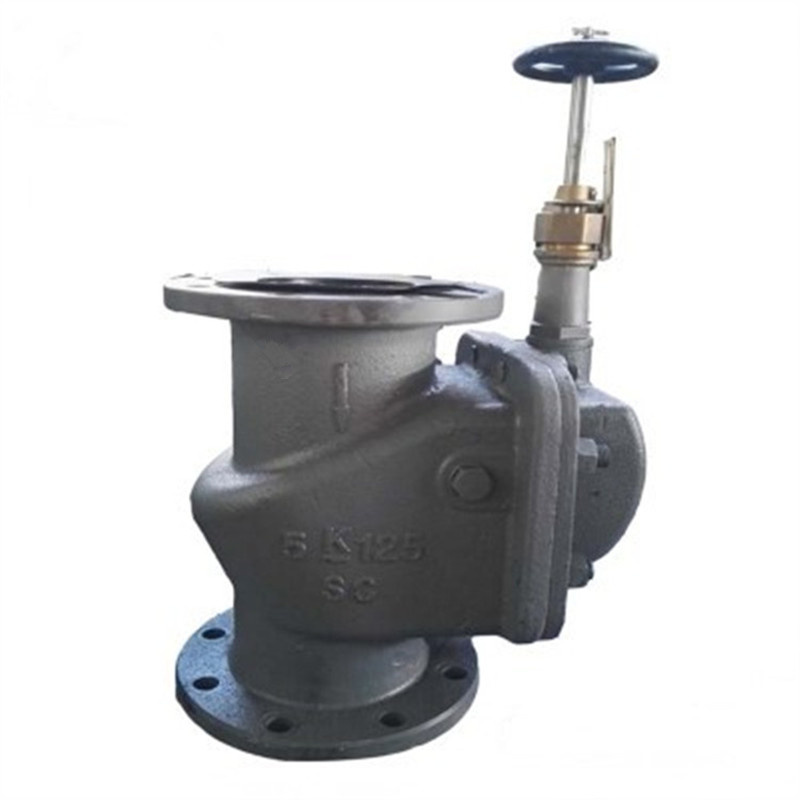

JIS F3060R Marine Angle Storm Valve
Product Overview
The JIS F3060R Marine Angle Storm Valve is a top – tier safety device meticulously crafted to deliver exceptional performance in the most challenging marine settings. Specifically designed for emergency shut – off operations, this heavy – duty angle valve adheres strictly to the rigorous JIS B2220 flange standards. It is built to endure the harsh conditions prevalent in shipbuilding, vessel repair, and offshore platform operations. With its solid construction and reliable functionality, it serves as an indispensable safety component for storm water management, emergency drainage, and critical fluid control systems on marine vessels.
Key Features & Advantages
Robust and Durable Material Construction
- Body: Made from high – strength cast steel, the valve body offers maximum durability and excellent pressure resistance, ensuring it can withstand the high – pressure conditions encountered in marine environments.
- Seat: The premium rubber seating provides a bubble – tight seal, preventing any leakage. Additionally, it is corrosion – resistant, which is crucial for long – term use in saltwater environments.
- Disc: The bronze componentry of the disc is highly compatible with the marine environment, resisting corrosion and ensuring smooth operation over time.
- Stem: Constructed from stainless steel, the stem enables smooth operation and has a long service life, reducing the need for frequent maintenance.
Strictly Certified Marine Compliance
- IACS Certification: It has received approvals from leading classification societies such as BV, ABS, CCS, LR, and RINA. This certification guarantees that the valve meets the highest safety and quality standards in the marine industry.
- JIS B2220 Flange Standard Compliance: Adhering to this standard ensures seamless integration with other marine piping systems, enhancing the overall reliability of the vessel’s fluid control.
- Pressure Ratings: Available in both 5K and 10K configurations, the valve can handle different pressure requirements, making it suitable for a wide range of marine applications.
Unparalleled Operational Excellence
- Emergency Shut – Off Capability: Designed specifically for storm conditions, it can quickly and effectively shut off the flow of fluids, preventing potential damage to the vessel and its equipment.
- Reliable Performance in Extreme Marine Environments: It can operate consistently even in harsh conditions such as high winds, waves, and saltwater exposure, ensuring the safety and functionality of the marine system.
- Easy Maintenance and Servicing Access: The valve is designed with easy access for maintenance and servicing, reducing downtime and ensuring that it remains in optimal working condition.
Technical Specifications
Size Range
The valve is available in a size range from DN50 to DN200, catering to different piping requirements on marine vessels.
Pressure Ratings
It comes in two pressure rating series: 5K and 10K, allowing for flexibility in selecting the appropriate valve based on the specific pressure needs of the application.
Flange Standard
The valve strictly complies with the JIS B2220 flange standard, ensuring compatibility with existing marine piping systems.
Applications
It is ideal for storm water management, emergency drainage, and ballast systems on marine vessels, providing reliable fluid control in critical situations.
Detailed Technical Specifications for JIS F3060R Angle Storm Valve
5K Pressure Rating Series
| IMPA Code | Size | H (mm) | D (mm) | C (mm) | Bolt Holes | h (mm) | t (mm) | L1 (mm) | D2 (mm) |
|---|---|---|---|---|---|---|---|---|---|
| 754251 | 050 | 170 | 130 | 105 | 4 | 15 | 14 | 90 | 100 |
| 754252 | 065 | 200 | 155 | 130 | 4 | 15 | 14 | 110 | 100 |
| 754253 | 080 | 220 | 180 | 145 | 4 | 19 | 14 | 120 | 125 |
| 754254 | 100 | 250 | 200 | 165 | 8 | 19 | 14 | 130 | 125 |
| 754255 | 125 | 270 | 235 | 200 | 8 | 19 | 16 | 150 | 125 |
| 754256 | 150 | 340 | 265 | 230 | 8 | 19 | 16 | 170 | 125 |
| 754257 | 200 | 400 | 320 | 280 | 8 | 23 | 22 | 190 | 125 |
10K Pressure Rating Series
| IMPA Code | Size | H (mm) | D (mm) | C (mm) | Bolt Holes | h (mm) | t (mm) | L1 (mm) | D2 (mm) |
|---|---|---|---|---|---|---|---|---|---|
| 754251 | 050 | 170 | 155 | 120 | 4 | 19 | 16 | 90 | 100 |
| 754252 | 065 | 200 | 175 | 140 | 4 | 19 | 18 | 110 | 100 |
| 754253 | 080 | 220 | 185 | 150 | 8 | 19 | 18 | 120 | 100 |
| 754254 | 100 | 250 | 210 | 175 | 8 | 19 | 18 | 130 | 100 |
| 754255 | 125 | 270 | 250 | 210 | 8 | 23 | 20 | 150 | 100 |
| 754256 | 150 | 340 | 280 | 240 | 8 | 23 | 22 | 170 | 100 |
| 754257 | 200 | 400 | 330 | 290 | 12 | 23 | 22 | 190 | 125 |
SEO – Optimized Keywords Integration
High – performance JIS F3060R marine angle storm valve, reliable emergency shut – off valve for marine use, JIS B2220 compliant marine flange valve, heavy – duty shipbuilding storm valve, offshore platform high – safety valve, marine – grade angle valve, large – size DN200 storm valve, IACS – certified marine fluid control valve, cast steel marine safety valve, bronze – disc marine emergency valve, rubber – seated marine drainage valve, essential marine safety equipment, vessel emergency fluid control valve, advanced storm water management valve, marine drainage system valve, classification – society – approved marine valve, ship repair high – pressure valve, marine fluid management valve, IMPA 754251 marine valve, high – pressure marine fluid control valve
Applications & Industries
- Emergency Storm Water Management Systems: It plays a crucial role in quickly controlling the flow of storm water during emergencies, preventing flooding and damage to the vessel.
- Shipbuilding and Vessel Construction: Used in the construction of new vessels to ensure reliable fluid control and safety during operation.
- Offshore Oil and Gas Platforms: Provides essential safety and fluid control functions in the harsh offshore environment, protecting the platform and its equipment.
- Naval and Military Vessels: Meets the high – safety and performance requirements of naval and military vessels, ensuring their operational readiness.
- Ballast and Drainage Systems: Helps in maintaining the proper ballast and drainage of the vessel, ensuring its stability and safety.
- Port and Terminal Infrastructure: Used in port and terminal facilities to manage fluid flow and ensure safety during vessel docking and loading/unloading operations.
- Marine Safety and Emergency Systems: An integral part of marine safety and emergency systems, providing reliable shut – off and fluid control in critical situations.
Quality Assurance & Services
- IACS Certification Documentation: We provide comprehensive IACS certification documentation, giving you confidence in the quality and safety of the valve.
- Sample and Small Quantity Orders: We welcome sample orders and small quantity orders, allowing you to test the valve before making a larger investment.
- 24 – Hour Professional Technical Support: Our team of professional technicians is available 24 hours a day to provide you with timely assistance and support.
- Global Export Operations Team: Our global export operations team ensures smooth and efficient delivery of the valve to your location, no matter where you are in the world.
- Complete Certification Package: We offer a complete certification package, including all necessary documents to meet your regulatory requirements.
- OEM and Custom Solutions: We provide OEM and custom solutions to meet your specific needs and requirements, ensuring that the valve is perfectly suited for your application.
The description/sizes may be different with goods, please check with us when order.
