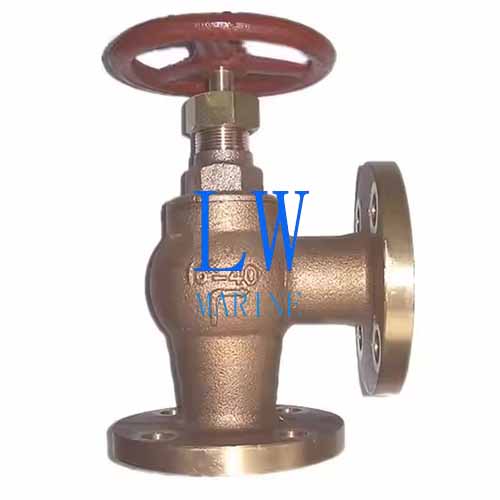

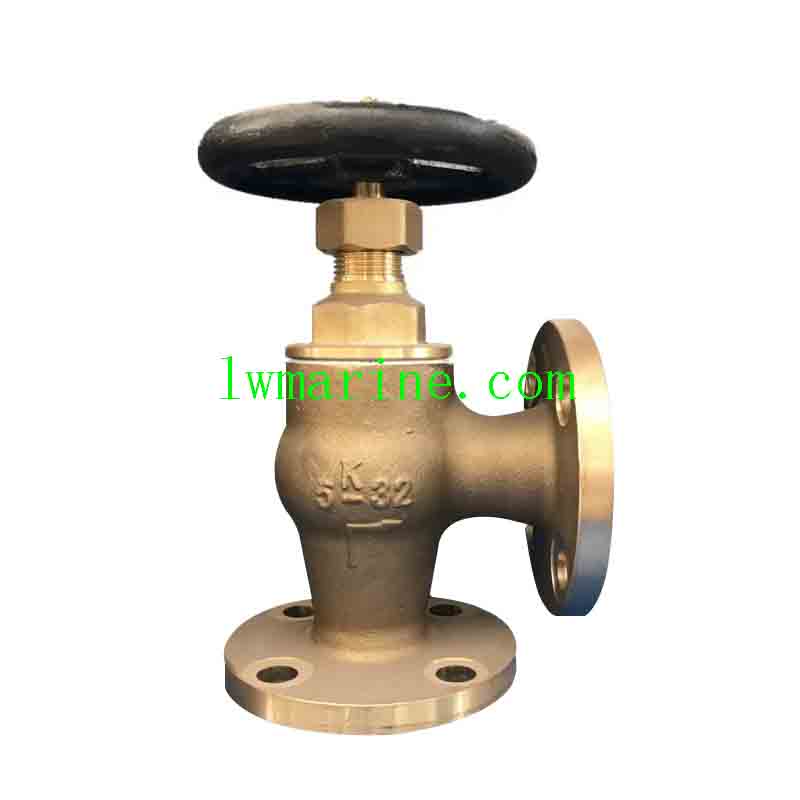

Marine-Grade Angle Globe Valve – Detailed Technical Specifications (Compliant with JIS F7302 5K Standard)
Standards & Certification Overview
✔ Inspection & Testing Standard: Adheres to JIS F7400 for rigorous quality checks
✔ Flange Dimensional Standard: Conforms to JIS B2220 (5K) for precise fitting
✔ Connection Interface Type: Features flanged connections with both raised face (RF) and flat face (FF) options
Technical Specifications Breakdown
| Parameter | Detailed Specification |
|---|---|
| Pressure Rating | Rated at 5K (equivalent to PN10) for reliable pressure handling |
| Size Range | Available in sizes from DN15 (½”) up to DN65 (2½”) for versatile applications |
| Operational Functionality | Designed for both on/off control and flow regulation purposes |
Material Selection for Marine Angle Globe Valve Components
| Component | Material Options | Corresponding Equivalent Standards |
|---|---|---|
| Body/Bonnet | BC6 Bronze or FCD450 Ductile Iron | Meeting JIS H5120 for bronze and JIS G5504 for ductile iron |
| Seat/Disc | Also available in BC6 Bronze or FCD450 Ductile Iron | Aligned with JIS H5120 and JIS G5504 standards respectively |
| Stem | Constructed from H62 Brass or SS410 Stainless Steel | Complying with JIS H3250 for brass and ASTM A276 for stainless steel |
Additional Features & Benefits
- Marine-Grade Durability: Specifically engineered to withstand the harsh conditions of marine environments, ensuring long-lasting performance.
- Precision-Engineered Components: Each part is meticulously crafted to meet exacting standards, guaranteeing optimal functionality and reliability.
- Versatile Application: Suitable for a wide range of marine applications, including but not limited to shipboard plumbing systems, cooling water circuits, and fuel lines.
- Easy Installation & Maintenance: The flanged connection design simplifies installation and facilitates straightforward maintenance procedures.
- Compliance with International Standards: Adheres to globally recognized standards such as JIS, ensuring compatibility and interchangeability with other marine equipment.
The description/sizes may be different with goods, please check with us when order.
