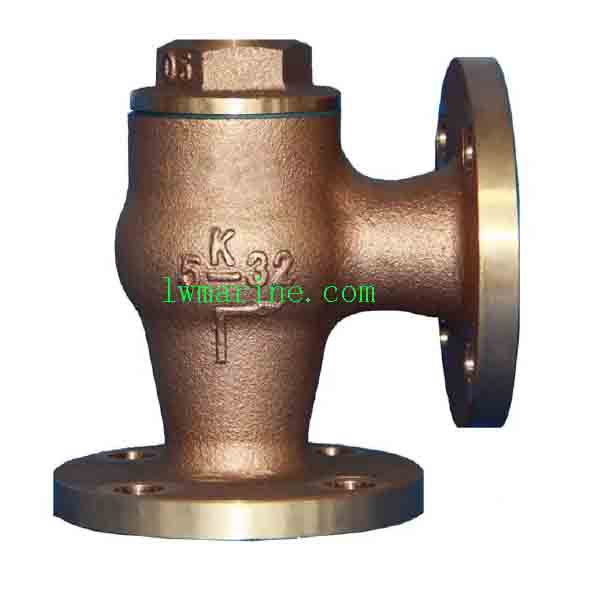

JIS F7416 Marine Bronze Angle Check Valve – 5K Bronze Non-Return Valve for Marine Fuel Systems

Overview

Our JIS F7416 Marine Bronze Angle Check Valve is a high-performance 90-degree angle non-return valve specifically designed for marine fuel oil and lubricating systems. Manufactured to exact Japanese Industrial Standard F7416 specifications, this 5K pressure rated check valve features all-bronze construction for superior corrosion resistance in demanding marine environments. Compliant with JIS B2220 steel pipe flange dimensions, it provides reliable backflow prevention in critical shipboard piping systems while ensuring easy installation and maintenance.

Key Features & Benefits

  • JIS F7416 Standard Compliance: Precision-engineered to Japanese Industrial Standard specifications

  • All-Bronze Construction: Body, disc, and stem manufactured from marine-grade bronze for maximum corrosion resistance

  • 90-Degree Angle Design: Space-saving configuration ideal for complex piping layouts

  • 5K Pressure Rating: Optimal for low to medium pressure applications (50 psi)

  • Automatic Operation: Self-actuating design provides instant response to flow direction changes

  • JIS B2220 Flange Compatibility: Standard flange dimensions ensure perfect system integration

  • Reliable Backflow Prevention: Protects pumps and equipment from reverse flow damage

  • Maintenance-Free Operation: Bronze construction ensures long service life with minimal maintenance

Technical Specifications

  • Design Standard: JIS F7416

  • Flange Standard: JIS B2220

  • Pressure Rating: 5K (50 psi)

  • Temperature Range: -20°C to 200°C

  • Body Material: Marine Bronze (CAC401/BC6)

  • Disc Material: Bronze

  • Stem Material: Bronze

  • Nominal Diameter: DN15 to DN40 (½” to 1½”)

  • Operation: Automatic (Flow-actuated)

  • Media: Fuel Oil, Lubricating Oil, Hydraulic Fluids, Non-corrosive Liquids

Dimension Table (JIS F7416 5K Standard)

IMPA Code Model L L1 D C Bolt Holes h t H H1 D2
751346 7416 5K15 100 55 80 60 4 12 9 66 56 55
751347 7416 5K20 110 60 85 65 4 12 10 71 59 55
751348 7416 5K25 120 65 95 75 4 12 10 81 67 60
751349 7416 5K32 140 80 115 90 4 15 12 83 65 70
751350 7416 5K40 160 85 120 95 4 15 12 91 69 80

The description/sizes may be different with goods, please check with us when order.
