Marine Anchor Windlass with CCS Certification
Our marine anchor windlass, available in 38mm and 17.5-50mm chain diameters, are expertly engineered to meet the rigorous demands of maritime operations. These windlasses are designed with precision and incorporate advanced features to ensure reliable and efficient anchor handling on ships of various sizes. With CCS (China Classification Society) certification, our products adhere to the highest industry standards for safety and performance.
Key Components & Long-Tail Keywords:
- Marine Anchor Windlass: A robust device for raising and lowering anchors on ships, ensuring secure mooring.
- CCS Certified Windlass: Meets the stringent requirements of the China Classification Society for maritime safety.
- Anchor Handling Equipment: Essential for safe and efficient anchor operations in marine environments.

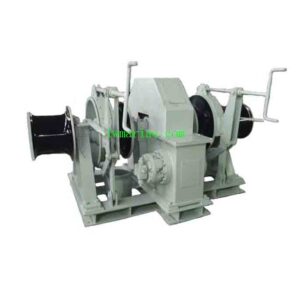

- Electric/Hydraulic Marine Windlass: Available in electric and hydraulic variants, catering to diverse ship requirements.
Additional Long-Tail Keywords:
- High-capacity marine anchor windlass
- CCS-approved anchor handling system
- Electric marine windlass with motor
- Hydraulic marine windlass with pumping station
- Durable marine anchor lifting equipment
Construction & Components:
The marine anchor windlass primarily consists of a sturdy base, a reliable bracket, an anchor sprocket, an effective brake system, a durable sprocket, a high-performance gearbox, and an electric control system (excluding manual windlasses). Electric windlasses are equipped with a powerful electric motor, while hydraulic windlasses feature a robust hydraulic pumping station for seamless operation.
Main Technical Indicators:
- Anchor Chain Diameter: Ranging from 17.5mm to 50mm, catering to various ship sizes and anchor weights.
- Nominal Speed of Anchor: Ensures swift and controlled anchor handling.
- Rated Load & Supporting Load: Designed to withstand heavy loads, providing reliable performance in challenging conditions.
- Number of Shifts: Offers flexibility in operation, adapting to different anchor handling scenarios.
- Electric System: Integrated electric control system for precise and efficient operation (for electric windlasses).
Installation Requirement:
The installation of the anchor windlass on the ship must ensure that the wrap angle of the anchor chain and the sprocket is maintained between 117-120°, optimizing performance and ensuring safety.
Technical Specifications Table:
| Anchor Chain Diameter (mm) | Working Load AM2 (KN) | Working Load AM3 (KN) | Over Loading AM2 (KN) | Over Loading AM3 (KN) | Loading Support AM2 (KN) | Loading Support AM3 (KN) | Nominal Speed (m/min) | Mooring Line Load (KN) |
|---|---|---|---|---|---|---|---|---|
| 17.5 | 13 | 14.6 | 19.5 | 21.9 | 80 | 115 | 9 | 8 |
| 19 | 15.3 | 17.2 | 23 | 25.8 | 95 | 135 | 9 | 10 |
| 20 | 17.9 | 20.0 | 26.9 | 30.0 | 110 | 157 | 9 | 10 |
| 22 | 20.6 | 23 | 30.9 | 34.5 | 126 | 180 | 9 | 15 |
| 24 | 24.5 | 27.4 | 36.8 | 41.1 | 149 | 214 | 9 | 20 |
| 26 | 28.7 | 32.1 | 43.1 | 48.2 | 175 | 250 | 9 | 20 |
| 28 | 33.3 | 37.2 | 50 | 55.8 | 202 | 289 | 9 | 20 |
| 30 | 38.3 | 42.8 | 57.5 | 64.2 | 231 | 330 | 9 | 30 |
| 32 | 43.5 | 48.6 | 65.3 | 72.9 | 261 | 374 | 9 | 30 |
| 34 | 49.1 | 54.9 | 73.3 | 82.4 | 294 | 421 | 9 | 30 |
| 36 | 55.1 | 61.6 | 82.7 | 92.4 | 329 | 470 | 9 | 30 |
| 38 | 61.4 | 68.9 | 92.1 | 103.4 | 365 | 522 | 9 | 40 |
| 40 | 58 | 76 | 102 | 114 | 402 | 576 | 9 | 40 |
| 42 | 75 | 83.8 | 112.5 | 125.7 | 442 | 632 | 9 | 50 |
| 44 | 82.3 | 92 | 123.5 | 138 | 483 | 691 | 9 | 50 |
| 46 | 89.9 | 100.5 | 134.9 | 150.8 | 526 | 753 | 9 | 50 |
| 48 | 97.9 | 109.4 | 146.9 | 164.1 | 570 | 816 | 9 | 50 |
| 50 | 106.3 | 118.8 | 159.5 | 178.2 | 617 | 882 | 9 | 50 |
FAQs:
Q1: What is the significance of CCS certification for marine anchor windlasses?
A1: CCS certification ensures that the marine anchor windlass meets the stringent safety and performance standards set by the China Classification Society, providing peace of mind and reliability in maritime operations.
Q2: Can these windlasses be customized for specific ship requirements?
A2: Yes, our marine anchor windlasses can be customized to meet specific ship requirements, including chain diameter, nominal speed, and rated load, ensuring optimal performance and compatibility.
Q3: What is the difference between electric and hydraulic marine anchor windlasses?
A3: Electric marine anchor windlasses are powered by an electric motor, offering precise control and ease of operation. Hydraulic marine anchor windlasses, on the other hand, utilize a hydraulic pumping station for powerful and efficient anchor handling, suitable for larger ships and heavier anchors.
Q4: How do I ensure the correct installation of the marine anchor windlass on my ship?
A4: The installation must ensure that the wrap angle of the anchor chain and the sprocket is maintained between 117-120°. It is recommended to consult with a professional technician or refer to the installation manual for precise guidance.
Q5: What maintenance is required for marine anchor windlasses?
A5: Regular maintenance, including lubrication of moving parts, inspection of brake systems, and verification of electrical connections (for electric windlasses), is essential to ensure the longevity and reliable performance of marine anchor windlasses.
Attention please: The description was copied from different cooperating manufacturers. The description may be different with the goods, please check with us when order.
