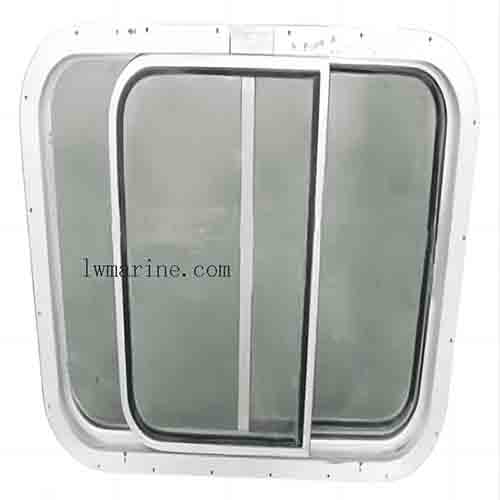

Marine Aluminum Sliding Windows – IACS Certified
High-Performance Sliding Windows for Marine Vessels
Our marine-grade aluminum sliding windows are engineered for superior performance in ship cabins and superstructures above the freeboard deck. These IACS-certified windows combine lightweight durability with exceptional watertightness, making them ideal for commercial vessels, yachts, and offshore applications.
Key Features & Benefits
✔ Space-Saving Sliding Design – Smooth operation without compromising cabin space
✔ Marine-Grade Aluminum Construction – Corrosion-resistant 6000-series alloys
✔ Advanced Watertight Sealing – Neoprene gaskets and special clamping devices
✔ Customizable Configurations – Choose between round or square corners
✔ IACS Certified – Approved by BV, CCS, DNV, ABS, LR, NK, RINA and more
Technical Specifications
| No. | Clear Size (W×H) mm | Frame Size (W1×H1×R) mm | Cutout (W3×H3×R3) mm | Glass Size (W4×H4×R4) mm | Weight (kg) |
|---|---|---|---|---|---|
| 1 | 740×500 | 825×588×94 | 890×650×125 | 373×518×58 | 20.0 (t=8) |
| 2 | 830×560 | 918×648×94 | 980×710×125 | 418×578×58 | 21.9 |
| 3 | 930×630 | 1018×718×144 | 1080×780×175 | 468×648×108 | 24.8 |
| 4 | 1030×710 | 1118×798×144 | 1180×860×175 | 518×728×108 | 28.0 |
| 5 | 500×630 | 650×780×125 | 650×780×125 | 253×648×58 | 18.6 |
| 6 | 600×710 | 750×860×125 | 750×860×125 | 303×728×58 | 21.5 |
| 7 | 750×800 | 900×950×125 | 900×950×125 | 378×818×58 | 25.6 |
Additional Features:
-
Tempered safety glass (6mm or 8mm thickness options)
-
Thermal break technology available
-
Powder-coated finishes in various colors
-
Optional insect screens
The description/sizes may be different with goods, please check with us when order.
