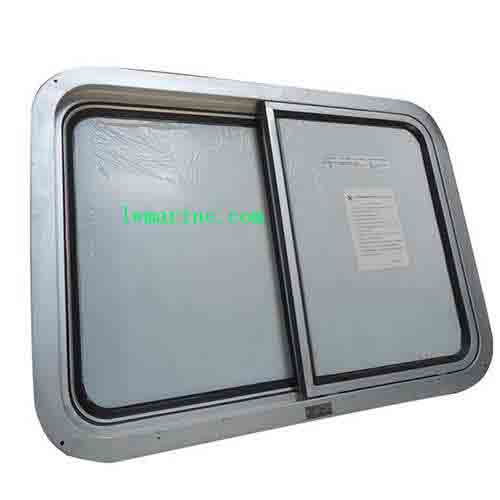

Marine-Grade Aluminum Sliding Window – Premium Ventilation Solution
High-Performance Sliding Windows for Ships & Marine Vessels
Our marine aluminum sliding window provides superior ventilation and weather protection for all types of marine applications. Engineered with heavy-duty aluminum frames and tempered safety glass, these hingeless sliding windows offer smooth operation in both horizontal and vertical configurations, making them ideal for cabins, wheelhouses, and superstructures.
Key Features & Benefits
✔ Marine-Grade 6061-T6 Aluminum – Ultimate corrosion resistance in saltwater environments
✔ Dual-Direction Sliding – Left-right or up-down movement options
✔ Safety Tempered Glass – 6-10mm thickness with clear/tinted options
✔ Watertight Design – Triple-sealed gaskets meet IP56 standards
✔ Easy Maintenance – Self-cleaning tracks prevent debris buildup
Technical Specifications
| Clear Size (W×H) mm | Window Seat Size (W1×H1×R1) mm | Cutout Size (W3×H3×R2) mm | Glass Thickness (mm) | Bolt Qty. | Max. Pressure (kPa) | Weight (kg) |
|---|---|---|---|---|---|---|
| 740×500 | 828×588×94 | 840×600×100 | 6 | 8 | 45 | 20 |
| 830×560 | 918×648×94 | 930×660×100 | 6 | 8 | 36 | 21 |
| 930×630 | 1018×718×144 | 1030×730×150 | 6 | 8 | 28 | 24 |
| 1030×710 | 1118×798×144 | 1130×810×150 | 6 | 8 | 23 | 28 |
| 500×630 | 588×798×94 | 600×730×100 | 6 | 8 | 66 | 18 |
| 600×710 | 688×798×94 | 700×810×100 | 6 | 8 | 46 | 21 |
| 750×800 | 900×950×125 | 850×900×100 | 6 | 8 | 30 | 25 |
The description/sizes may be different with goods, please check with us when order.
